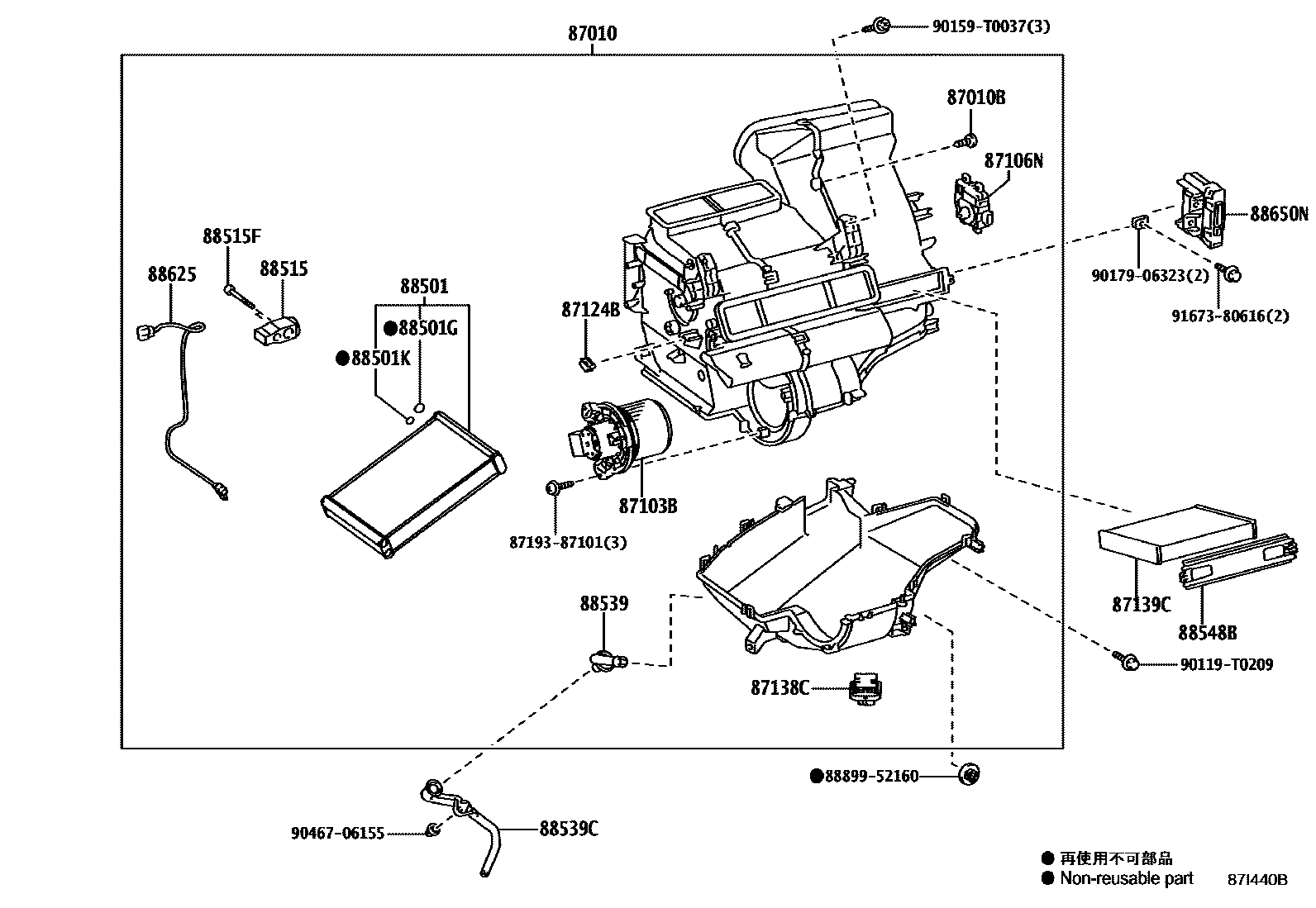

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL BOOST VENTILATOR 0002 1AUTO BOOST VENTILATOR

87010UNIT ASSY, AIR CONDITIONER

main87010-0DG70iNSP151201911-202405

main87010-0DP50iNSP150201911

87010BSCREW(FOR AIR CONDITIONER UNIT)

main90099-00968iNSP151201911-202405

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D320iNSP151201911-202405

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-0D300iNSP151201911-202405

main87106-0D470iNSP150201911

87124BCLAMP, HEATER

main87124-0D180iNSP150201911

87138CRESISTOR, BLOWER

main87138-0D090iNSP150201911

87139CFILTER, CLEAN AIR

main87139-0D130iNSP150201911-202405

STANDARD,OE PART

main87139-50100iNSP151201911-202405

POLLEN DEODORANT

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D540iNSP151201911-202405

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iNSP151201911-202405

ID=13.4,OD=18.2

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iNSP150201911-202405

ID=10.8,OD=15.6

88515VALVE, COOLER EXPANSION

main88515-0D600iNSP151201911-202405

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04630iNSP151201911-202405

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D320iNSP151201911-202405

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-0D370iNSP150201911-202405

88548BCASE, AIR FILTER

main88548-0D190iNSP150201911-202405

88625THERMISTOR, COOLER, NO.1

main88620-0D080iNSP150201911

main88620-0D370iNSP151201911-202405

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0D770iNSP150201911

main88650-0D790iNSP151201911-202405

8719387101

main87193-87101

8889952160COVER, EVAPORATOR

main88899-52160

90119T0209

main90119-T0209

90159T0037

main90159-T0037

9017906323

main90179-06323

9046706155

main90467-06155

9167380616

main91673-80616

24 parts on this diagram · 2 diagrams in section
