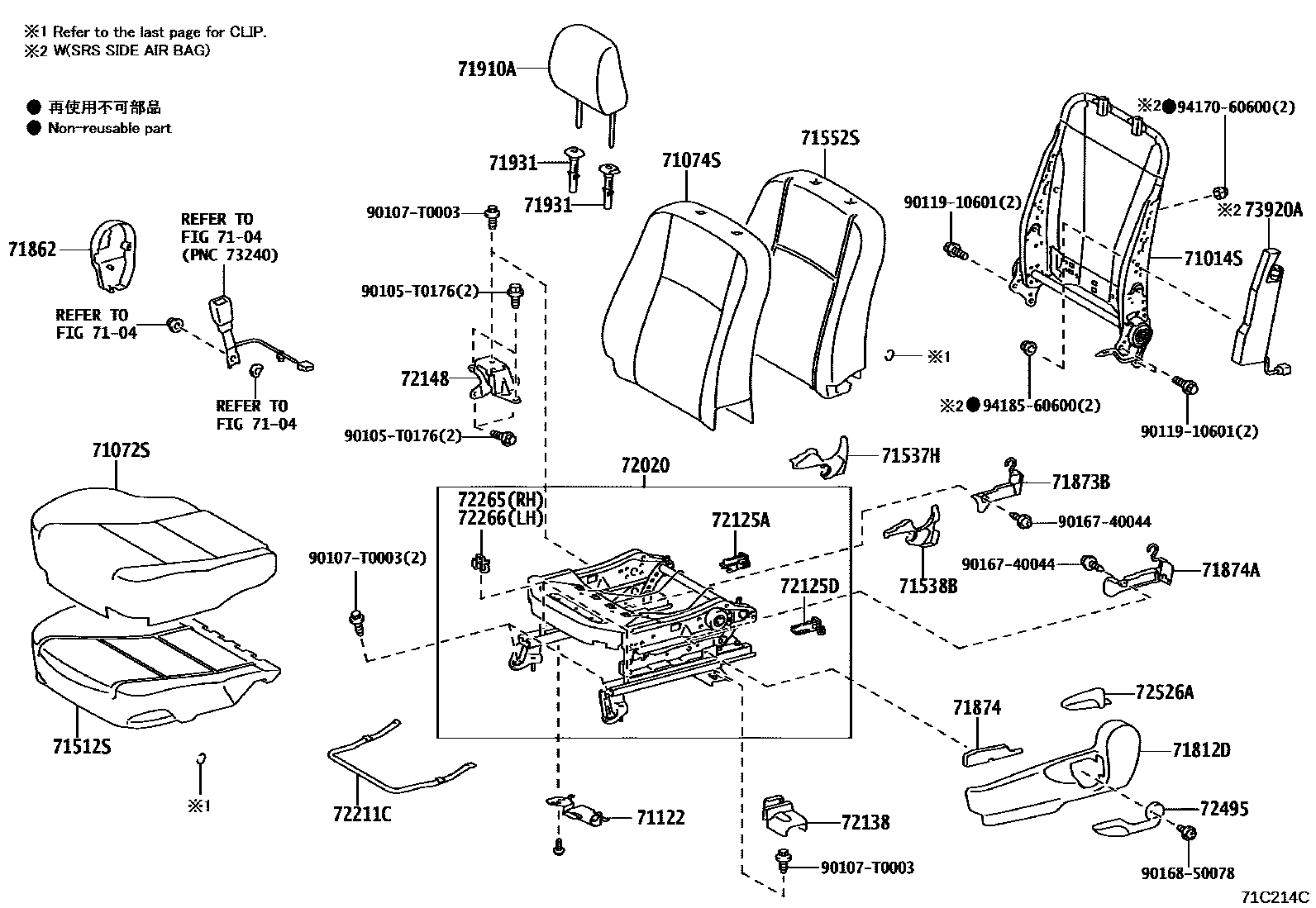

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
7104
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK/BLUE 125,TRIM2#
BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE(*DRS ONLY)),BLACK/BLUE 125,TRIM2#
BLACK/BLUE 125,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM2#
71122BRACKET, FRONT SEAT CUSHION, LH
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
BLACK,TRIM20
BLACK,TRIM2#
BLACK,TRIM23
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
BLACK,TRIM2#
BLACK,TRIM20
BLACK,TRIM23
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
SRS AIR BAG-W(*DRP & SIDE & *CUSA & KNEE(*DRS ONLY))
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM20
BLACK,TRIM23
71862SHIELD, FRONT SEAT CUSHION, INNER LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK,TRIM20
BLACK,TRIM23
71873BSHIELD, FRONT SEAT CUSHION, LOWER RH, NO.1
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
71910AHEADREST ASSY, FRONT SEAT
BLACK,TRIM2#
BLACK/BLUE,TRIM2#
BLACK/LT.GRAY,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM20
W/O(LOCK),BLACK,TRIM2#
W/O(LOCK),BLACK,TRIM23
72020ADJUSTER ASSY, FRONT SEAT, LH
72125ACOVER, SEAT TRACK, UPPER REAR
72125DCOVER, SEAT TRACK, UPPER REAR NO.2
72138COVER, SEAT TRACK, OUTER LH
BLACK,TRIM2#
BLACK,TRIM20
BLACK,TRIM23
72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH
72211CHANDLE, SEAT TRACK ADJUSTING
72265COVER, SEAT TRACK UPPER RAIL, RH
72266COVER, SEAT TRACK UPPER RAIL, LH
72495HANDLE, VERTICAL ADJUSTING, LH
BLACK,TRIM20
BLACK,TRIM2#
BLACK,TRIM23
72526AHANDLE, RECLINING ADJUSTER RELEASE, LH
73920AAIRBAG ASSY, FRONT SEAT, LH
90105T0176
main90105-T0176
90107T0003
main90107-T0003
9011910601
main90119-10601
9016740044
main90167-40044
9016850078
main90168-50078
9417060600
main94170-60600
9418560600
main94185-60600
34 parts on this diagram · 3 diagrams in section
