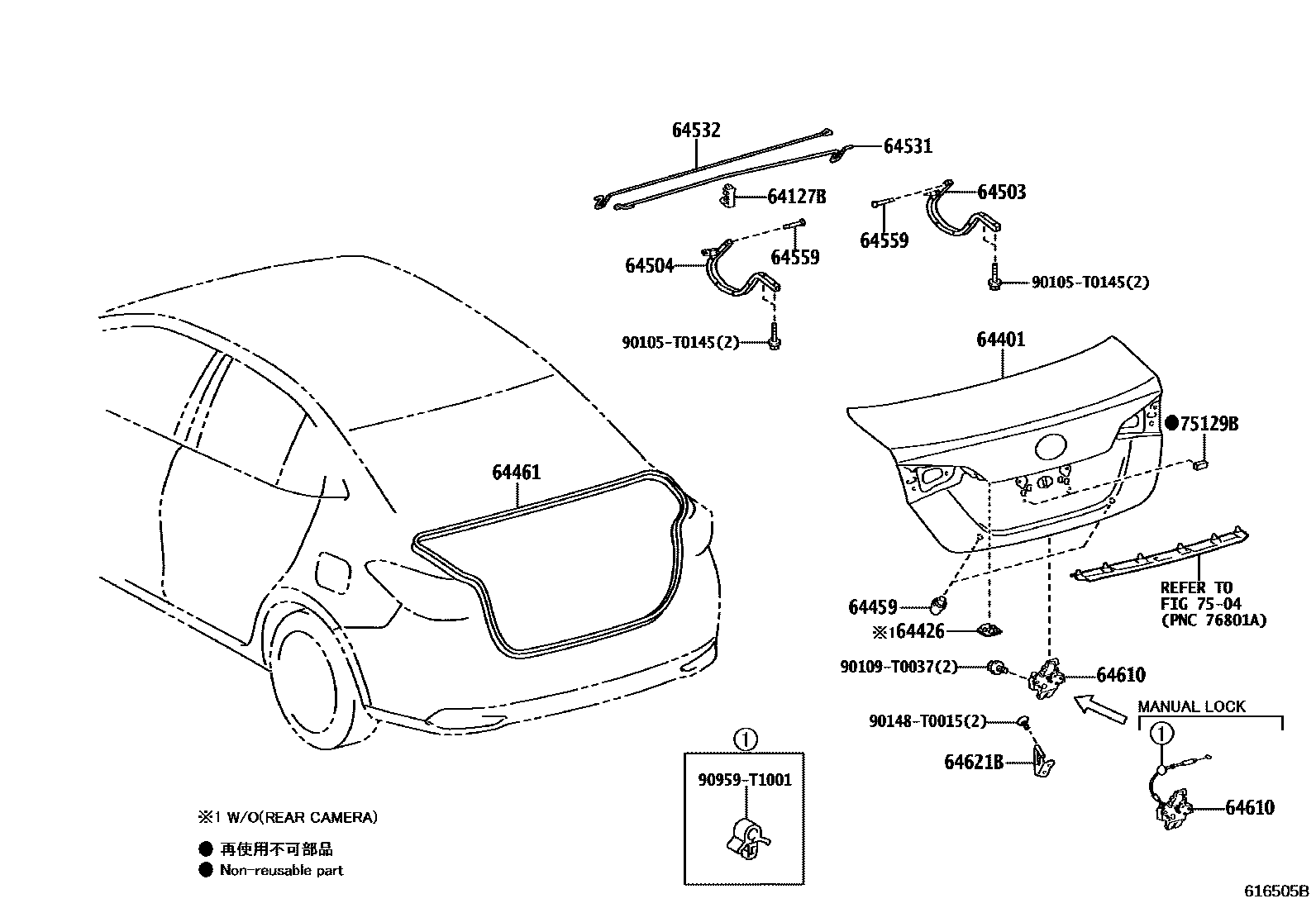

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1LUGGAGE COMPARTMENT DOOR 0002 1LUGGAGE DOOR LOCK CONTROL CAB

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D060iNSP151201911-202405

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D180iNSP151201911-202405

main64401-0D590iNSP150..D201911

main64401-0D670iNSP150..R201911

64426PLUG, LUGGAGE COMPARTMENT DOOR, LH

main64426-0D010iNSP151201911-202405

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069iNSP151¥170201911-202405

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D210iNSP151201911-202405

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-0D090iNSP151201911-202405

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-0D090iNSP151201911-202405

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D300iNSP151201911-202405

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D290iNSP150201911-202405

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iNSP150¥100201911-202405

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-0D040iNSP151201911-202405

main64610-0D130iNSP150..D201911

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06080iNSP151201911-202405

7504

75129BCUSHION, REAR LICENCE PLATE

main75129-0D030iNSP151201911-202405

90105T0145

main90105-T0145

90109T0037

main90109-T0037

90148T0015

main90148-T0015

90959T1001

main90959-T1001

18 parts on this diagram · 2 diagrams in section
