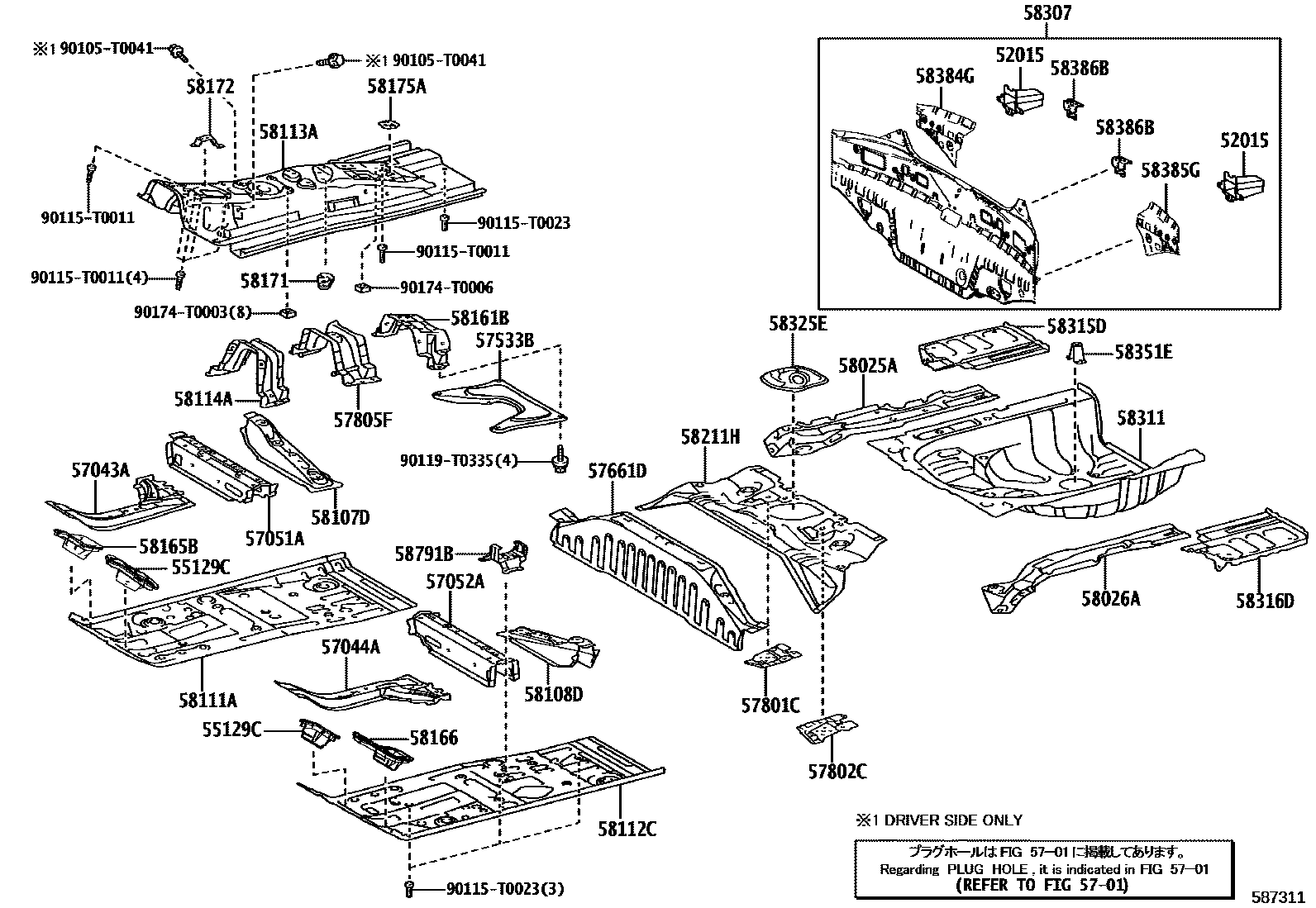

FLOOR PAN & LOWER BACK PANEL
52015ARM SUB-ASSY, REAR BUMPER
55129CCOVER, DASH PANEL HOLE
RH
LH
5701
57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH
57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH
57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57533BBRACE, FRONT FLOOR, CENTER
57661DMEMBER, REAR FLOOR CROSS, FRONT
57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH
57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH
57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1
58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH
58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH
58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH
58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH
58111APAN, FRONT FLOOR, RH
58112CPAN, FRONT FLOOR, LH
58113APANEL, FRONT FLOOR, CENTER
58114AREINFORCEMENT, FRONT FLOOR PANEL
58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN
58165BCOVER, FRONT FLOOR, RH
58166COVER, FRONT FLOOR, LH
58171REINFORCEMENT, PARKING BRAKE BASE
58172BRACKET, COMPUTER MOUNTING, NO.3
58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1
58211HPAN, CENTER FLOOR
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58315DEXTENSION, REAR FLOOR PAN, RH
58316DEXTENSION, REAR FLOOR PAN, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58351EBRACKET, SPARE WHEEL CLAMP
58384GGUSSET, LOWER BACK, UPPER RH
58385GGUSSET, LOWER BACK, UPPER LH
58386BBRACKET, REAR BUMPER COVER, NO.2
90105T0041
main90105-T0041
90115T0011
main90115-T0011
90115T0023
main90115-T0023
90119T0335
main90119-T0335
90174T0003
main90174-T0003
90174T0006
main90174-T0006
43 parts on this diagram · 1 diagram in section
