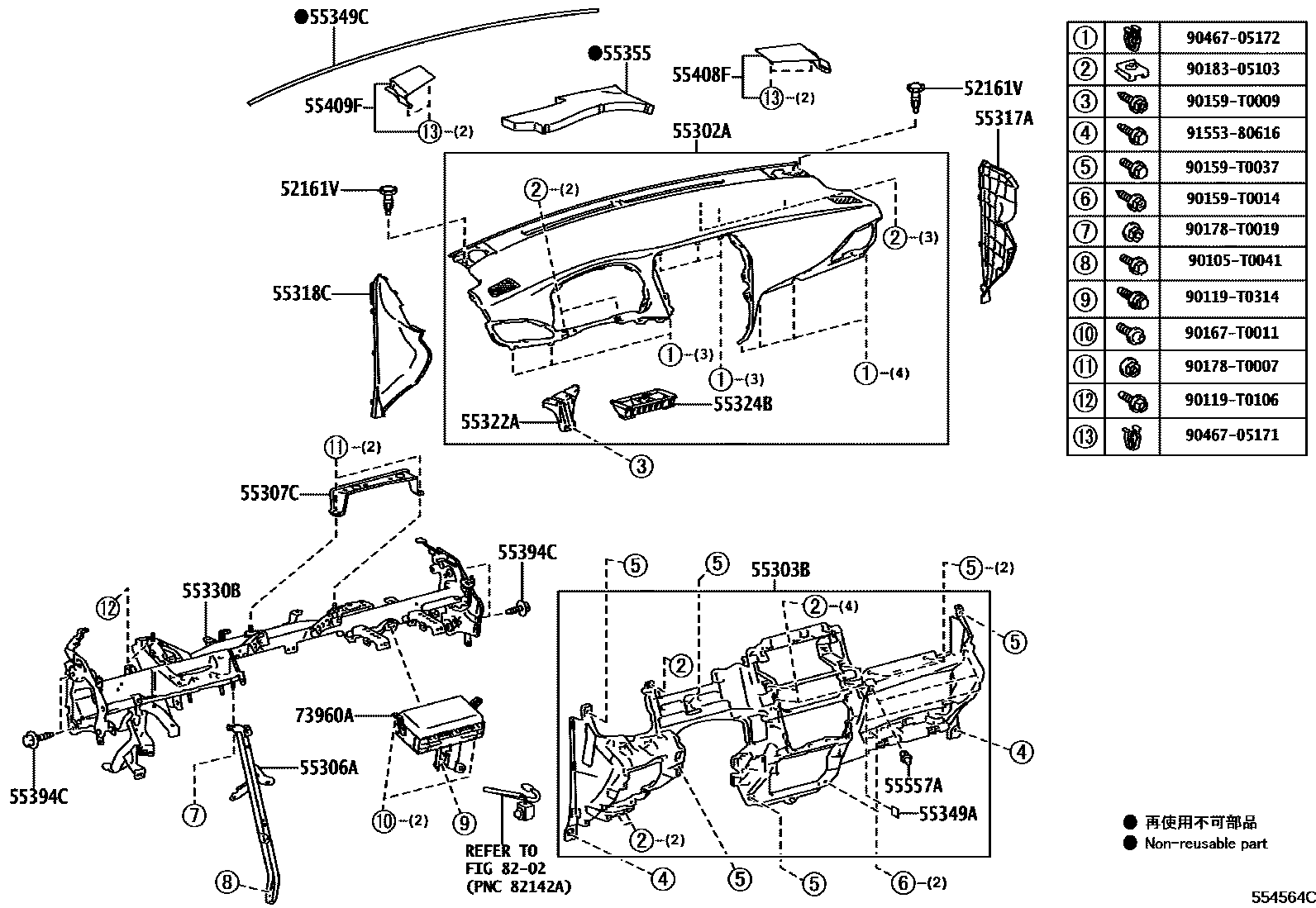

INSTRUMENT PANEL & GLOVE COMPARTMENT
52161VPIECE, INSTRUMENT PANEL
55302APANEL SUB-ASSY, INSTRUMENT, UPPER
BLACK,TRIM2#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM2#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55317APANEL, INSTRUMENT SIDE, RH
BLACK,TRIM2#
55318CPANEL, INSTRUMENT SIDE, LH
BLACK,TRIM2#
55322ABRACKET, INSTRUMENT PANEL, NO.2
55324BBRACKET, INSTRUMENT PANEL, NO.4
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55349ACUSHION, INSTRUMENT PANEL
55349CCUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55394CBOLT, INSTRUMENT PANEL
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
BLACK,TRIM2#
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
BLACK,TRIM2#
55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
90105T0041
main90105-T0041
90119T0106
90119T0314
main90119-T0314
90159T0009
main90159-T0009
90159T0014
main90159-T0014
90159T0037
main90159-T0037
90167T0011
90178T0007
90178T0019
main90178-T0019
9018305103
9046705171
9046705172
9155380616
32 parts on this diagram · 4 diagrams in section
