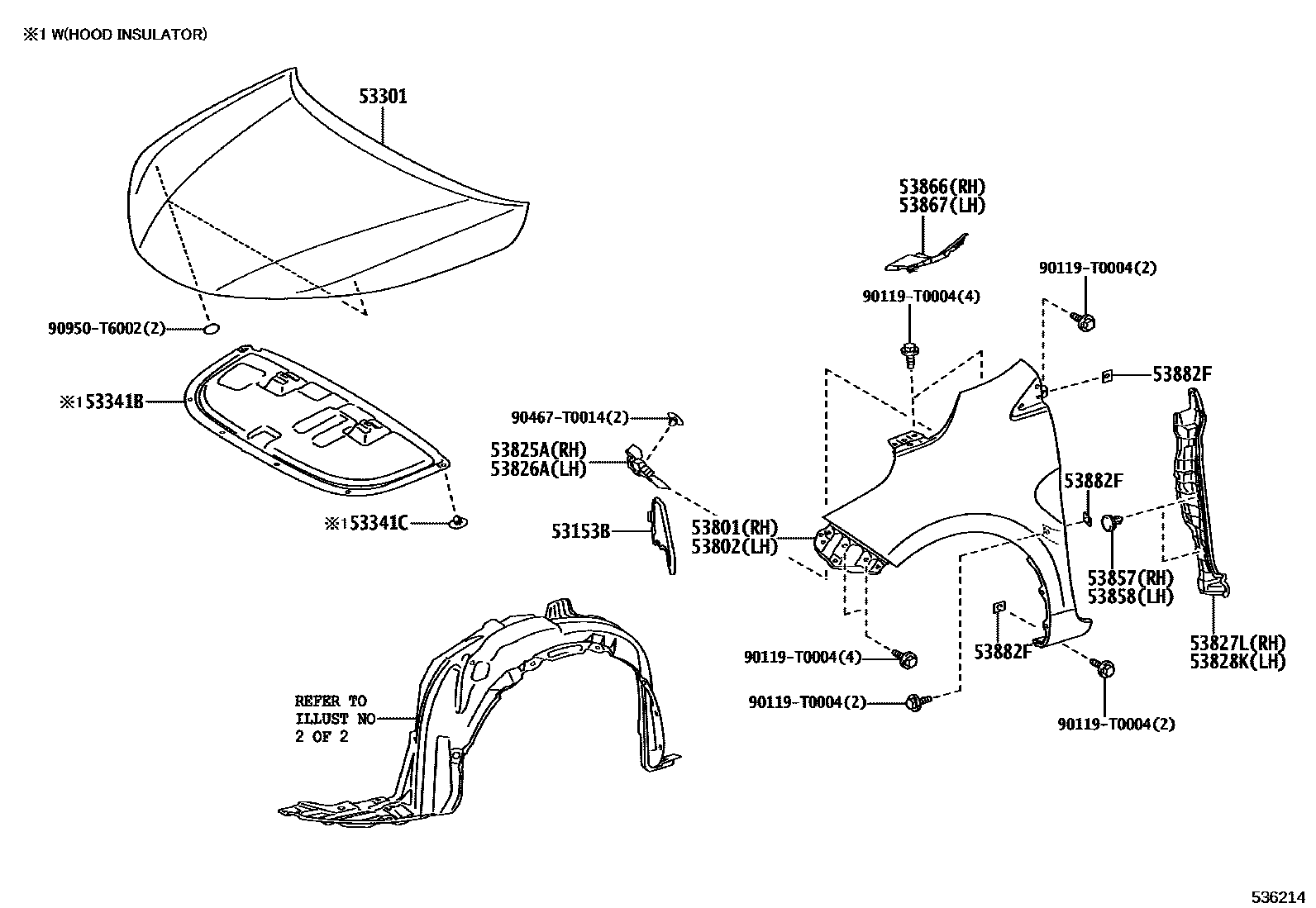

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153BGUIDE, FRONT SIDE AIR

main53153-0D040iNSP15#201911-202405

main53153-0D100iNSP15#202002-202109

sub53153-0D040

53301HOOD SUB-ASSY

main53301-0D350iNSP150201911-202405

53341BINSULATOR, HOOD

main53341-0D340iNSP151201911-202405

53341CCLIP(FOR HOOD INSULATOR)

main90467-T0014iNSP151201911-202405

53801FENDER SUB-ASSY, FRONT RH

main53801-0D170iNSP150201911

main53801-0D180iNSP151201911-202405

53802FENDER SUB-ASSY, FRONT LH

main53802-0D170iNSP150201911

main53802-0D180iNSP151201911-202405

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-0D040iNSP151201911-202405

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-0D040iNSP151201911-202405

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D211iNSP151201911-202405

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D211iNSP151201911-202405

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-0K010iNSP151201911-202405

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-0K010iNSP150201911-202405

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D240iNSP151201911-202405

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D240iNSP151201911-202405

53882FSEAL, FRONT FENDER

main53882-0K020iNSP151201911-202405

90119T0004

main90119-T0004

90467T0014

main90467-T0014

90950T6002

main90950-T6002

18 parts on this diagram · 2 diagrams in section
