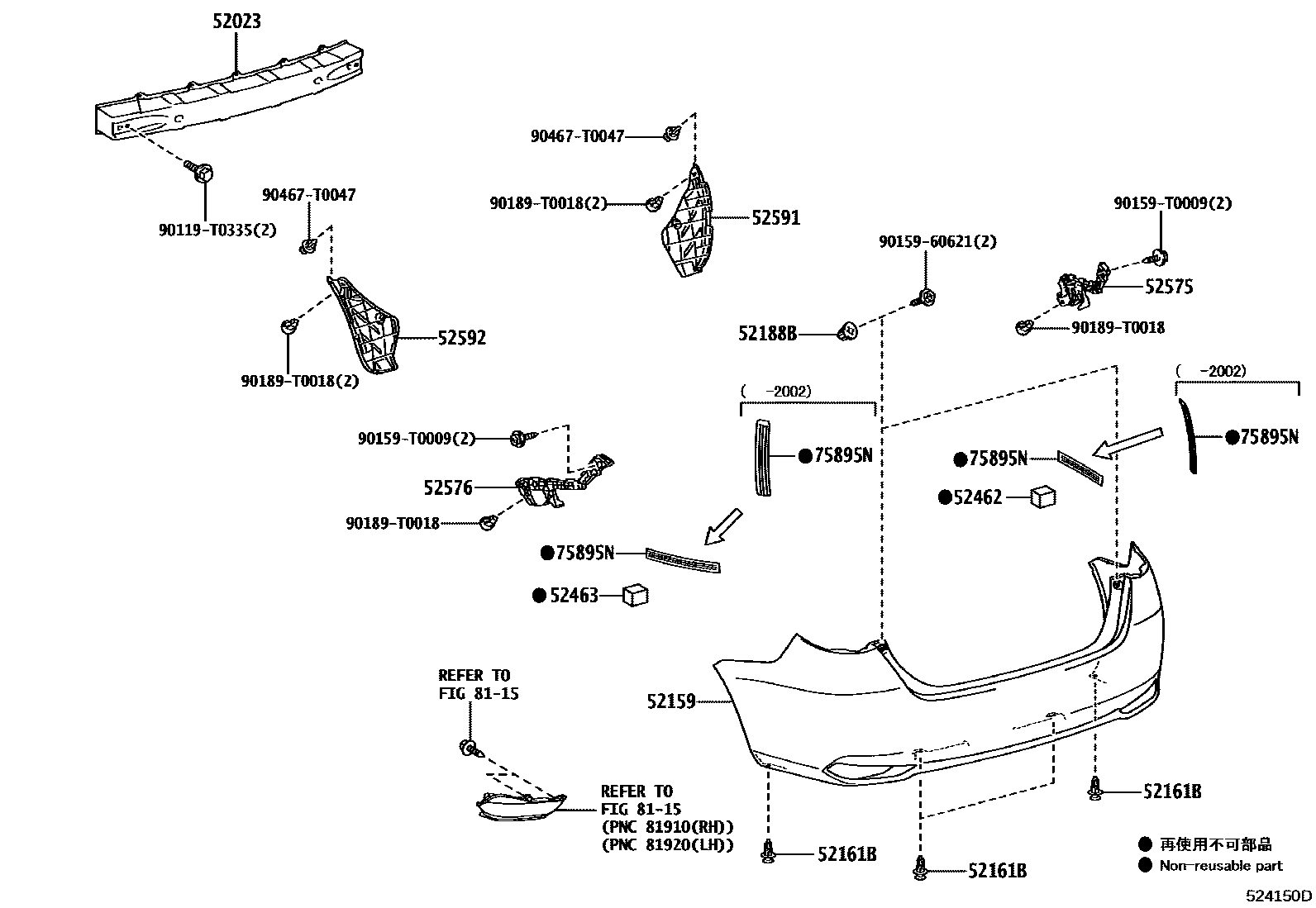

REAR BUMPER & BUMPER STAY

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-0D090iNSP150201911-202405

52159COVER, REAR BUMPER

main52159-0U935iNSP15#201911-202002

PAINT REQ.

sub52159-0U959

sub75895-53010

main52159-0U959iNSP151202002-202405

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-0K040iNSP150201911-202405

52188BSPACER, REAR BUMPER MOUNTING

main52188-33040iNSP151201911-202405

52462PAD, REAR BUMPER, RH

main52462-0D020iNSP151202002-202405

main52462-0D110iNSP15#201911-202001

sub52462-0D020

52463PAD, REAR BUMPER, LH

main52462-0D020iNSP151202002-202405

main52462-0D110iNSP15#201911-202001

sub52462-0D020

52575RETAINER, REAR BUMPER SIDE, RH

main52575-0D260iNSP151201911-202405

52576RETAINER, REAR BUMPER SIDE, LH

main52576-0D460iNSP151201911-202405

52591SEAL, REAR BUMPER SIDE, RH

main52591-0D400iNSP150201911-202405

52592SEAL, REAR BUMPER SIDE, LH

main52592-0D400iNSP151201911-202405

75895NTAPE, MOULDING, NO.1

main75895-28010iNSP15#201911-202002

main75895-53010iNSP151202002-202405

8115

90119T0335

main90119-T0335

9015960621

main90159-60621

90159T0009

main90159-T0009

90189T0018

main90189-T0018

90467T0047

main90467-T0047

17 parts on this diagram · 1 diagram in section
