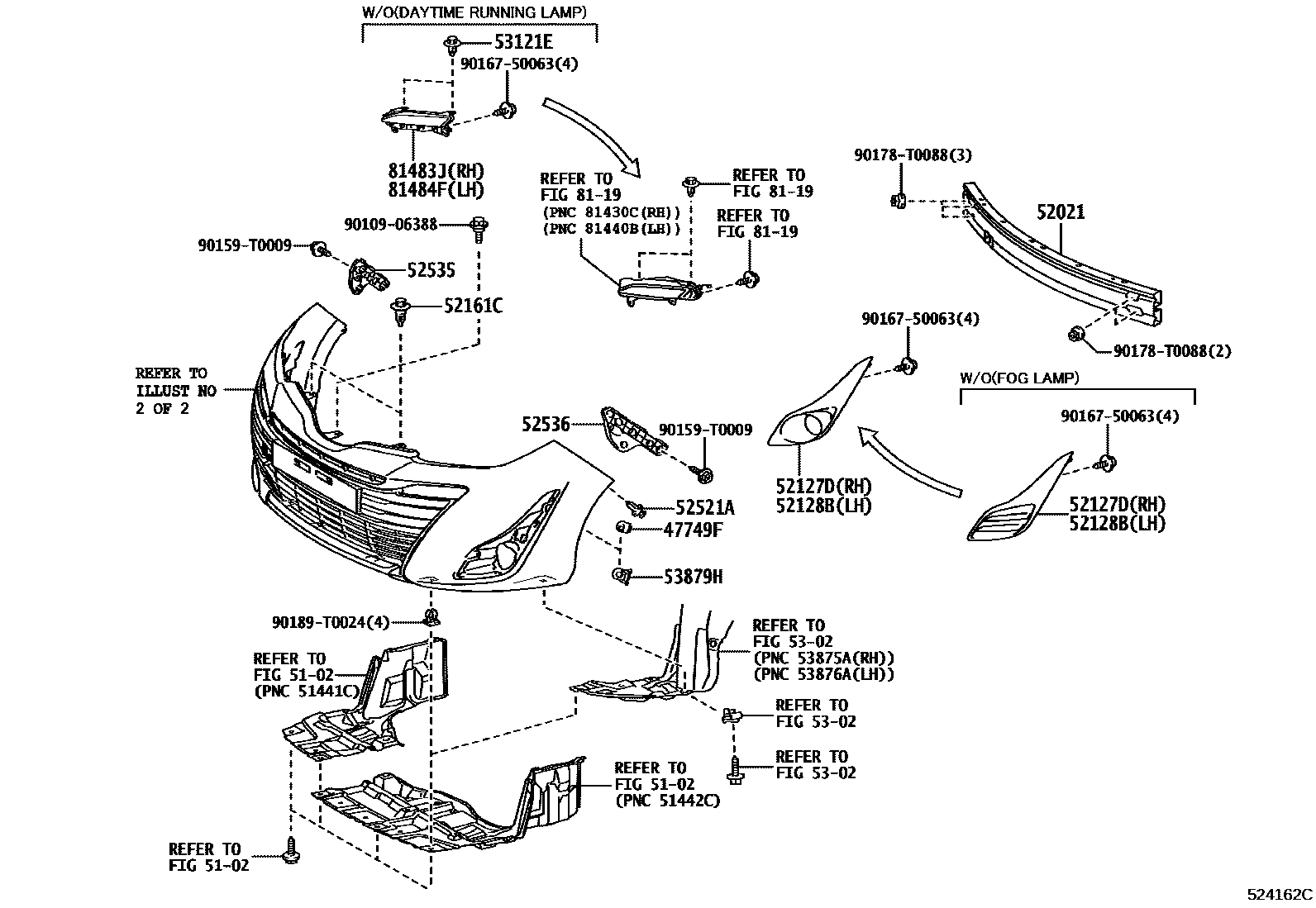

FRONT BUMPER & BUMPER STAY

0001 1 0002 1MLM PACKAGE 0003 1 0004 1MLM PACKAGE

47749FCLIP, PIN HOLD

main47749-33030iNSP151201911-202405

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D140iNSP151201911-202405

52127DCOVER, FRONT BUMPER HOLE, RH

main52127-0D760iNSP150..D201911

MLM PACKAGE

main52127-0D770iNSP151201911-202405

main52127-0D770iNSP150..R201911

MLM PACKAGE

52128BCOVER, FRONT BUMPER HOLE, LH

main52128-0D520iNSP150..D201911

MLM PACKAGE

main52128-0D530iNSP150..R201911

MLM PACKAGE

main52128-0D530iNSP151201911-202405

52161CPIECE, FRONT BUMPER

main52161-0K040iNSP151201911-202405

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170iNSP15#201911-202104

main90467-T0047iNSP151202104-202405

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D230iNSP150201911-202405

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D230iNSP151201911-202405

5302

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-05063-C0iNSP151201911-202405

BLACK

sub90467-05063

main90467-05063-C0iNSP150201911

MLM PACKAGE,BLACK

sub90467-05063

53879HRETAINER, FRONT FENDER LINER

main53879-33030iNSP151201911-202405

8119

81483JCOVER, DAYTIME RUNNING LAMP, RH

main81483-0D030iNSP150201911

MLM PACKAGE

81484FCOVER, DAYTIME RUNNING LAMP, LH

main81484-0D010iNSP150201911

MLM PACKAGE

9010906388

main90109-06388

90159T0009

main90159-T0009

9016750063

main90167-50063

90178T0088

main90178-T0088

90189T0024

main90189-T0024

20 parts on this diagram · 4 diagrams in section
