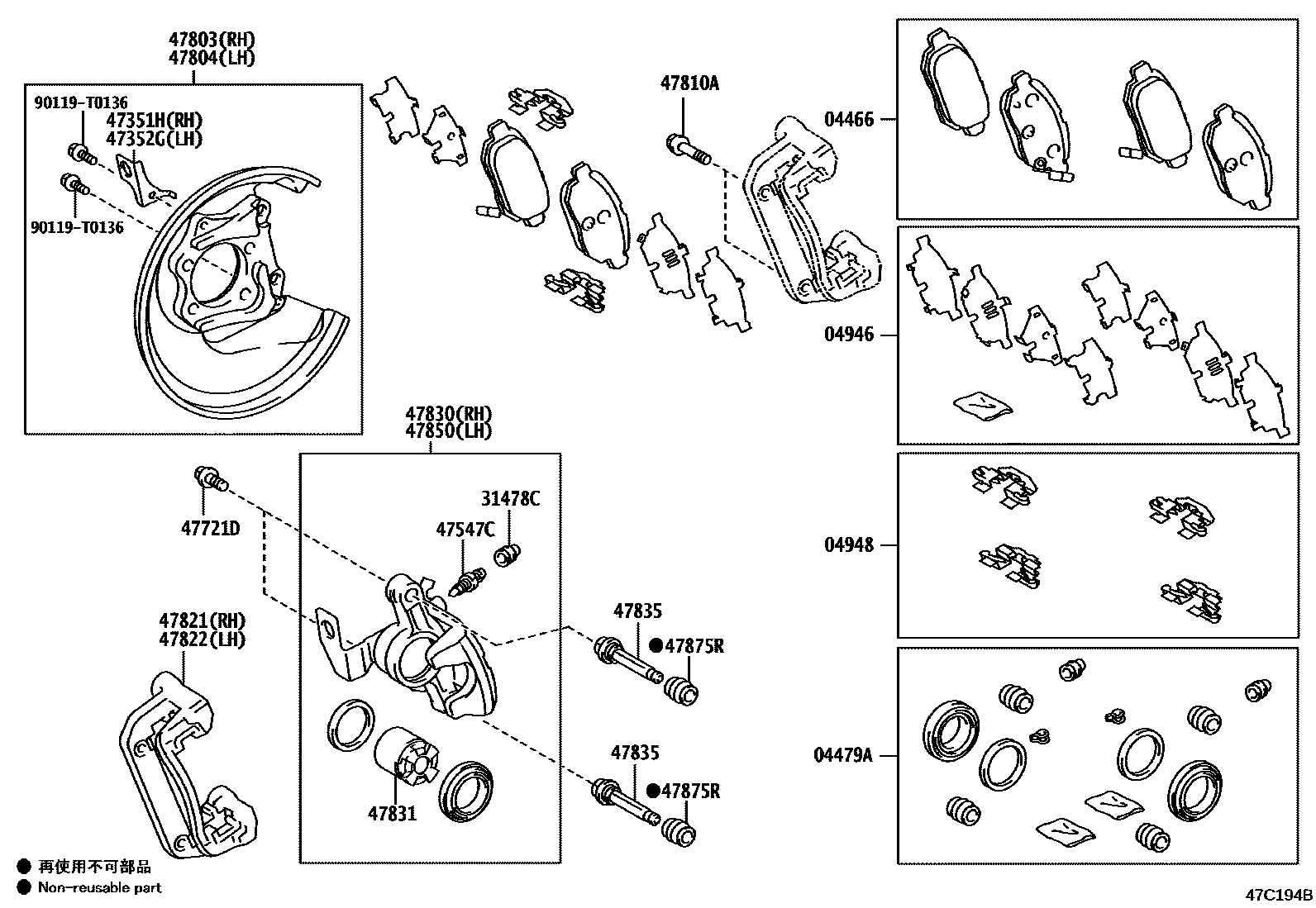

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-52170iNSP151¥6,100201911-202405

MARK NBK D6247

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-52250iNSP151201911-202405

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-52080iNSP151¥620201911-202405

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iNSP151¥1,040201911-202405

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iNSP151¥160201911-202405

47351HBRACKET, FLEXIBLE HOSE, RH

main47351-0D160iNSP151201911-202405

47352GBRACKET, FLEXIBLE HOSE, LH

main47352-0D130iNSP151201911-202405

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iNSP151¥220201911-202405

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA102iNSP151¥90201911-202405

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47803-0D040iNSP151201911-202405

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47804-0D040iNSP151201911-202405

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-T0180iNSP151201911-202405

47821MOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12151iNSP151¥5,200201911-202405

47822MOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12151iNSP151¥5,200201911-202405

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-52200iNSP151201911-202405

47831PISTON, REAR DISC BRAKE

main47831-52090iNSP151¥670201911-202405

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iNSP151¥400201911-202405

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-52200iNSP151¥26,100201911-202405

47875RBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iNSP151¥220201911-202405

90119T0136

main90119-T0136

20 parts on this diagram · 1 diagram in section
