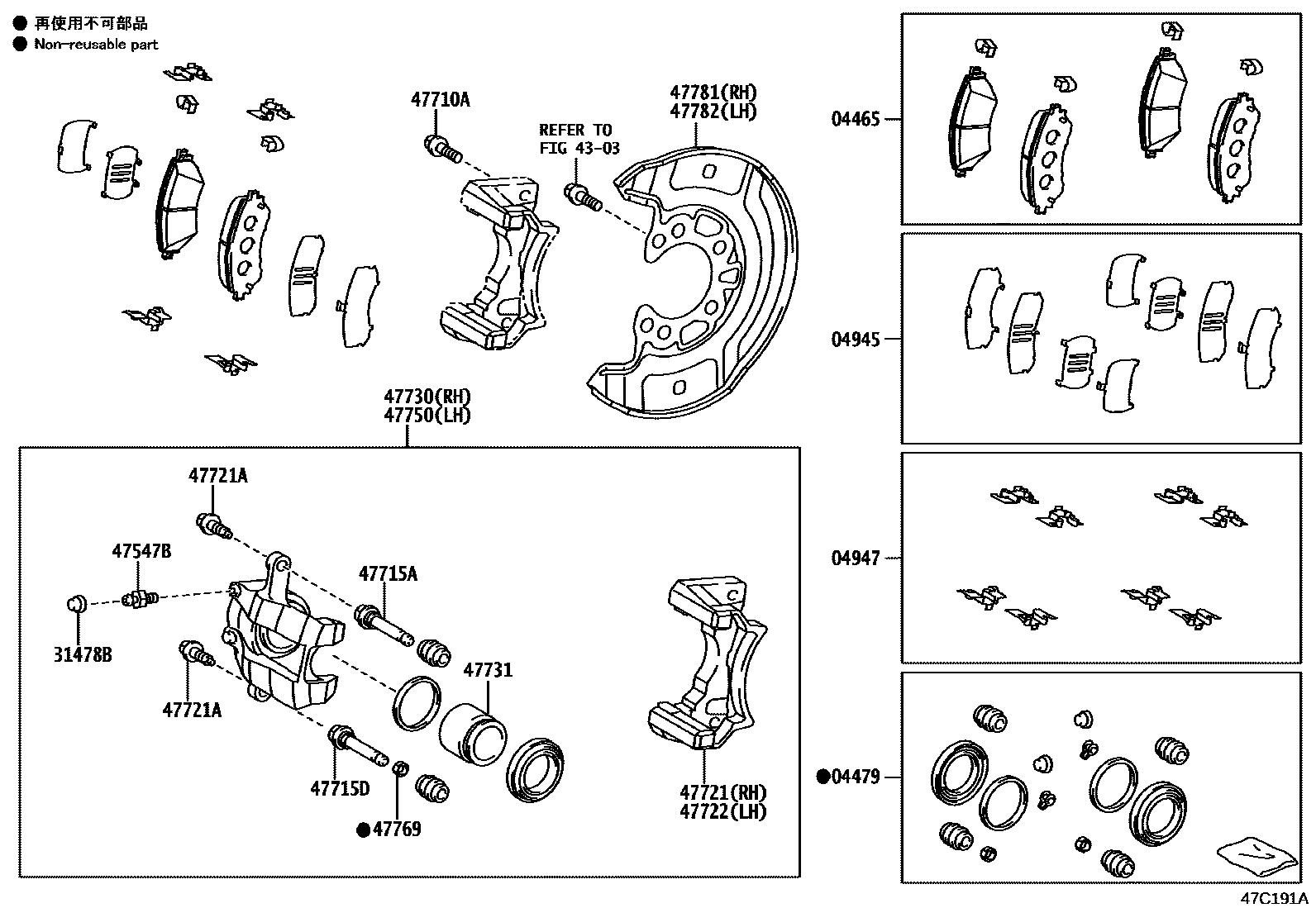

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D130iNSP151201911-202405

MARK ADVICS PV565H

main04465-0D150iNSP150201911

MARK AK PA563H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D181iNSP151201911-202405

main04478-0D191iNSP150201911-202310

sub04478-0D192

main04478-0D192iNSP150202310

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-0D070iNSP151201911-202405

main04945-0D080iNSP150201911

04947FITTING KIT, DISC BRAKE, FRONT

main04947-0D030iNSP151201911-202405

main04947-0D040iNSP150201911

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D040iNSP151201911-202405

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-0D030iNSP151201911-202209

(L)

main47547-0D030iNSP150201911-202310

main47547-20010iNSP151202209-202405

(J)

main47547-20010iNSP150202310

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-T0186iNSP151201911-202405

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-0D230iNSP150201911

main47714-0K220iNSP151201911-202405

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-0K220iNSP151201911-202405

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D220iNSP150201911

main47721-0D250iNSP151201911-202405

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90016-AA603iNSP151201911-202405

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-0D210iNSP150201911

main47722-0D240iNSP151201911-202405

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D220iNSP150201911

main47730-0D250iNSP151201911-202405

47731PISTON, FRONT DISC BRAKE

main47731-0D110iNSP151201911-202405

main47731-0D220iNSP150201911

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D210iNSP150201911

main47750-0D240iNSP151201911-202405

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-0K220iNSP151201911-202405

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D150iNSP151201911-202405

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-0D150iNSP151201911-202405

19 parts on this diagram · 2 diagrams in section
