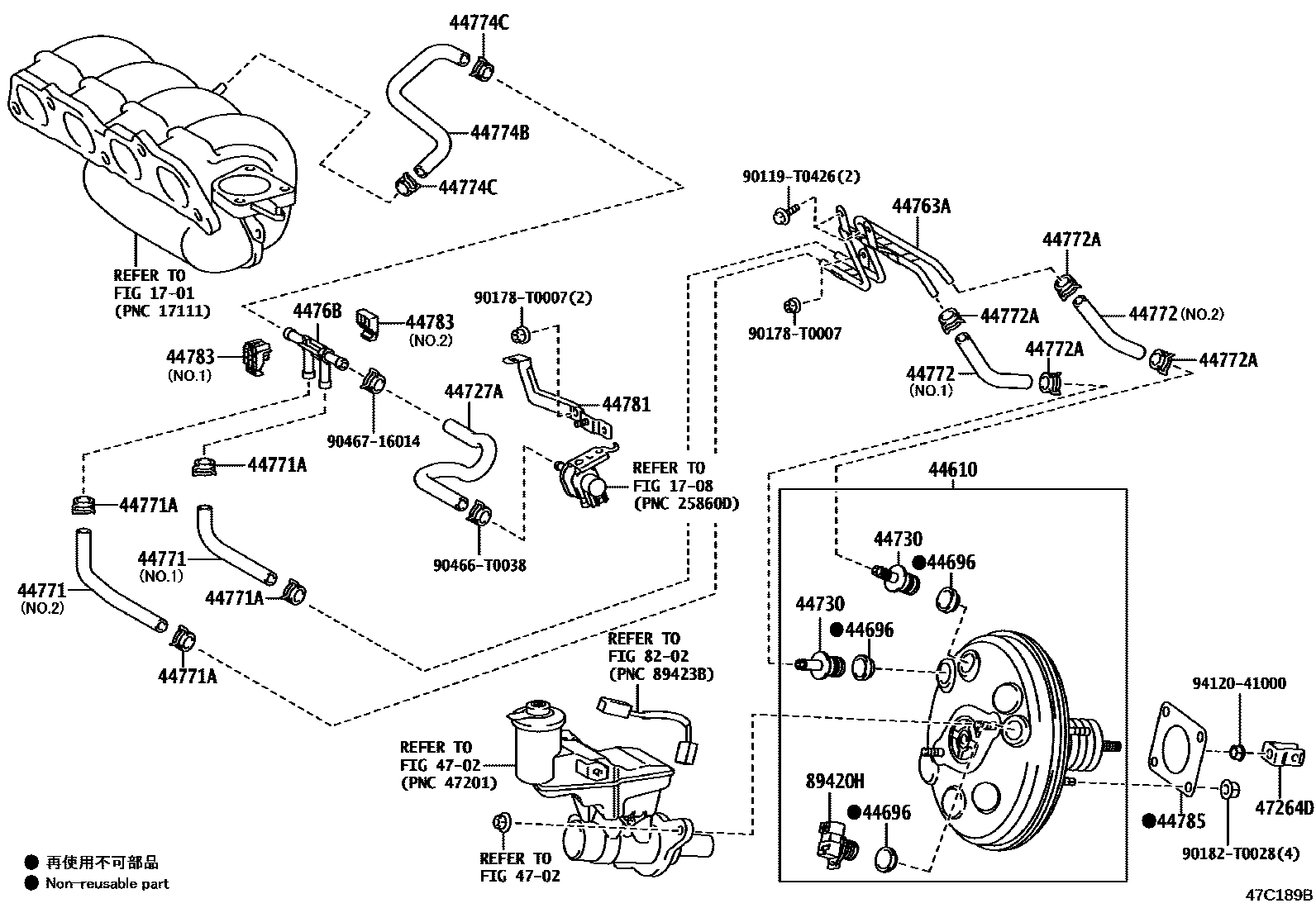

BRAKE BOOSTER & VACUUM TUBE
1701
1708
44610BOOSTER ASSY, BRAKE
44696GROMMET, CHECK VALVE
44727AHOSE, AIR, NO.2
44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44763ATUBE, HOSE TO HOSE, NO.1
4476BEJECTOR, BRAKE BOOSTER VACUUM
44771HOSE, VACUUM TUBE CONNECTOR
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)
44772HOSE, CHECK VALVE TO CONNECTOR TUBE
NO.2:REFER ILLUST.
NO.1:REFER ILLUST.
44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)
44774HOSE, UNION TO CONNECTOR TUBE
44774BHOSE, UNION TO CONNECTOR TUBE
44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)
44781BRACKET, HOSE
44783CLAMP, VACUUM HOSE
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
44785GASKET, BRAKE BOOSTER
4702
47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD
8202
89420HSENSOR ASSY, VACUUM
90119T0426
main90119-T0426
90178T0007
90182T0028
main90182-T0028
90466T0038
main90466-T0038
9046716014
9412041000
28 parts on this diagram · 2 diagrams in section
