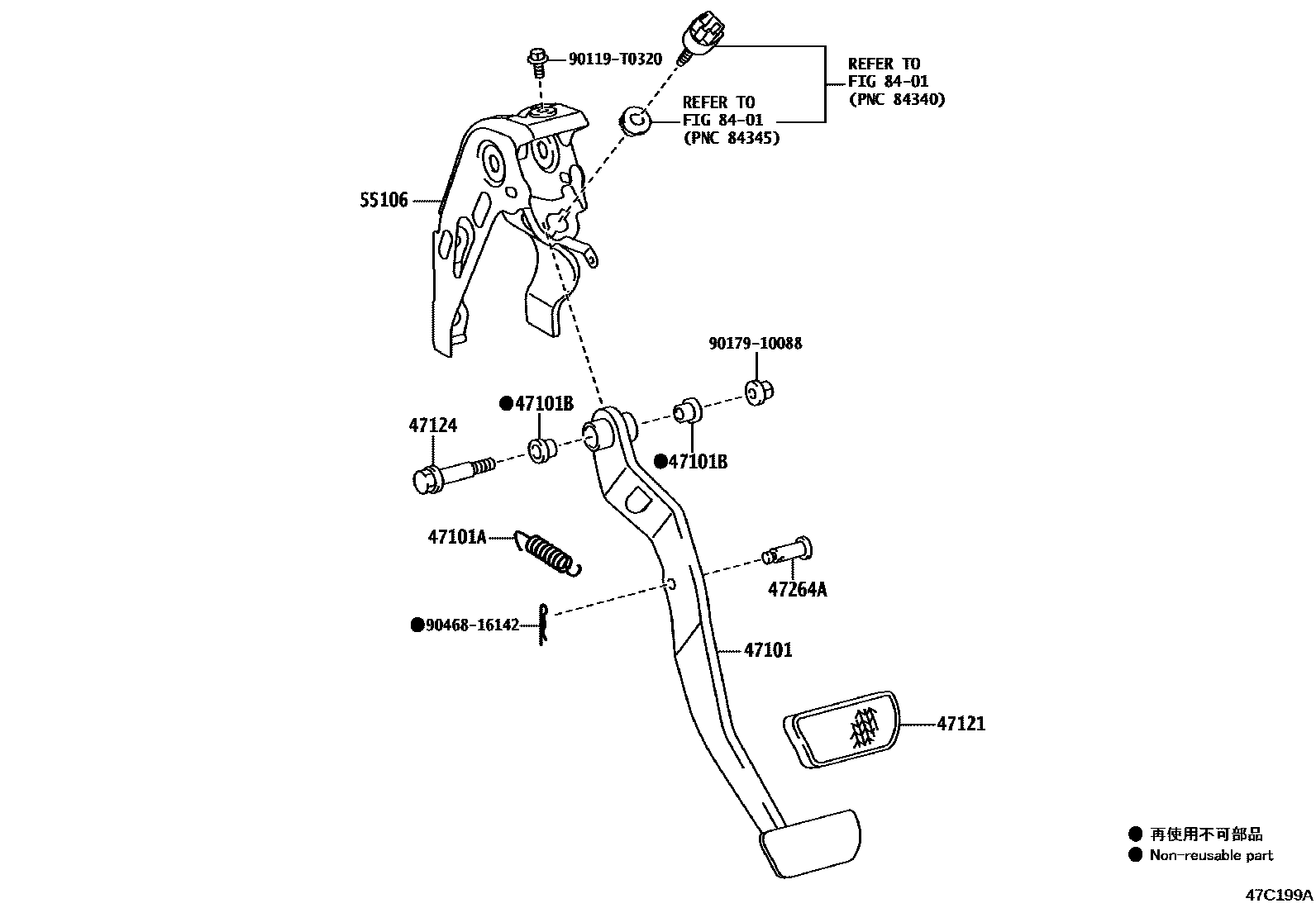

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-0D380iNSP151..5F201911-202405

main47101-0D390iNSP151..CVT201911-202405

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90506-T0015iNSP150201911-202405

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iNSP151¥120201911-202405

47121PAD, BRAKE PEDAL

main31321-52010iNSP151..5F¥200201911-202405

main47121-52010iNSP151..CVT¥260201911-202405

47124SHAFT, BRAKE PEDAL

main90109-10167iNSP151¥190201911-202405

47264APIN(FOR PUSH ROD)

main90249-08051iNSP151¥170201911-202405

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-0D220iNSP151201911-202405

8401

90119T0320

main90119-T0320

9017910088

main90179-10088¥100

9046816142

main90468-16142¥70

11 parts on this diagram · 1 diagram in section
