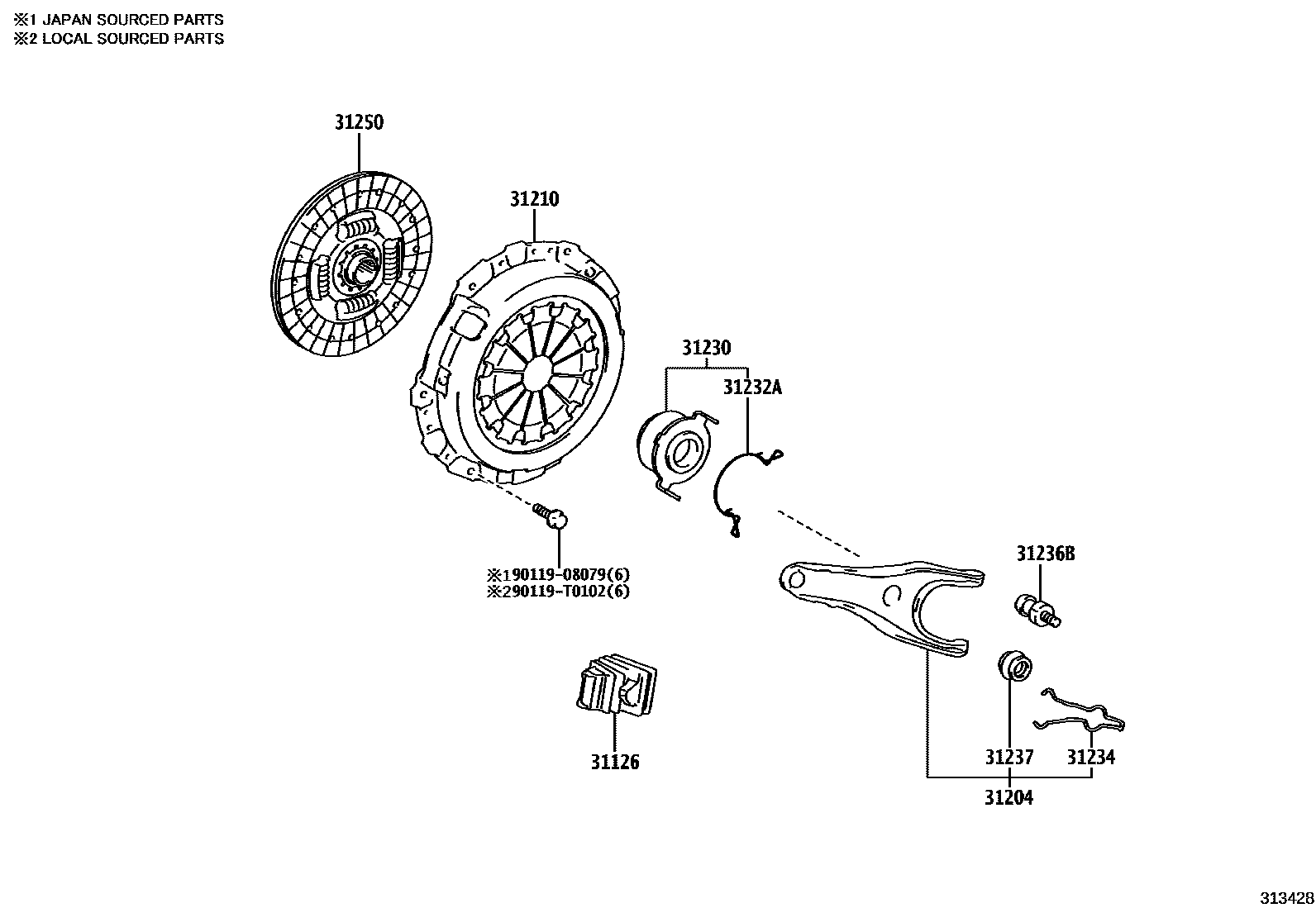

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-0D090iNSP151..5F201911-202405

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-0D040iNSP151..5F201911-202405

31210COVER ASSY, CLUTCH

main31210-0D230iNSP150..5F201911

main31210-0D240iNSP151..5F201911-202405

31230BEARING ASSY, CLUTCH RELEASE

main31230-0D012iNSP151..5F201911-202405

31232ACLIP, RELEASE BEARING HUB

main31232-0D010iNSP150..5F201911-202405

31234SPRING, RELEASE FORK ANTI-RATTLE

main31234-52020iNSP151..5F201911-202405

31236BSUPPORT, RELEASE FORK

main31236-0D020iNSP151..5F201911-202405

31237BOOT, CLUTCH RELEASE FORK SUPPORT

main31237-0D020iNSP151..5F201911-202405

31250DISC ASSY, CLUTCH

main31250-0D320iNSP150..5F201911

main31250-0D330iNSP151..5F201911-202405

9011908079

main90119-08079

90119T0102

main90119-T0102

11 parts on this diagram · 1 diagram in section
