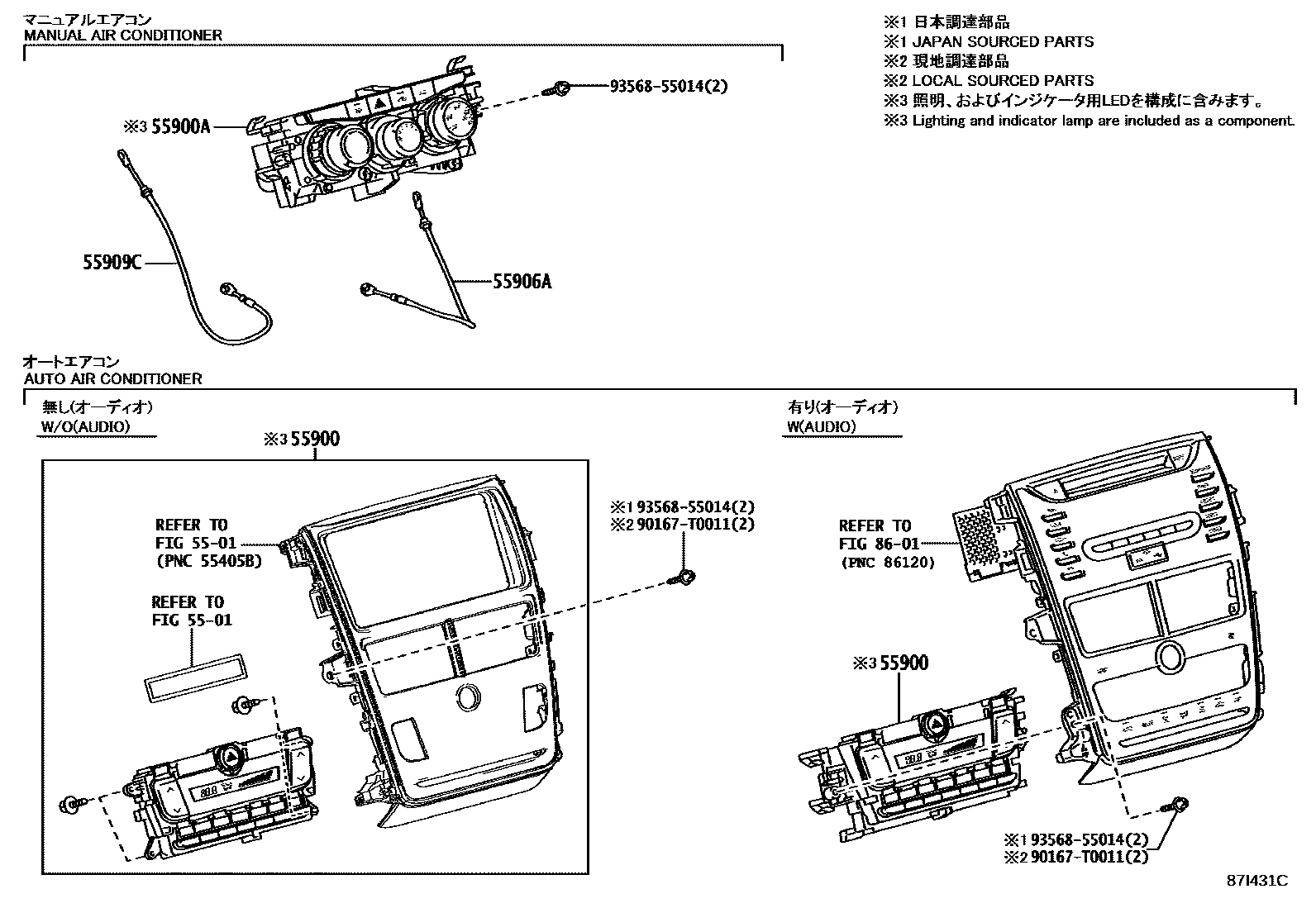

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1HEATER CONTROL PANEL 0003 1HEATER CONTROL PANEL 0004 1AIR DUCT 0005 1SENSOR

5501

55900CONTROL ASSY, AIR CONDITIONER

main55900-0DF50iNSP151..4D..GEN..G201912-202102

main55900-0DF71iNSP151..5D..6F..BZ..R201911-202201

main55900-0DK20iNSP151..6F..V;NSP151..4D..AGT..G;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..V202201-202501

main55900-0DK20iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..V202201

XS-LO PACKAGE(ARGENTINA)

55900ACONTROL & ACCESSORY ASSY, HEATER

main55900-0DE31iNSP150;NSP151..5D..D;NSP151..4D..(BZ,GEN)..(D,R)201911-202109

XL-PLUS PACKAGE(BRAZIL)

main55900-0DE32iNSP150;NSP151..5D..D;NSP151..4D..(BZ,GEN)..(D,R)202109-202112

XL-PLUS PACKAGE(BRAZIL)

sub55900-0DE33

main55900-0DE33iNSP150;NSP151..6F..D;NSP151..CVT..GEN..D202201

main55900-0DG81iNSP151..AGT..R201911-202110

main55900-0DG82iNSP151..AGT..R202110-202112

sub55900-0DG83

main55900-0DJ50iNSP151..5D..CVT..GEN..R202411-202501

main55900-0DJ60iNSP151..AGT..R202411-202501

main55900-0DK30iNSP151..GEN..R202201-202410

sub55900-0DJ50

main55900-0DK40iNSP151..AGT..R202201-202410

sub55900-0DJ60

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-0D231iNSP150;NSP151..GEN..D;NSP151..5D..AGT..R;NSP151..4D..(AGT,BZ)..(D,R)201911-202411

sub55906-0D240

main55906-0D240iNSP151..5D..CVT..GEN..R202412

XS-LO PACKAGE(ARGENTINA)

main55906-0D240iNSP151..6F..R;NSP151..4D..CVT..GEN..R202412-202501

55909CCABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-0D201iNSP150;NSP151..GEN..D;NSP151..5D..AGT..R;NSP151..4D..(AGT,BZ)..(D,R)201911-202411

sub55909-0D210

main55909-0D210iNSP151..6F..R;NSP151..4D..CVT..GEN..R202412-202501

main55909-0D210iNSP151..5D..CVT..GEN..R202412

XS-LO PACKAGE(ARGENTINA)

8601

90167T0011

main90167-T0011

9356855014

main93568-55014

8 parts on this diagram · 5 diagrams in section
