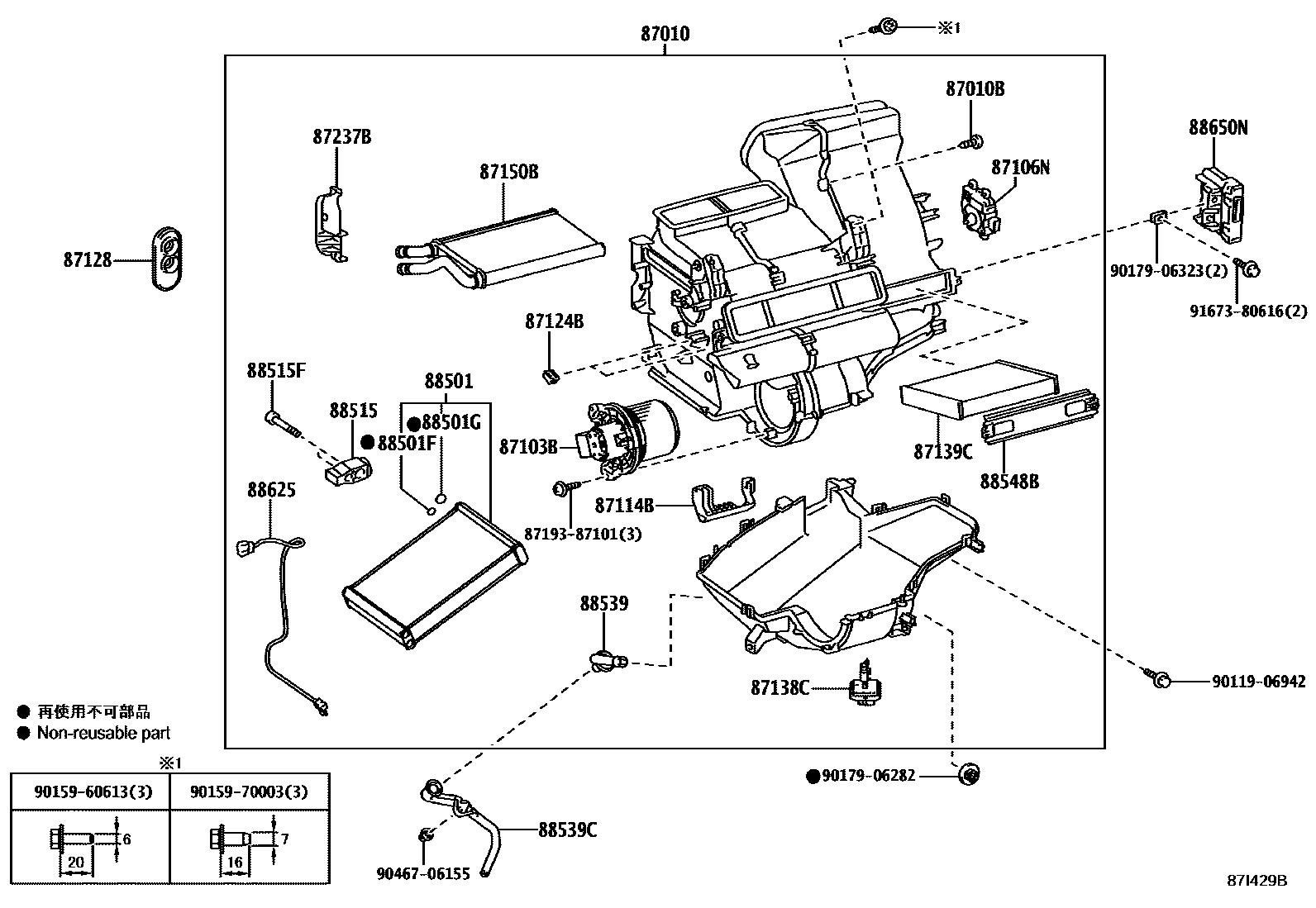

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1MANUAL AIR CONDITIONER 0002 1AUTO AIR CONDITIONER

87010UNIT ASSY, AIR CONDITIONER

main87010-0DG41iNSP151..6F..BZ..G;NSP151..4D..GEN..G;NSP151..5D..CVT..GEN..G201911-202501

main87010-0DG41iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main87010-0DG61iNSP150..CVT;NSP15#..6F..D;NSP151..CVT..GEN..D201911-202501

87010BSCREW(FOR AIR CONDITIONER UNIT)

main90094-90426iNSP151..BZ..R201911-202501

main90094-90426iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main90094-90426iNSP151..BZ..R202201-202207

XL-SPORT PACKAGE(BRAZIL)

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-0D450iNSP15#..6F..BZ..R201911-202501

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-0D320iNSP151..5D..CVT..R;NSP151..6F..AGT..(G,V);NSP151..5D..6F..GEN..G;NSP151..CVT..(AGT,BZ)..(G,V)201911-202201

XL-PLUS PACKAGE(BRAZIL)

main87106-0D320iNSP151..6F..BZ..G;NSP151..4D..GEN..G;NSP151..5D..CVT..GEN..G201911-202501

main87106-0D520iNSP151..CVT..BZ..D201911-202501

87114BCOVER, HEATER

main87114-0D080iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

87124BCLAMP, HEATER

main87124-0D110iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202501

87128GROMMET, HEATER

main87128-0D220iNSP15#..6F..BZ..R201911-202501

87138CRESISTOR, BLOWER

main87138-0D350iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202501

87139CFILTER, CLEAN AIR

main87139-02150iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

POLLEN FILTER,OE PART

main87139-50100iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

POLLEN DEODORANT

87150BRADIATOR ASSY, HEATER

main87150-0D210iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

87237BCOVER, HEATER PIPING

main87237-0D120iNSP15#..6F..BZ..R201911-202501

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-0D460iNSP151..CVT..BZ..D201911-202501

88501FO-RING, COOLER EVAPORATOR NO.1(DISCHARGE)

main90099-14120iNSP15#..6F..BZ..R201911-202501

ID=10.8,OD=15.6

88501GO-RING, COOLER EVAPORATOR NO.1(SUCTION)

main90099-14121iNSP15#..6F..BZ..R201911-202501

ID=13.4,OD=18.2

88515VALVE, COOLER EXPANSION

main88515-0D630iNSP15#..6F..BZ..R201911-202501

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04630iNSP15#..6F..BZ..R201911-202501

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-0D560iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

88539CHOSE, COOLER UNIT DRAIN, NO.2

main88539-0D160iNSP15#..6F..BZ..R201911-202501

88548BCASE, AIR FILTER

main88548-0D260iNSP151..CVT..BZ..D201911-202501

88625THERMISTOR, COOLER, NO.1

main88620-0D170iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202501

main88620-0D360iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..V201911-202501

main88620-0D360iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-0D870iNSP151..BZ..R201911-202501

main88650-0D880iNSP151..4D..CVT..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main88650-0D880iNSP151..6F..V;NSP151..4D..AGT..G;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..V201911-202501

8719387101

main87193-87101

9011906942

main90119-06942

9015960613

main90159-60613

9015970003

main90159-70003

9017906282

main90179-06282

9017906323

main90179-06323

9046706155

main90467-06155

9167380616

main91673-80616

29 parts on this diagram · 2 diagrams in section
