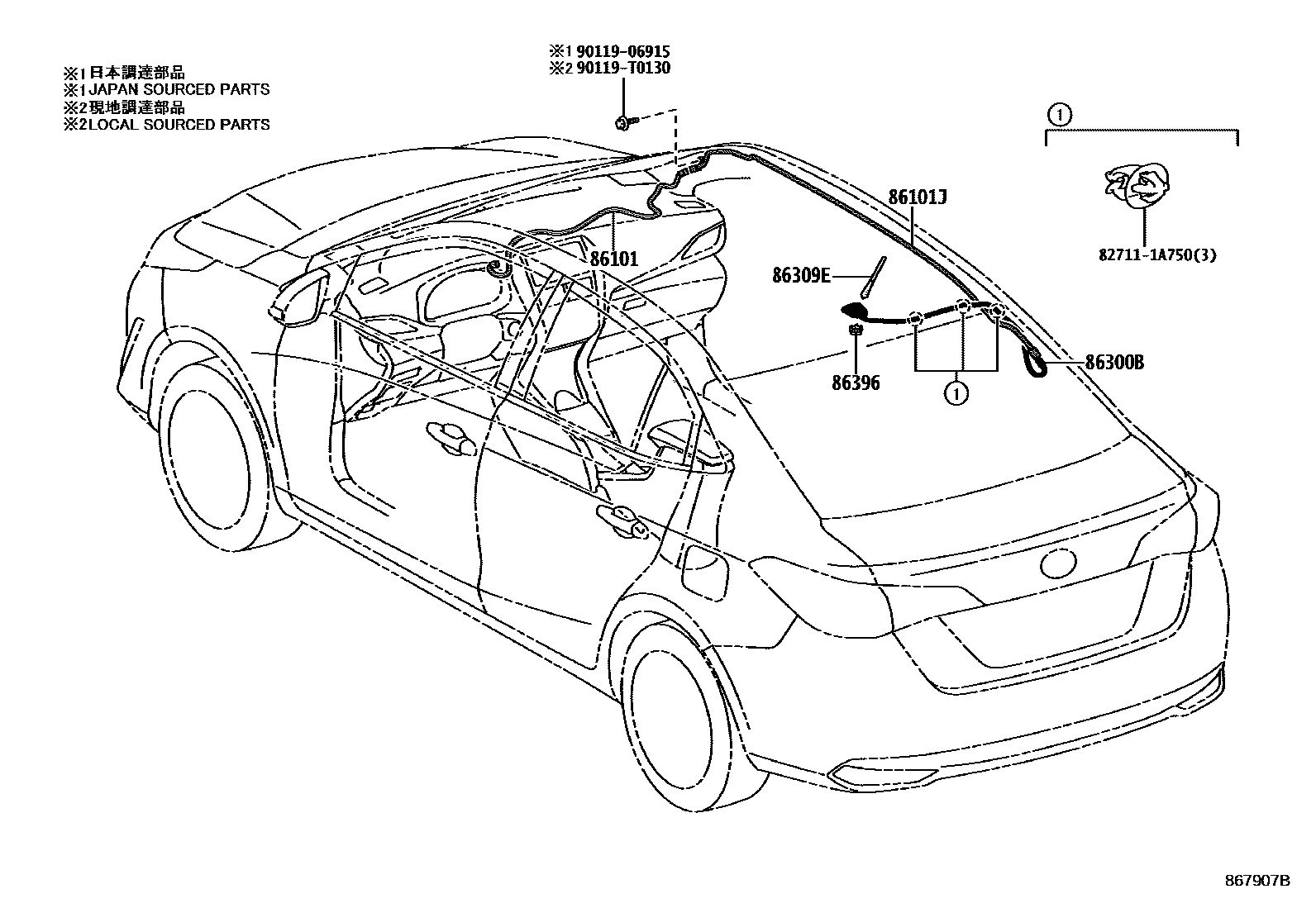

ANTENNA

0001 1 0002 1

86101CORD SUB-ASSY, ANTENNA

main86101-0D600iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-0D590iNSP151..4D..CVT..BZ..D201911-202501

main86101-0DA10iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202501

86300BANTENNA ASSY, AMPLIFIER, NO.1

main86300-0D400iNSP151..4D..6F..BZ..R201911-202501

main86300-0D420iNSP151..5D..CVT..(AGT,BZ);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202501

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-0D220iNSP15#..6F..BZ..R201911-202501

86396NUT, ANTENNA

main86396-47010iNSP15#..6F..BZ..R201911-202501

827111A750WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A750

9011906915

main90119-06915

90119T0130

main90119-T0130

8 parts on this diagram · 2 diagrams in section
