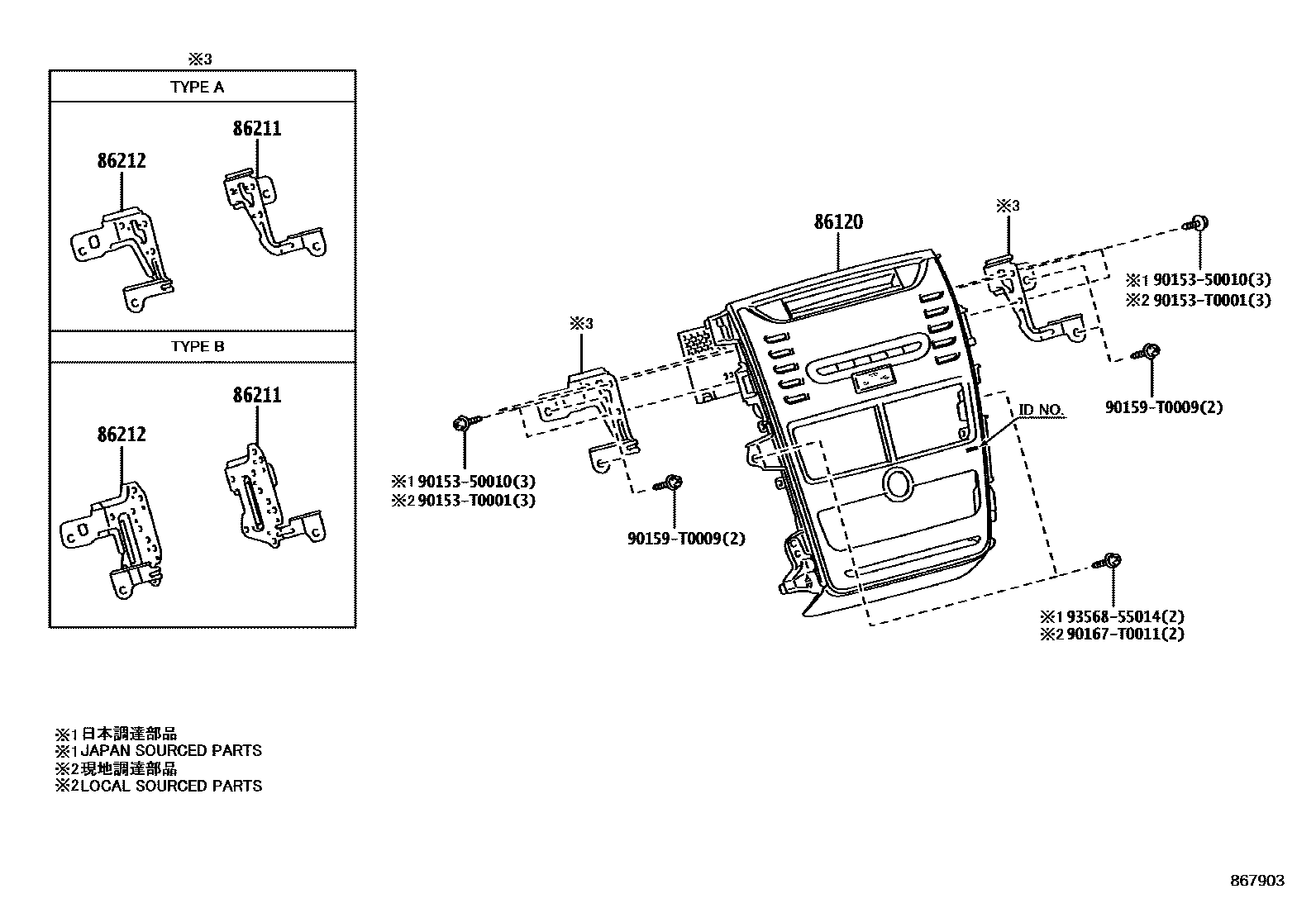

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1RECEIVER 0002 1CONDENSER 0003 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0DA70iNSP150..R;NSP151..4D..BZ..R201911-202102

DENSO TEN,ID=100749

main86120-0DA80iNSP15#..BZ..D201911-202201

DENSO TEN,ID=100750

main86120-0DA80iNSP151..GEN..D201911-202102

DENSO TEN,ID=100750,PARAGUAY SPEC

main86120-0DA80iNSP151..AGT..R201911-202201

DENSO TEN,ID=100750,AUDIO(OVERSEAS MARKET)-RADIOLESS 6SPEAKER & WITH(COVER)

main86120-0DB80iNSP151..4D..GEN..G201912-202102

DENSO TEN,ID=100752

86211BRACKET, RADIO, NO.1

main86211-0D360iNSP15#..D;NSP151..4D..GEN..G201911-202102

TYPE A:REFER ILLUST.

main86211-0D430iNSP151..5D..BZ..R;NSP151..5D..GEN..G;NSP151..(AGT,BZ)..(G,V)201911-202501

TYPE B:REFER ILLUST.

main86211-0D430iNSP150..D;NSP151..4D..D;NSP151..5D..GEN..D;NSP151..4D..GEN..G202102

AUDIO(OVERSEAS MARKET)-RADIOLESS 4SPEAKER & WITH(COVER),TYPE B:REFER ILLUST.

86212BRACKET, RADIO, NO.2

main86212-0D340iNSP150..R;NSP151..5D..AGT..R;NSP151..4D..(AGT,BZ)..R201911-202102

TYPE A:REFER ILLUST.

main86212-0D410iNSP151..5D..BZ..R;NSP151..5D..GEN..G;NSP151..(AGT,BZ)..(G,V)201911-202501

TYPE B:REFER ILLUST.

main86212-0D410iNSP150..D;NSP151..4D..D;NSP151..5D..GEN..D;NSP151..4D..GEN..G202102

AUDIO(OVERSEAS MARKET)-RADIOLESS 4SPEAKER & WITH(COVER),TYPE B:REFER ILLUST.

9015350010

main90153-50010

90153T0001

main90153-T0001

90159T0009

main90159-T0009

90167T0011

main90167-T0011

9356855014

main93568-55014

8 parts on this diagram · 3 diagrams in section
