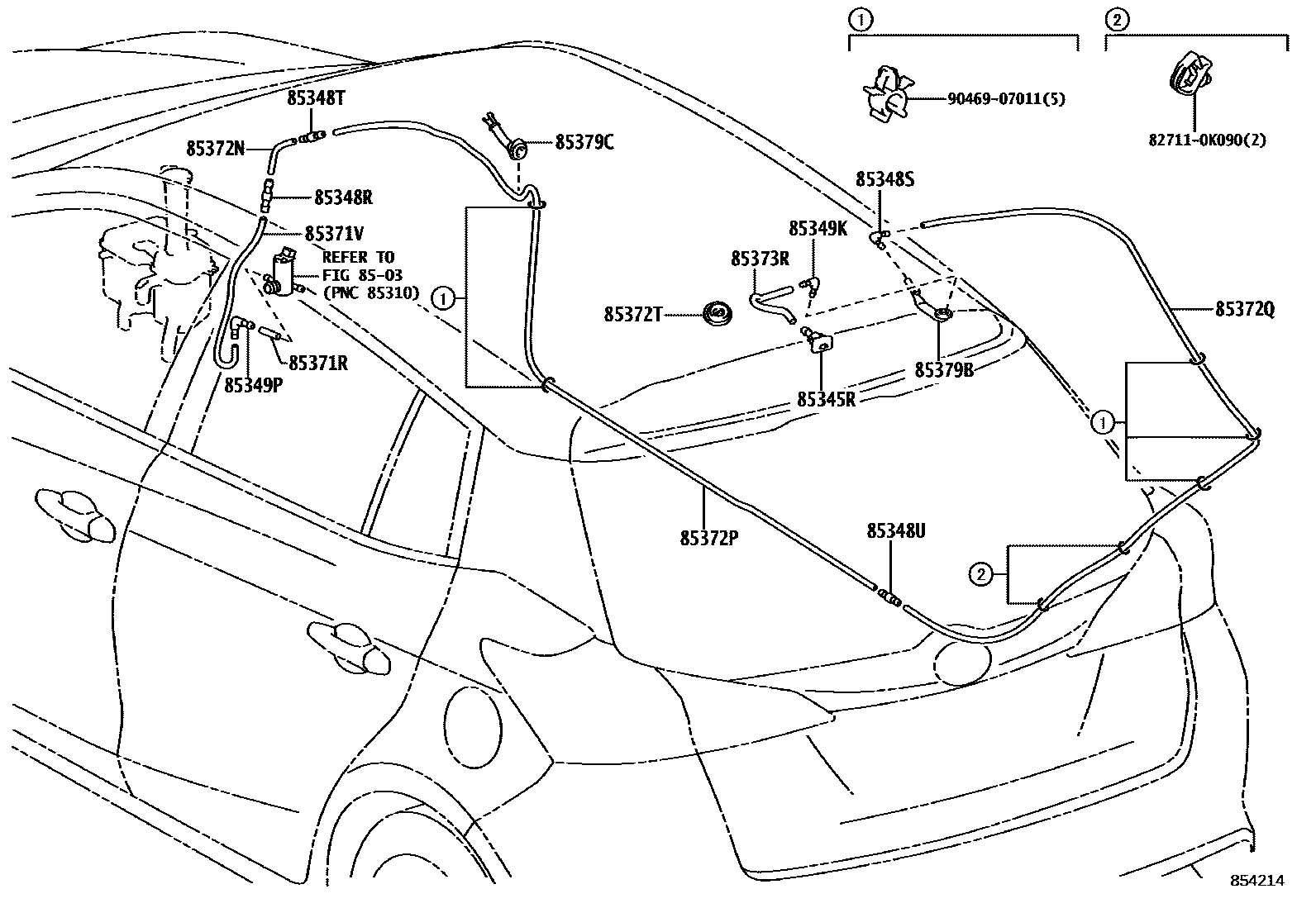

REAR WASHER
8503
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85348UJOINT, REAR WASHER HOSE, NO.3
85349KJOINT, REAR WASHER ELBOW, NO.2
85349PJOINT, REAR WASHER ELBOW, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=1450(*H,L=40)
85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)
L=1800(*H,L=360)
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=50
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
L=2405
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
L=2176
85372TGROMMET, WASHER
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
L=1000(*H,L=250)
85379BGROMMET, WASHER, A
85379CGROMMET, REAR WASHER HOSE NO.1
827110K090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-0K090
9046907011
main90469-07011
19 parts on this diagram · 1 diagram in section
