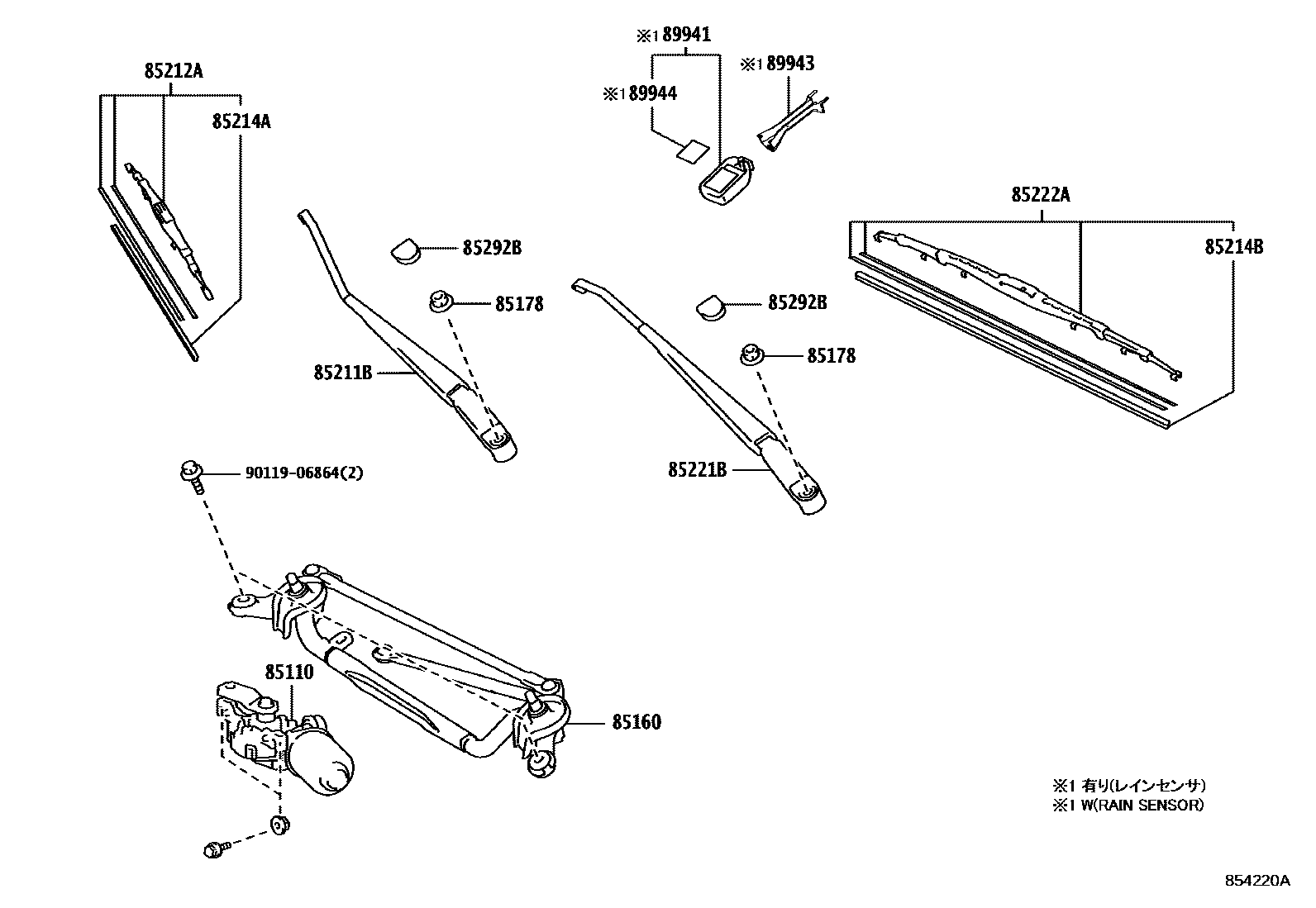

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-0D320iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

85160LINK ASSY, WINDSHIELD WIPER

main85150-0D310iNSP151..CVT..BZ..D201911-202501

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iNSP15#..6F..BZ..R¥80201911-202501

(J)

main90182-T0029iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

(L)

85211BARM, FRONT WIPER, RH

main85211-0D260iNSP15#..6F..BZ..R201911-202501

85212ABLADE, FR WIPER, RH

main85212-0D081iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

85214ARUBBER, WIPER, RH

main85214-0D121iNSP15#..6F..BZ..R¥0201911-202501

85214BRUBBER, WIPER, LH

main85214-02180iNSP15#..6F..BZ..R201911-202501

85221BARM, FRONT WIPER, LH

main85221-0D210iNSP15#..6F..BZ..R201911-202501

85222ABLADE, FR WIPER, LH

main85222-0D080iNSP15#..6F..BZ..R201911-202501

85292BCAP, FRONT WIPER ARM HEAD

main85292-0D030iNSP15#..6F..BZ..R¥200201911-202501

89941SENSOR, RAIN

main89941-52010iNSP151..V¥12,500201911-202201

89943COVER, RAIN SENSOR

main89943-47010iNSP151..V¥1,550201911-202201

89944TAPE, RAIN SENSOR

main89944-42010iNSP151..V¥1,490201911-202201

9011906864

main90119-06864¥80

14 parts on this diagram · 1 diagram in section
