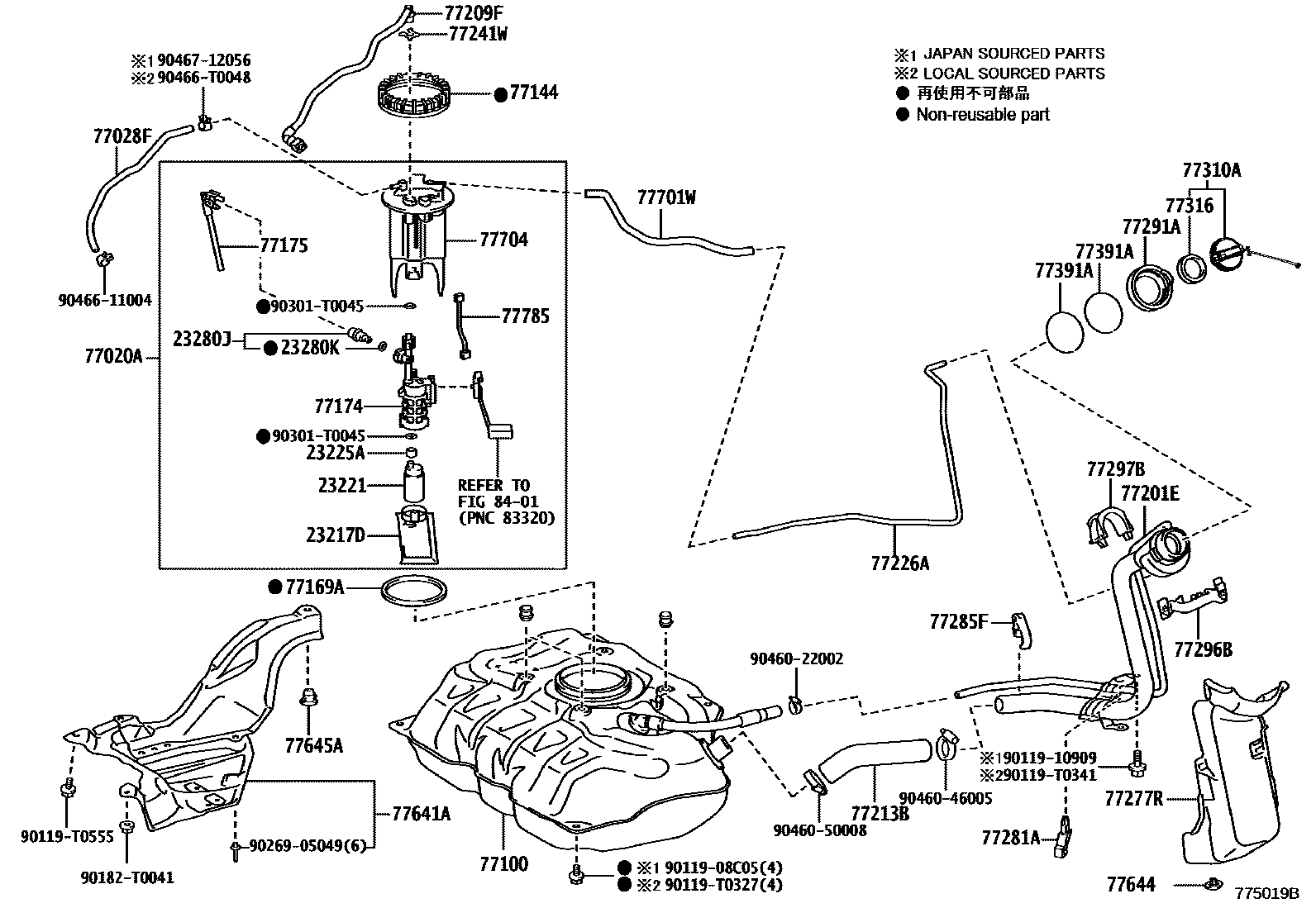

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL LID OPENER 0012 1FUEL LID OPENR

23217DFILTER, FUEL PUMP

main23217-0Y030i2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

main23217-0Y050i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

23221PUMP, FUEL

main23221-0Y040i2NRFE..NSP151..AGT201911-202501

23225ASPACER, FUEL PUMP

main23225-0Y010i2NRFE..NSP151..AGT201911-202501

23280JREGULATOR ASSY, FUEL PRESSURE

main23280-0D010i2NRFBE..NSP151..CVT201911-202305

main23280-22010i2NRFE..NSP151..AGT;2NRFE..NSP151..5D..6F..GEN..G201911-202501

23280KRING, O(FOR FUEL PRESSURE REGULATOR)

main90301-07020i2NRFE..NSP151..AGT201911-202501

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main77020-0D200iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

main77020-0D260iNSP151..CVT..BZ..(G,R,V)202305-202501

main77020-0D370iNSP15#..6F..BZ..R201911-202201

main77020-0D371iNSP151..CVT..BZ202201-202305

77028FTUBE SUB-ASSY, FUEL EMISSION, NO.2

main77028-0D170iNSP15#..6F..BZ..R201911-202201

main77028-0D180iNSP151..AGT;NSP151..5D..6F..GEN..G201911-202501

main77028-0D240iNSP151..CVT..BZ202201-202305

77100TANK ASSY, FUEL

main77001-0D380iNSP15#..6F..BZ..R201911-202201

main77001-0D390iNSP151..AGT;NSP151..5D..6F..GEN..G201911-202204

sub77001-0D391

main77001-0D391iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..(R,V)202205-202501

main77001-0D530iNSP151..CVT..BZ202201-202305

main77001-0D560iNSP151..CVT..BZ..(G,R,V)202305-202501

77144RETAINER, FUEL PUMP GAUGE

main77144-0D050iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0D070iNSP151..CVT..BZ201911-202501

main77169-0D120iNSP151..CVT..BZ..D202201-202501

77174SUPPORT, FUEL SUCTION, NO.1

main77174-0D110iNSP151..5D..6F..D;NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

77175SUPPORT, FUEL SUCTION, NO.2

main77175-0D070iNSP151..AGT201911-202501

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-0D400iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-0D220iNSP15#..6F..BZ..R201911-202201

main77209-0D221iNSP151..CVT..BZ202201-202305

main77209-0D230iNSP151..5D..6F..D;NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

main77209-0D370iNSP151..CVT..BZ..(G,R,V)202305-202501

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-0D170iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-0D180iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

77241WCLIP, TUBE JOINT

main77241-33011iNSP151..AGT;NSP151..5D..6F..GEN..G201911-202501

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-0D130iNSP15#..6F..BZ..R201911-202501

77281ACLAMP, FUEL FILLER PIPE

main77229-0D010iNSP15#..6F..BZ..R201911-202501

77285FCLAMP, FUEL TUBE, NO.1

main77285-0D040iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-0D280iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

77296BSUPPORT, FUEL TUBE PROTECTOR, NO.1

main77296-0D010iNSP15#..6F..BZ..R201911-202501

77297BSUPPORT, FUEL TUBE PROTECTOR, NO.2

main77297-0D010iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

77310ACAP ASSY, FUEL TANK

main77300-0K010iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

(L)

main77300-12020iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..(R,V)201911-202501

(J)

main77300-48020iNSP151..CVT..BZ..D202201-202501

(L)

77316GASKET, FUEL TANK CAP

main77316-0K020iNSP15#..6F..BZ..R201911-202501

(L)

main77316-52040iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..(R,V)201911-202501

(J)

main77316-75020iNSP151..CVT..BZ..D202201-202501

(L)

77391ARING, FUEL INLET BOX

main77391-02020iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

(L)

main77391-12020iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

(J)

77641APROTECTOR, FUEL TANK, NO.1

main77606-0D130iNSP15#..6F..BZ..R201911-202501

77644BOLT, FUEL TANK

main77644-0K010iNSP15#..6F..BZ..R201911-202501

77645ARETAINER, FUEL TANK PROTECTOR

main77645-52040iNSP15#..6F..BZ..R201911-202501

77701WHOSE SUB-ASSY, CANISTER OUTLET, NO.1

main77701-0D150iNSP151..AGT;NSP151..5D..6F..GEN..G201911-202501

main77701-0D160iNSP150..CVT;NSP15#..6F..BZ..(D,G)201911-202305

77704CANISTER SUB-ASSY, CHARCOAL

main77704-0D110iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..(R,V)201911-202501

77785HARNESS, FUEL PUMP

main77785-0D130iNSP151..AGT201911-202501

8401

9011908C05

main90119-08C05

9011910909

main90119-10909

90119T0327

main90119-T0327

90119T0341

main90119-T0341

90119T0555

main90119-T0555

90182T0041

main90182-T0041

9026905049

main90269-05049

90301T0045

main90301-T0045

9046022002

main90460-22002

9046046005

main90460-46005

9046050008

main90460-50008

9046611004

main90466-11004

90466T0048

main90466-T0048

9046712056

main90467-12056

47 parts on this diagram · 9 diagrams in section
