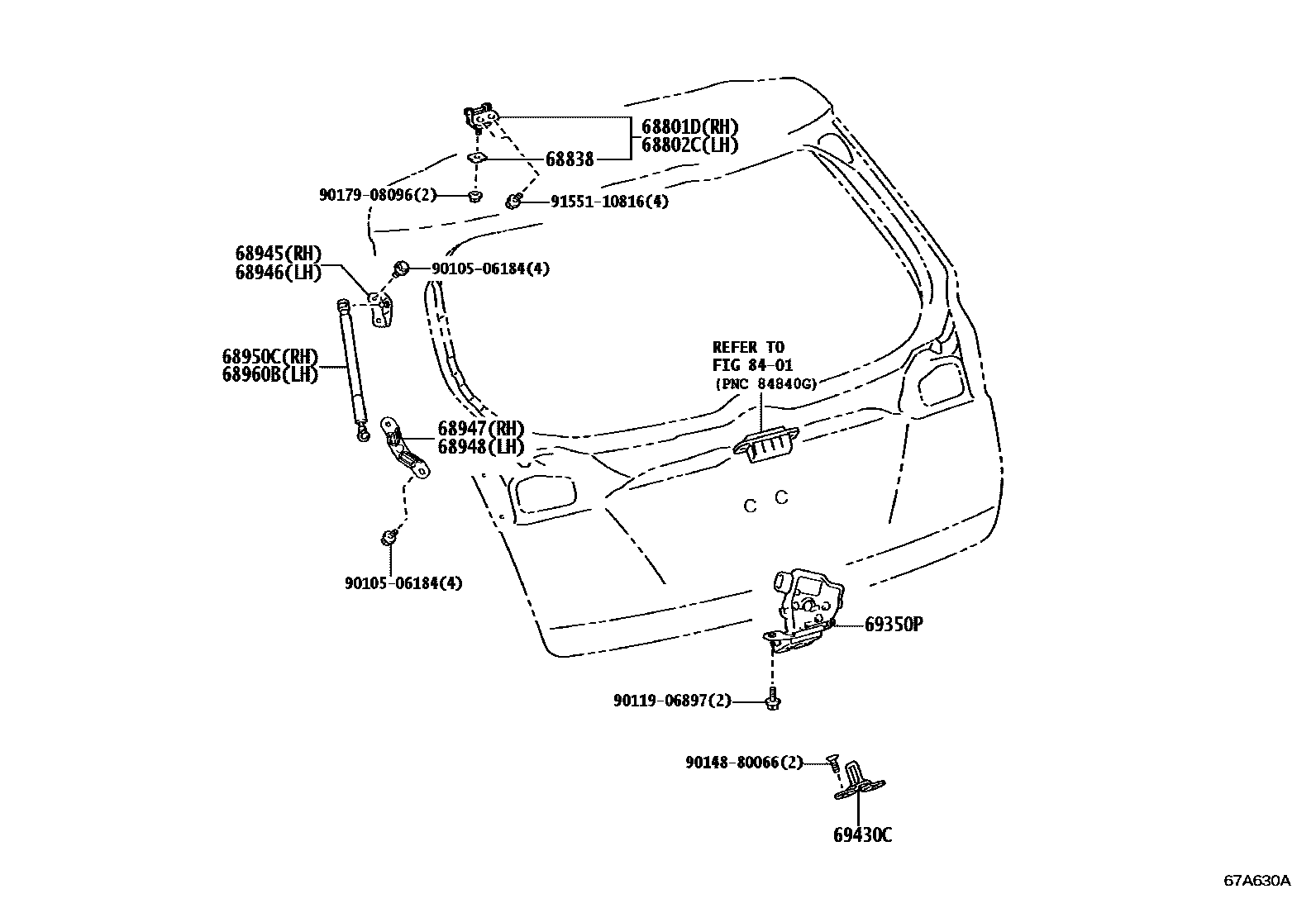

BACK DOOR LOCK & HANDLE

68801DHINGE SUB-ASSY, BACK DOOR, RH

main68801-0D150iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202501

68802CHINGE SUB-ASSY, BACK DOOR, LH

main68801-0D150iNSP15#..5D..6F..BZ..R201911-202501

68838PAD, BACK DOOR HINGE, NO.1

main68838-0D310iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202501

T=0.5

main68838-0D320iNSP151..5D..CVT..(AGT,BZ);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202501

T=1.0

main68838-0D330iNSP151..5D..CVT..(AGT,BZ);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202501

T=1.5

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-0D130iNSP15#..5D..6F..BZ..R201911-202501

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68945-0D130iNSP151..5D..BZ..D201911-202501

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-0D100iNSP15#..5D..6F..BZ..R201911-202501

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68947-0D100iNSP15#..5D..6F..BZ..R201911-202501

68950CSTAY ASSY, BACK DOOR, RH

main68950-0D250iNSP15#..5D..6F..BZ..R201911-202501

68960BSTAY ASSY, BACK DOOR, LH

main68960-0D210iNSP15#..5D..6F..BZ..R201911-202501

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-0D180iNSP15#..5D..6F..BZ..R201911-202501

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-52050iNSP15#..5D..6F..BZ..R201911-202501

8401

9010506184

main90105-06184

9011906897

main90119-06897

9014880066

main90148-80066

9017908096

main90179-08096

9155110816

main91551-10816

17 parts on this diagram · 1 diagram in section
