REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-02070iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-02070iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iNSP151..CVT..BZ..D201911-202501

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iNSP15#..6F..BZ..R201911-202501

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-0D410iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202501

main69830-0D420iNSP151..BZ..R202201-202501

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&INTRUDE&ALARM)

main69830-0D420iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main69830-0D420iNSP151..6F..BZ..G;NSP151..4D..GEN..G;NSP151..5D..CVT..GEN..G201911

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-0D410iNSP151..CVT..BZ..D201911-202501

main69840-0D420iNSP151..BZ..R202201-202501

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&INTRUDE&ALARM)

main69840-0D420iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main69840-0D420iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..V201911

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-0D060iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-0D100iNSP15#..6F..BZ..R201911-202501

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-0D100iNSP15#..6F..BZ..R201911-202501

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9010508485

main90105-08485

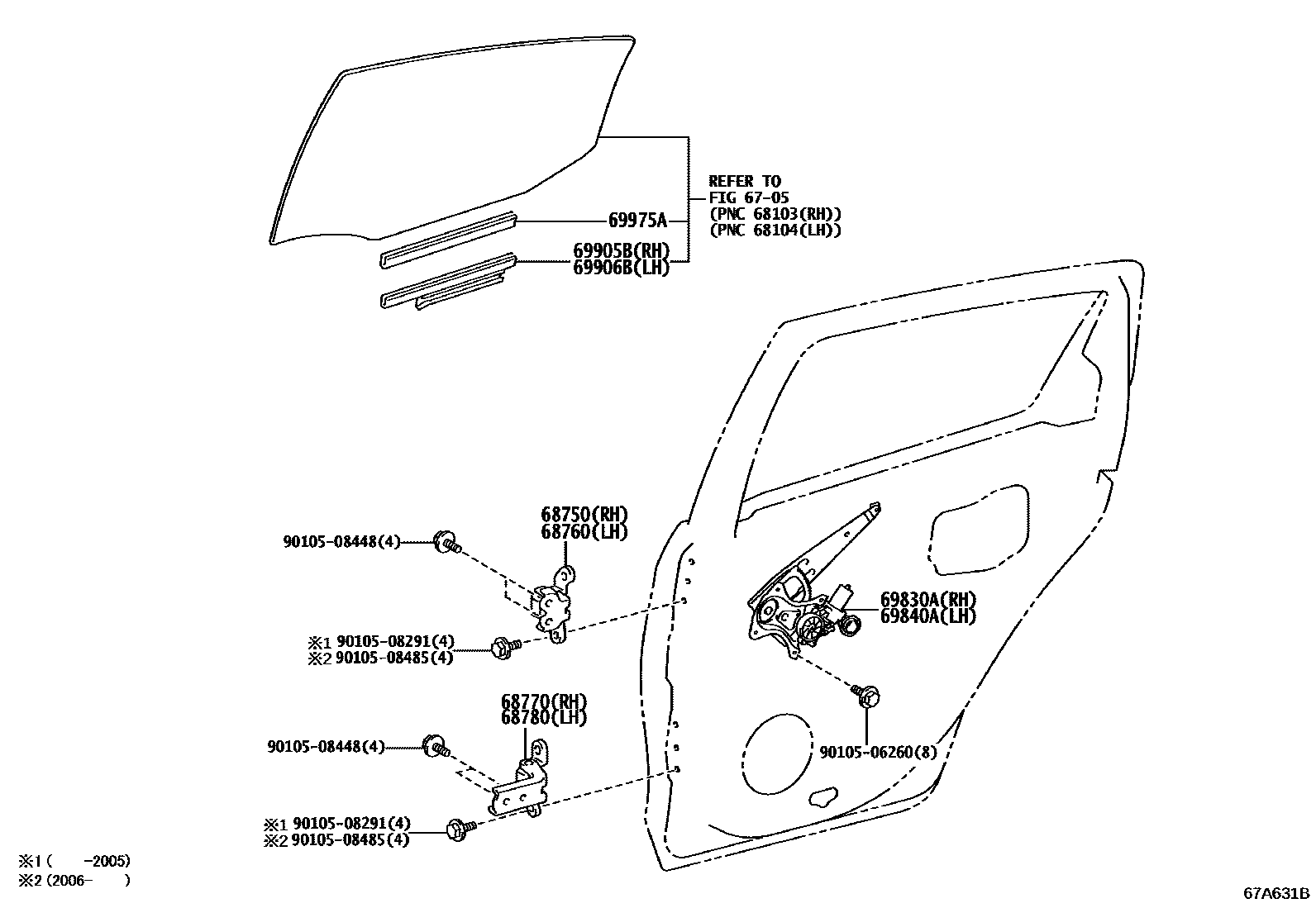

14 parts on this diagram · 1 diagram in section
