REAR DOOR LOCK & HANDLE

67836DCOVER, REAR DOOR LOCK CHILD PROTECTION

main67836-02030iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202210

69037COVER SUB-ASSY, REAR DOOR LOCK, RH

main69037-02010iNSP15#..6F..BZ..R201911-202501

69038ACOVER SUB-ASSY, REAR DOOR LOCK, LH

main69038-02010iNSP15#..6F..BZ..R201911-202501

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-0D210iNSP151..6F..AGT..V201911-202501

main69203-0D240iNSP15#..6F..BZ..R201911-202501

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-0D210iNSP151..AGT..V201911-202501

main69204-0D240iNSP151..CVT..BZ..D201911-202501

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-0D340-C0iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..V201911-202501

BLACK,TRIM2#

main69205-0D560-C0iNSP150..CVT;NSP15#..6F..D;NSP151..CVT..GEN..D201911-202501

BLACK,TRIM2#

main69205-0D570-C0iNSP151..6F..BZ..G201911-202201

BLACK,TRIM2#

main69205-0D570-C0iNSP151..4D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL),BLACK,TRIM2#

main69205-0D700-C0iNSP151..BZ..R202201-202501

BLACK,TRIM2#

main69205-0D700-C0iNSP151..BZ..R202201-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-0D340-C0iNSP151..4D..GEN..G;NSP151..5D..CVT..GEN..G201911-202501

BLACK,TRIM2#

main69206-0D560-C0iNSP150..CVT;NSP15#..6F..D;NSP151..CVT..GEN..D201911-202501

BLACK,TRIM2#

main69206-0D570-C0iNSP151..4D..CVT..R201911-202201

BLACK,TRIM2#

main69206-0D570-C0iNSP151..4D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL),BLACK,TRIM2#

main69206-0D700-C0iNSP151..BZ..R202201-202501

BLACK,TRIM2#

main69206-0D700-C0iNSP151..BZ..R202201-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-0K200iNSP151..CVT..AGT..V201911-202501

*CR

main69227-0K907iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..GEN..(R,V)201911-202501

LESS COLOR

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-0K200iNSP151..CVT..AGT..V201911-202501

*CR

main69227-0K907iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

LESS COLOR

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-0K200iNSP151..6F..AGT..V201911-202501

PLATED

main69210-0K903iNSP151..6F..R;NSP151..6F..GEN..V;NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

PAINT REQ.

69237BNUT, REAR DOOR HANDLE

main69237-0K040iNSP151..AGT..V201911-202501

main69237-0K070iNSP151..CVT..BZ..D201911-202501

69239DBUSH, REAR DOOR HANDLE

main69239-0K070iNSP15#..6F..BZ..R201911-202501

main69239-0K080iNSP151..AGT..V201911-202501

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69210-0K200iNSP151..AGT..V201911-202501

PLATED

main69210-0K903iNSP151..6F..R;NSP151..6F..GEN..V;NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-0K060iNSP15#..6F..BZ..R201911-202501

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-0K050iNSP151..CVT..BZ..D201911-202501

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iNSP15#..6F..BZ..R201911-202501

69330LOCK ASSY, REAR DOOR, RH

main69050-02400iNSP15#..6F..BZ..R201911-202501

69340LOCK ASSY, REAR DOOR, LH

main69060-02400iNSP15#..6F..BZ..R201911-202501

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-02090iNSP15#..6F..BZ..R201911-202501

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-0D310iNSP15#..6F..BZ..R201911-202501

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-0D310iNSP15#..6F..BZ..R201911-202501

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-0D250iNSP15#..6F..BZ..R201911-202501

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-0D250iNSP15#..6F..BZ..R201911-202501

692960M010SCREW, DOOR INSIDE HANDLE

main69296-0M010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

90189T0005

main90189-T0005

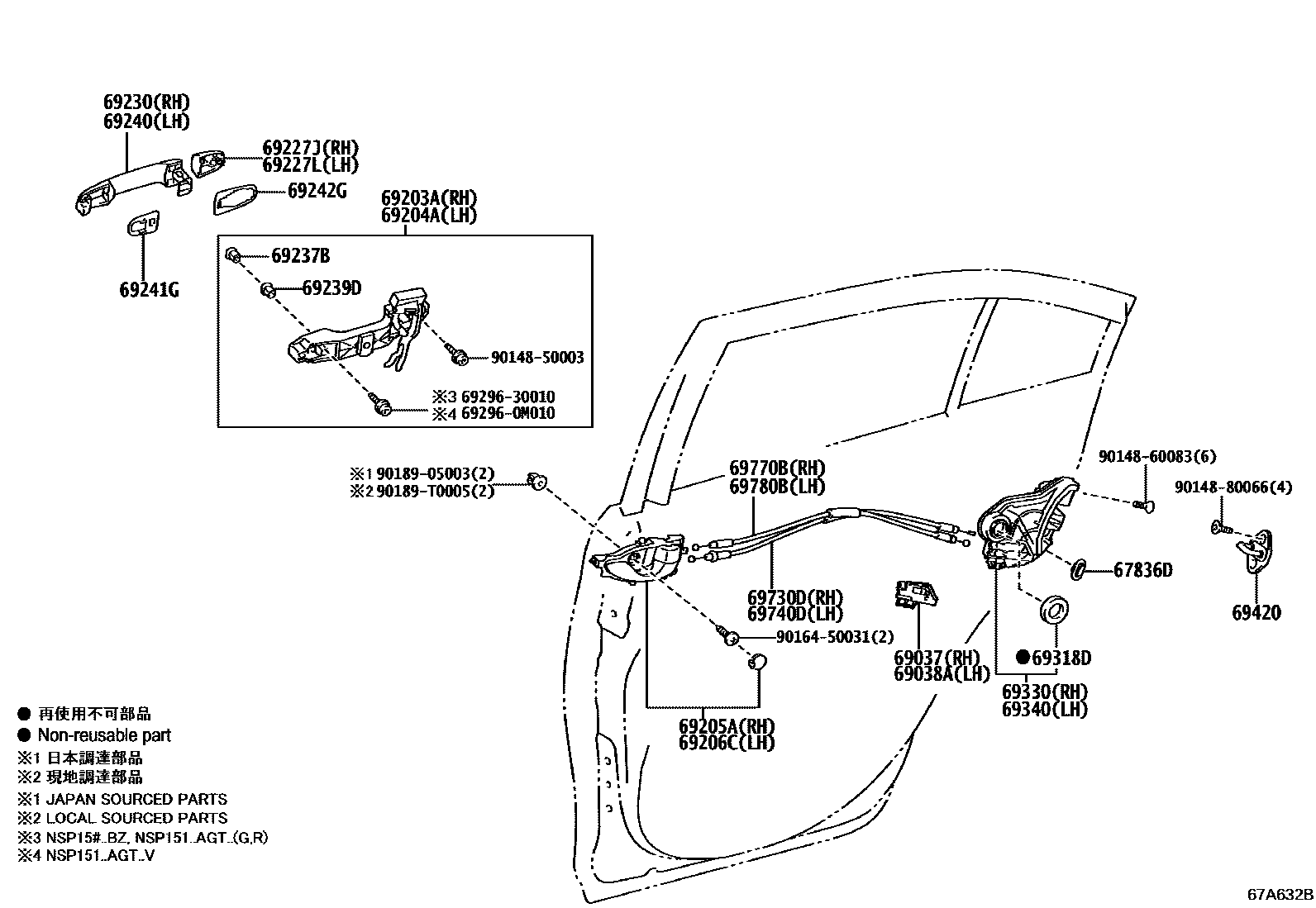

31 parts on this diagram · 1 diagram in section
