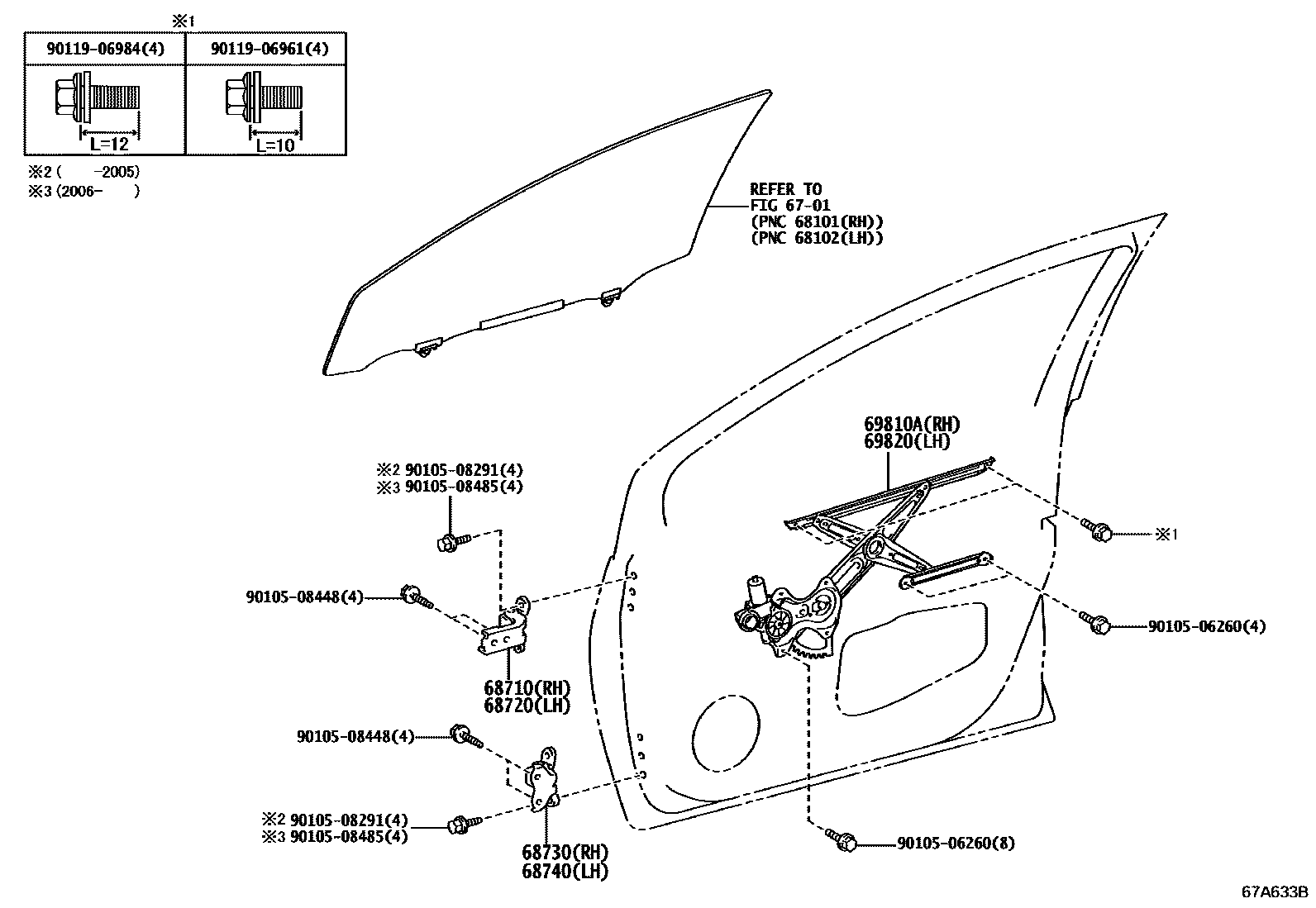

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02090iNSP151..CVT..BZ..D201912-202501

(J)

main68710-12151iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201912-202501

(L)

main68710-12151iNSP15#201911-201912

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02090iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201912-202501

(L)

main68720-12151iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201912-202501

(J)

main68720-12151iNSP15#201911-201912

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02110iNSP151..CVT..BZ..D201911-202501

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02110iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69810-0D510iNSP151..CVT..BZ..D201911-202501

main69810-0D520iNSP151..6F..V;NSP151..4D..AGT..G;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..V202201-202501

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&INTRUDE&ALARM)

main69810-0D520iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..V201911

main69810-0D520iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69820-0D500iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main69820-0D500iNSP151..6F..BZ..G;NSP151..4D..GEN..G;NSP151..5D..CVT..GEN..G201911

main69820-0D500iNSP151..6F..V;NSP151..4D..AGT..G;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..V202201-202501

ANTI-THEFT SYSTEM-WITH(IMMOBILIZER&INTRUDE&ALARM)

main69820-0D560iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202501

9010506260

main90105-06260

9010508291

main90105-08291

9010508448

main90105-08448

9010508485

main90105-08485

9011906961

main90119-06961

9011906984

main90119-06984

13 parts on this diagram · 1 diagram in section
