FRONT DOOR LOCK & HANDLE

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-02010iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-02010iNSP15#..6F..BZ..R201911-202501

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-0K061iNSP151..AGT..V201911-202501

main69201-0K080iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-0K061iNSP151..4D..GEN..D201911

main69202-0K061iNSP151..4D..CVT..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main69202-0K061iNSP151..6F..V;NSP151..4D..GEN..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..R;NSP151..4D..CVT..GEN..V202201-202501

XL-SPORT PACKAGE(BRAZIL)

main69202-0K080iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202501

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-0D340-C0iNSP151..AGT..(G,V);NSP151..5D..6F..GEN..G201911-202501

BLACK,TRIM2#

main69205-0D560-C0iNSP151..CVT..BZ..D201911-202501

BLACK,TRIM2#

main69205-0D570-C0iNSP151..AGT..R;NSP151..5D..CVT..R;NSP151..CVT..BZ..(G,V)201911-202201

BLACK,TRIM2#

main69205-0D570-C0iNSP151..4D..CVT..R201911-202201

XL-PLUS PACKAGE(BRAZIL),BLACK,TRIM2#

main69205-0D700-C0iNSP151..BZ..R202201-202501

BLACK,TRIM2#

main69205-0D700-C0iNSP151..BZ..R202201-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-0D340-C0iNSP151..6F..V;NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..4D..CVT..GEN..V201911-202501

BLACK,TRIM2#

main69206-0D560-C0iNSP151..5D..CVT..GEN..R201911-202501

BLACK,TRIM2#

main69206-0D570-C0iNSP151..4D..CVT..R201911-202201

XL-PLUS PACKAGE(BRAZIL),BLACK,TRIM2#

main69206-0D570-C0iNSP151..5D..6F..BZ..R201911-202201

BLACK,TRIM2#

main69206-0D700-C0iNSP151..BZ..R202201-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#

main69206-0D700-C0iNSP151..BZ..R202201-202501

BLACK,TRIM2#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-0K200iNSP151..CVT..AGT..V201911-202501

PLATED

main69210-0K903iNSP15#..6F..BZ..R201911-202501

PAINT REQ.

69217DCOVER, FRONT DOOR OUTSIDE HANDLE

main69217-0K370iNSP151..AGT..V201911-202501

*CR,DRIVER SIDE

main69217-0K380iNSP151..AGT..V201911-202501

*CR,PASSENGER SIDE

main69217-0K909iNSP151..4D..GEN..D201911-202109

LESS COLOR,DRIVER SIDE

sub69217-0K919

main69217-0K909iNSP151..4D..BZ..R201911-202109

LESS COLOR,XL-PLUS PACKAGE(BRAZIL),DRIVER SIDE

sub69217-0K919

main69217-0K913iNSP151..4D..GEN..D201911-202501

LESS COLOR,DRIVER SIDE

main69217-0K914iNSP151..6F..R;NSP151..6F..GEN..V;NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

LESS COLOR,PASSENER SIDE

main69217-0K919iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202109-202501

LESS COLOR,DRIVER SIDE

main69217-0K919iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

LESS COLOR,XL-SPORT PACKAGE(BRAZIL),DRIVER SIDE

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69210-0D140iNSP151..CVT..AGT..V201911-202501

PLATED

main69210-0D340-A0iNSP151..5D..CVT..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..G201911-202501

SUPER WHITE 2,040

main69210-0D340-A0iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL),SUPER WHITE 2,040

main69210-0D340-A0iNSP151..BZ..R202201-202501

XL-SPORT PACKAGE(BRAZIL),SUPER WHITE 2,040

main69210-0D340-A2iNSP151..4D..BZ..R201911-202010

XL-PLUS PACKAGE(BRAZIL),WHITE PEARL CS.,070

main69210-0D340-A2iNSP151..(BZ,GEN)..(G,V);NSP151..5D..(BZ,GEN)..(D,R)201911-202010

WHITE PEARL CS.,070

main69210-0D340-A3iNSP151..5D..CVT..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..G202010-202501

PLATINUM WHITE PEARL MC.,089

main69210-0D340-A3iNSP151..5D..6F..BZ..R202010-202201

XL-PLUS PACKAGE(BRAZIL),PLATINUM WHITE PEARL MC.,089

main69210-0D340-A3iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),PLATINUM WHITE PEARL MC.,089

main69210-0D340-B3iNSP151..(BZ,GEN)..(G,V);NSP151..5D..(BZ,GEN)..(D,R)201911-202010

XL-PLUS PACKAGE(BRAZIL),GRAY ME.,1G2

main69210-0D340-B3iNSP151..(BZ,GEN)..(G,V);NSP151..5D..(BZ,GEN)..(D,R)201911-202010

GRAY ME.,1G2

main69210-0D340-B4iNSP151..5D..CVT..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..G202010-202201

XL-PLUS PACKAGE(BRAZIL),GRAY ME.,1G3

main69210-0D340-B4iNSP151..5D..CVT..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..G202010-202501

GRAY ME.,1G3

main69210-0D340-B4iNSP151..BZ..R202201-202501

XL-SPORT PACKAGE(BRAZIL),GRAY ME.,1G3

main69210-0D340-B5iNSP151..4D..CVT..R201911-202201

XL-PLUS PACKAGE(BRAZIL),SILVER ME.,1H6

main69210-0D340-B5iNSP151..5D..6F..BZ..R201911-202501

SILVER ME.,1H6

main69210-0D340-B5iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),SILVER ME.,1H6

main69210-0D340-B6iNSP151..(BZ,GEN)..(G,V);NSP151..5D..(BZ,GEN)..(D,R)201911-202010

FLUID TITANIUM ME.,1K1

main69210-0D340-B6iNSP151..4D..BZ..R201911-202010

XL-PLUS PACKAGE(BRAZIL),FLUID TITANIUM ME.,1K1

main69210-0D340-C1iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),BLACK MC.,215

main69210-0D340-C1iNSP151..4D..CVT..R201911-202201

XL-PLUS PACKAGE(BRAZIL),BLACK MC.,215

main69210-0D340-C1iNSP151..5D..CVT..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..G201911-202501

BLACK MC.,215

main69210-0D340-D0iNSP151..4D..BZ..R201911-202010

XL-PLUS PACKAGE(BRAZIL),SUPER RED 5,3P0

main69210-0D340-D0iNSP151..4D..BZ..R201911-202010

SUPER RED 5,3P0

main69210-0D340-D2iNSP151..5D..6F..BZ..R202010-202201

XL-PLUS PACKAGE(BRAZIL),RED M.M.,3R3

main69210-0D340-D2iNSP151..5D..CVT..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..G202010-202501

RED M.M.,3R3

main69210-0D340-D2iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),RED M.M.,3R3

main69210-0D340-J0iNSP151..5D..CVT..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..G201911-202501

GRAYISH BLUE M.M.,8V5

main69210-0D340-J0iNSP151..5D..CVT..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..G201911-202201

XL-PLUS PACKAGE(BRAZIL),GRAYISH BLUE M.M.,8V5

main69210-0D340-J0iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),GRAYISH BLUE M.M.,8V5

main69210-0K903iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202501

PAINT REQ.

69237ANUT, FRONT DOOR HANDLE

main69237-0K040iNSP151..CVT..AGT..V201911-202501

LH

main69237-0K040iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL),LH

main69237-0K040iNSP151..6F..AGT..V202201-202501

XL-SPORT PACKAGE(BRAZIL),LH

main69237-0K070iNSP151..4D..AGT..G;NSP151..(AGT,BZ)..R;NSP151..5D..6F..AGT..G201911-202501

RH

main69237-0K070iNSP151..5D..CVT..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..G201911-202201

XL-PLUS PACKAGE(BRAZIL),RH

main69237-0K070iNSP151..4D..GEN..D201911-202102

main69237-0K070iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),RH

69239CBUSH, FRONT DOOR HANDLE

main69239-0K070iNSP151..4D..AGT..G;NSP151..(AGT,BZ)..R;NSP151..5D..6F..AGT..G201911-202501

RH

main69239-0K070iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),RH

main69239-0K070iNSP150..6F..R;NSP151..4D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL),RH

main69239-0K070iNSP151..4D..GEN..D201911-202102

main69239-0K080iNSP151..5D..CVT..GEN..(R,V)201911-202501

LH

main69239-0K080iNSP151..4D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL),LH

main69239-0K080iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),LH

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-0K060iNSP15#..6F..BZ..R201911-202501

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69242-0K050iNSP15#..6F..BZ..R201911-202501

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iNSP151..AGT..V201911-202501

main69293-33010iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

69293HSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iNSP151..5D..CVT..(AGT,GEN)..(R,V)201911

main69293-12040iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main69293-12040iNSP151..BZ..R202201-202501

XL-SPORT PACKAGE(BRAZIL)

main69293-33020iNSP151..5D..CVT..AGT..G201911-202501

69296SCREW, DOOR INSIDE HANDLE

main69296-0M010iNSP151..CVT..AGT..V201911-202501

LH

main69296-0M010iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL),LH

main69296-0M010iNSP151..6F..AGT..V202201-202501

XL-SPORT PACKAGE(BRAZIL),LH

main69296-30010iNSP151..CVT..BZ..D201911-202501

RH

main69296-30010iNSP151..4D..GEN..D201911-202102

main69296-30010iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL),RH

main69296-30010iNSP151..CVT..BZ..(G,V);NSP151..6F..GEN..(R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),RH

69310LOCK ASSY, FRONT DOOR, RH

main69030-02530iNSP15#..6F..BZ..R201911-202501

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-0D270iNSP15#..6F..BZ..R201911-202501

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-0D270iNSP15#..6F..BZ..R201911-202501

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iNSP15#..6F..BZ..R201911-202501

69320LOCK ASSY, FRONT DOOR, LH

main69040-02510iNSP15#..6F..BZ..R201911-202501

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-02090iNSP15#..6F..BZ..R201911-202501

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-0D320iNSP15#..6F..BZ..R201911-202501

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-0D320iNSP15#..6F..BZ..R201911-202501

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-0D260iNSP15#..6F..BZ..R201911-202501

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-0D260iNSP15#..6F..BZ..R201911-202501

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

90189T0005

main90189-T0005

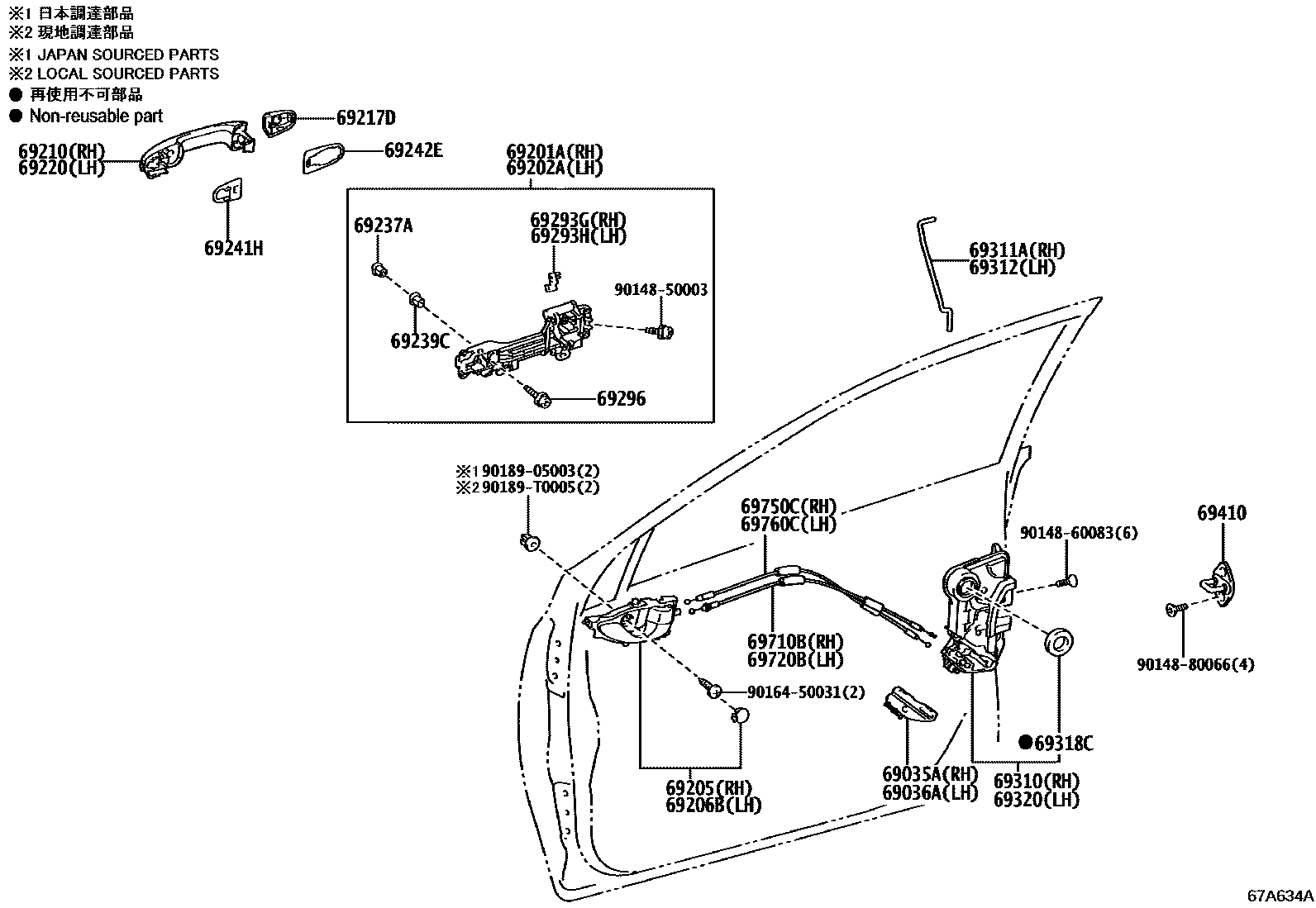

32 parts on this diagram · 1 diagram in section
