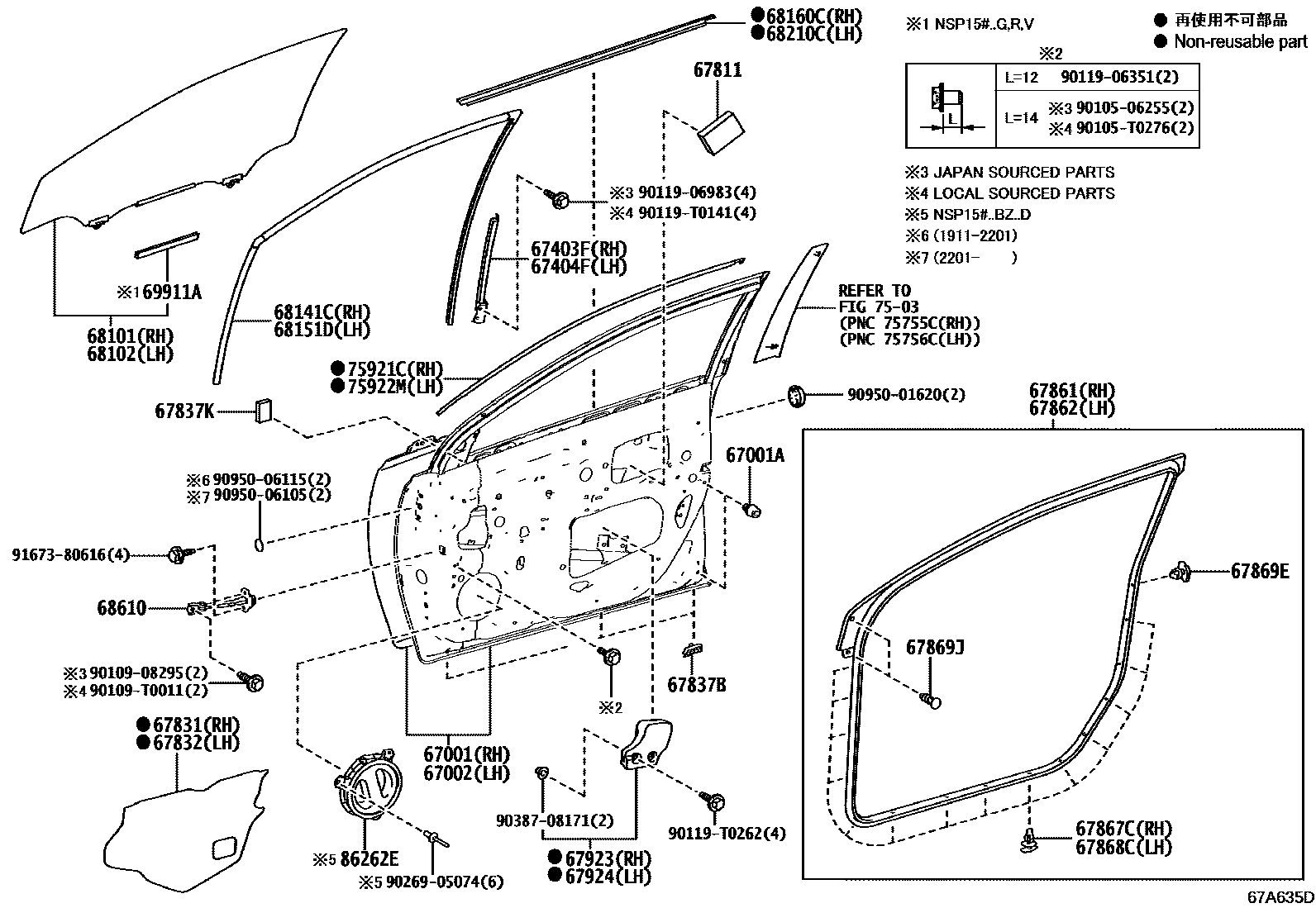

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-0D490iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

67001ACUSHION, FRONT DOOR PANEL

main90541-09124iNSP15#..6F..BZ..R201911-202501

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-0D490iNSP15#..6F..BZ..R201911-202501

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-0D210iNSP15#..6F..BZ..R201911-202501

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-0D210iNSP15#..6F..BZ..R201911-202501

67811PAD, FRONT DOOR SILENCER

main67811-02380iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-0D480iNSP151..CVT..BZ..D201911-202501

main67831-0D540iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..V201911-202501

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-0D350iNSP150..D;NSP151..6F..D;NSP151..CVT..GEN..D201911-202501

main67832-0D420iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..V201911-202501

67837BSEAL, FRONT DOOR DUST PROOF

main67837-0K092iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

67837KSEAL, FRONT DOOR VENT

main67481-0D070iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-0D230iNSP15#..6F..BZ..R201911-202501

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-0D230iNSP15#..6F..BZ..R201911-202501

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150iNSP15#..6F..BZ..R201911-202501

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150iNSP15#..6F..BZ..R201911-202501

67869ECLIP, FRONT DOOR WEATHERSTRIP

main90467-04034iNSP15#..6F..BZ..R201911-202501

67869JCLIP, FRONT DOOR WEATHERSTRIP

main67869-20030iNSP151..CVT..BZ..D201911-202501

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-0D210iNSP15#..6F..BZ..R201911-202501

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-0D220iNSP15#..6F..BZ..R201911-202501

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68110-0D470iNSP150..D;NSP151..6F..D;NSP151..CVT..GEN..D201911-202304

sub68110-0D471

main68110-0D471iNSP151..BZ..R;NSP151..4D..GEN..R;NSP151..5D..6F..GEN..R202305-202501

main68110-0D480iNSP150..CVT..R;NSP151..6F..BZ..G;NSP151..4D..GEN..G;NSP151..5D..CVT..GEN..G201911-202304

sub68110-0D481

main68110-0D481iNSP151..6F..AGT;NSP151..6F..GEN..V;NSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,V);NSP151..4D..CVT..GEN..V202305-202501

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68120-0D470iNSP151..CVT..BZ..D201911-202304

sub68120-0D471

main68120-0D471iNSP151..5D..CVT..GEN..R202305-202501

main68120-0D480iNSP151..GEN..V;NSP151..6F..AGT;NSP151..CVT..(AGT,BZ)..(G,V)201911-202304

sub68120-0D481

main68120-0D481iNSP151..6F..AGT;NSP151..6F..GEN..V;NSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,V);NSP151..4D..CVT..GEN..V202305-202501

68141CRUN, FRONT DOOR GLASS, RH

main68141-0D320iNSP15#..6F..BZ..R201911-202501

68151DRUN, FRONT DOOR GLASS, LH

main68151-0D280iNSP15#..6F..BZ..R201911-202501

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68160-0D340iNSP15#..6F..BZ..R201911-202501

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68210-0D340iNSP15#..6F..BZ..R201911-202501

68610CHECK ASSY, FRONT DOOR

main68610-0D131iNSP15#..6F..BZ..R201911-202501

69911ACHANNEL, FRONT DOOR GLASS, NO.1

main69911-0D080iNSP15#..6F..BZ..R201911-202501

75921CTAPE, BLACK OUT, NO.1 RH

main75921-0D220iNSP15#..BZ..D201911-202501

75922MTAPE, BLACK OUT, NO.1 LH

main75922-0D220iNSP15#..BZ..D201911-202501

86262ECOVER, SPEAKER, FRONT

main86262-12030iNSP151..CVT..BZ..D202102-202206

9010506255

main90105-06255

90105T0276

main90105-T0276

9010908295

main90109-08295

90109T0011

main90109-T0011

9011906351

main90119-06351

9011906983

main90119-06983

90119T0141

main90119-T0141

90119T0262

main90119-T0262

9026905074

main90269-05074

9038708171

main90387-08171

9095001620

main90950-01620

9095006105

main90950-06105

9095006115

main90950-06115

9167380616

main91673-80616

43 parts on this diagram · 2 diagrams in section
