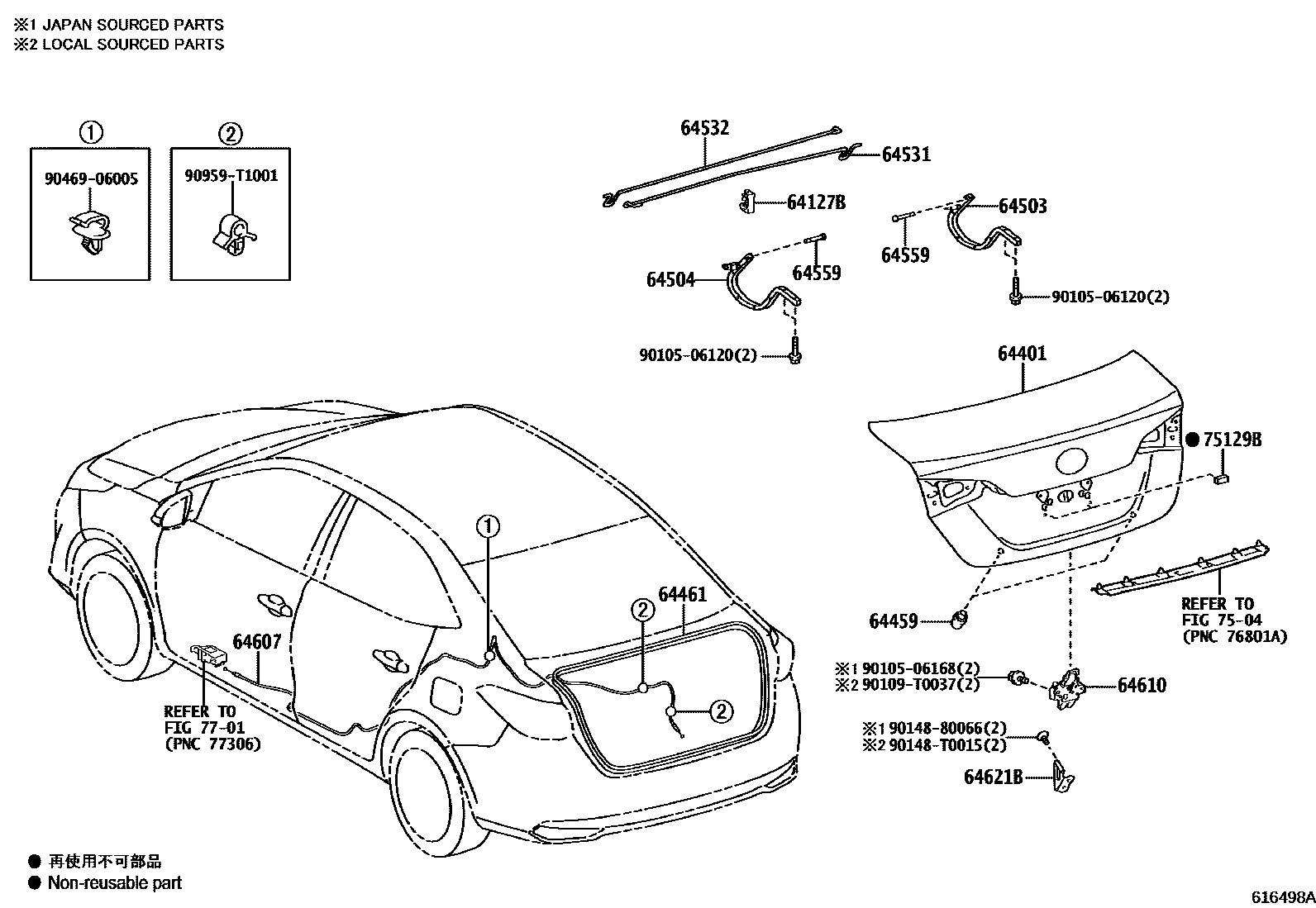

LUGGAGE COMPARTMENT DOOR & LOCK

64127BSUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR

main64127-0D060iNSP151..4D..6F..BZ..R201911-202501

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-0D460iNSP151..4D..GEN..G201912-202102

main64401-0D550iNSP151..4D..GEN..D201911-202501

main64401-0D560iNSP151..4D..CVT..BZ..(G,V)202201-202203

XL-SPORT PACKAGE(BRAZIL)

main64401-0D560iNSP151..4D..BZ..(G,V)201911-202111

main64401-0D570iNSP151..4D..CVT..BZ..(D,R)201911-202203

main64401-0D580iNSP151..4D..AGT..G201911-202501

main64401-0D690iNSP151..4D..GEN..(D,G)202102-202501

main64401-0D690iNSP151..4D..CVT..BZ..(G,V)202203-202501

XL-SPORT PACKAGE(BRAZIL)

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09069iNSP151..4D..6F..BZ..R¥170201911-202501

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-0D240iNSP151..4D..6F..BZ..R201911-202501

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-0D120iNSP151..4D..6F..BZ..R201911-202501

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-0D120iNSP151..4D..6F..AGT;NSP151..4D..CVT..(AGT,BZ)201911-202501

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-0D350iNSP151..4D..6F..BZ..R202008-202501

main64531-0D370iNSP151..4D201911-202007

sub64531-0D350

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-0D340iNSP151..4D..6F..AGT;NSP151..4D..CVT..(AGT,BZ)202008-202501

main64532-0D360iNSP151..4D201911-202007

sub64532-0D340

64559PIN, LUGGAGE DOOR HINGE

main64559-12040iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)¥100201911-202501

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-0D620iNSP151..4D..6F..AGT;NSP151..4D..CVT..(AGT,BZ)201911-202501

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-0D040iNSP151..4D..6F..BZ..R201911-202501

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-06080iNSP151..4D..6F..BZ..R201911-202501

7504

75129BCUSHION, REAR LICENCE PLATE

main75129-0D110iNSP151..4D..6F..BZ..R201911-202501

7701

9010506120

main90105-06120¥90

9010506168

main90105-06168¥120

90109T0037

main90109-T0037

9014880066

main90148-80066¥60

90148T0015

main90148-T0015

9046906005

main90469-06005¥80

90959T1001

main90959-T1001

22 parts on this diagram · 1 diagram in section
