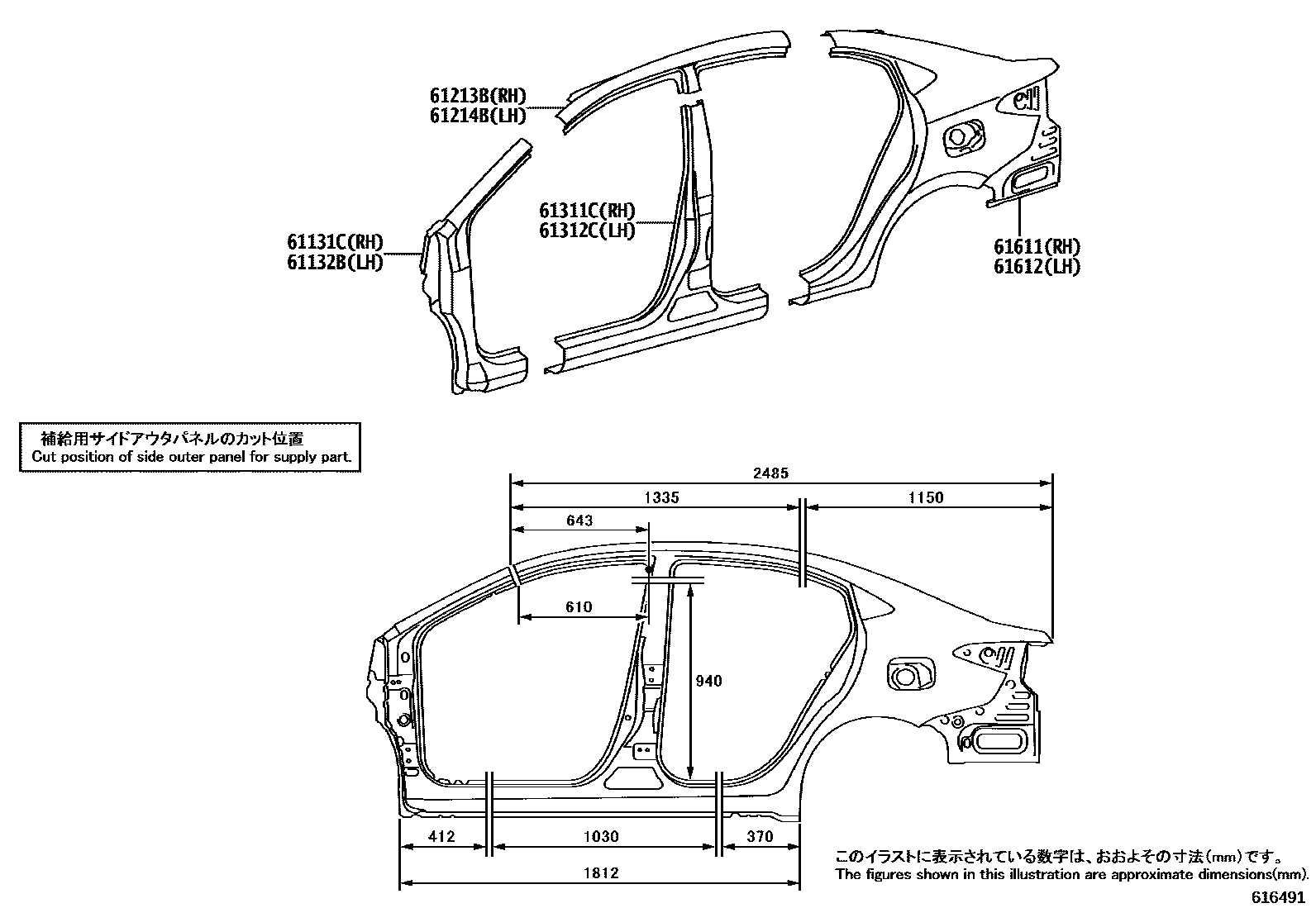

SIDE MEMBER

0001 1OUTSIDE PANEL 0002 1OUTSIDE PANEL 0003 1INSIDE PANEL,RH 0004 1INSIDE PANEL,LH 0005 1INSIDE PANEL,RH 0006 1INSIDE PANEL,LH

61131CPILLAR, FRONT BODY, OUTER RH

main61131-0D200iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

main61131-0D260iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)202212-202501

61132BPILLAR, FRONT BODY, OUTER LH

main61132-0D200iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

main61132-0D260iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)202212-202501

61213BRAIL, ROOF SIDE, OUTER NO.2 RH

main61213-0D100iNSP151..4D..6F..AGT;NSP151..4D..CVT..(AGT,BZ)201911-202211

main61213-0D190iNSP15#..5D..6F..BZ..R201911-202211

main61213-0D200iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)202212-202501

main61213-0D260iNSP151..5D..CVT..BZ..(G,R,V);NSP151..5D..6F..(AGT,GEN)..(G,R,V)202212-202501

61214BRAIL, ROOF SIDE, OUTER NO.2 LH

main61214-0D100iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)201911-202211

main61214-0D190iNSP151..5D..CVT..(AGT,BZ);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202211

main61214-0D200iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)202212-202501

main61214-0D260iNSP151..5D..CVT..BZ..(G,R,V);NSP151..5D..6F..(AGT,GEN)..(G,R,V)202212-202501

61311CPANEL, REAR BODY FRONT OUTSIDE, RH

main61311-0D130iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)201911-202501

main61311-0D190iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)202212-202501

61312CPANEL, REAR BODY FRONT OUTSIDE, LH

main61312-0D130iNSP15#..6F..BZ..R201911-202501

main61312-0D190iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)202212-202501

61611PANEL, QUARTER, RH

main61601-0D440iNSP151..4D..CVT..BZ..D201911-202211

sub61601-0D490

main61601-0D480iNSP151..5D..CVT..(AGT,BZ);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202211

sub61601-0D500

main61601-0D490iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)202212-202501

main61601-0D500iNSP151..5D..CVT..BZ..(G,R,V);NSP151..5D..6F..(AGT,GEN)..(G,R,V)202212-202501

61612PANEL, QUARTER, LH

main61602-0D460iNSP151..4D..CVT..GEN..(D,G);NSP151..4D..6F..(BZ,GEN)..(D,G)201911-202211

sub61602-0D530

main61602-0D500iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202211

sub61602-0D540

main61602-0D530iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)202212-202501

main61602-0D540iNSP151..5D..CVT..BZ..(G,R,V);NSP151..5D..6F..(AGT,GEN)..(G,R,V)202212-202501

8 parts on this diagram · 6 diagrams in section
