MAT & CARPET

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-0D281iNSP151..CVT..BZ..D202201-202206

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-0D260iNSP15#..6F..BZ..R201911-202104

55216CPAD, DASH PANEL INSULATOR, NO.4

main55216-0D180iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202201-202501

58442FCOVER, JACK

main58442-0D230iNSP15#201911-202001

58510DCARPET ASSY, FLOOR, FRONT

main58510-0DF61-C2iNSP15#201911-202001

BLACK/BLACK,TRIM2#

main58510-0DF62-C2iNSP15#..6F..BZ..R202001-202104

BLACK,TRIM2#

58520CCLIP(FOR FRONT FLOOR CARPET)

main90467-05164-C7×2iNSP15#..6F..BZ..R201911-202104

BLACK,TRIM2#,(J)

main90467-T0004-C4×2iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911

BLACK,TRIM2#,(L)

58521BHOOK, FLOOR CARPET

main58521-52070×6iNSP15#..6F..BZ..R201911-202104

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2iNSP15#..6F..BZ..R201911-202104

58560BCLIP(FOR FLOOR CARPET, REAR)

main90467-07049-23iNSP15#..6F..BZ..R201911-202104

BLACK

58561CSILENCER, FRONT FLOOR, NO.1

main58561-0D440iNSP15#..6F..BZ..R201911-202104

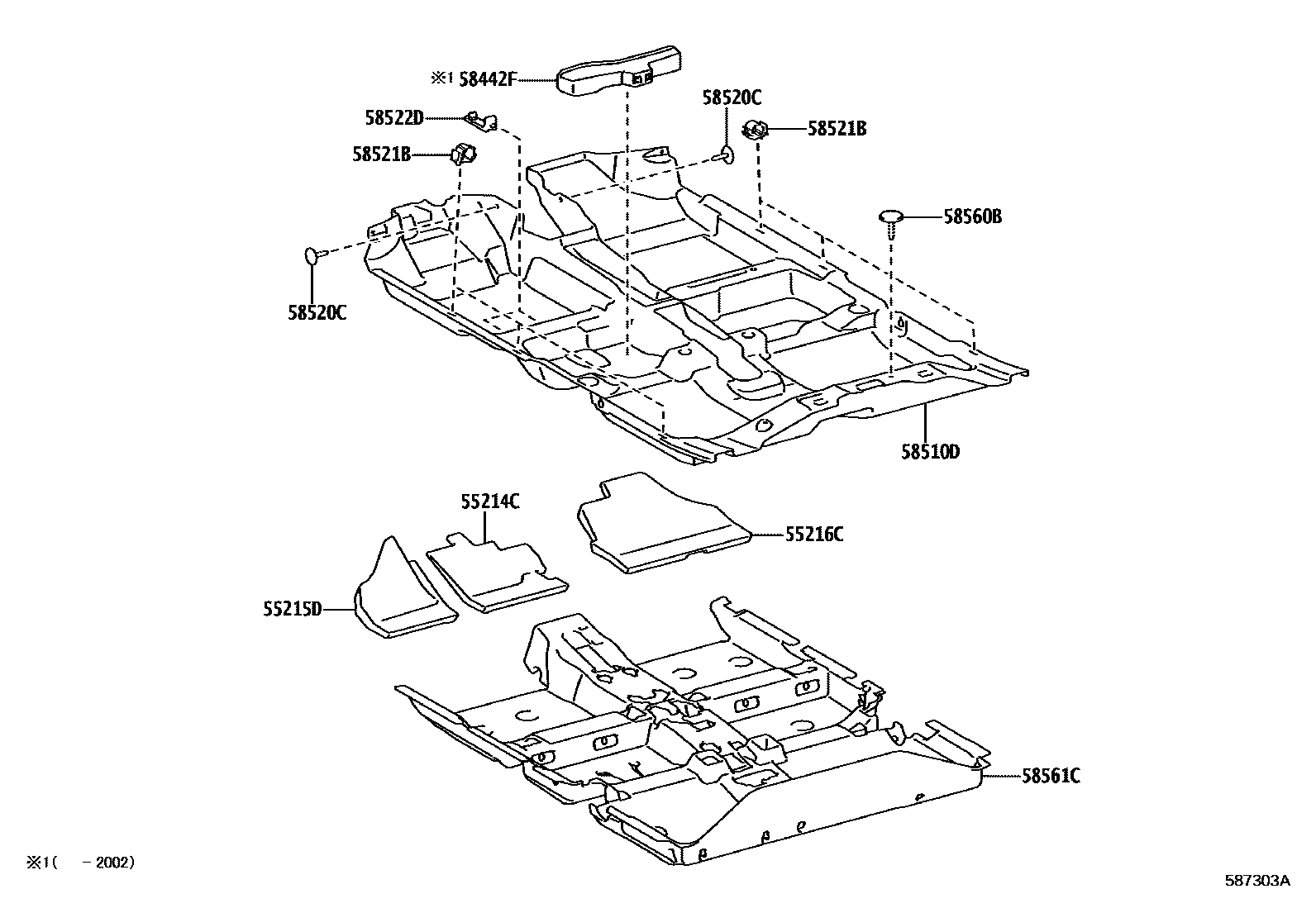

10 parts on this diagram · 1 diagram in section
