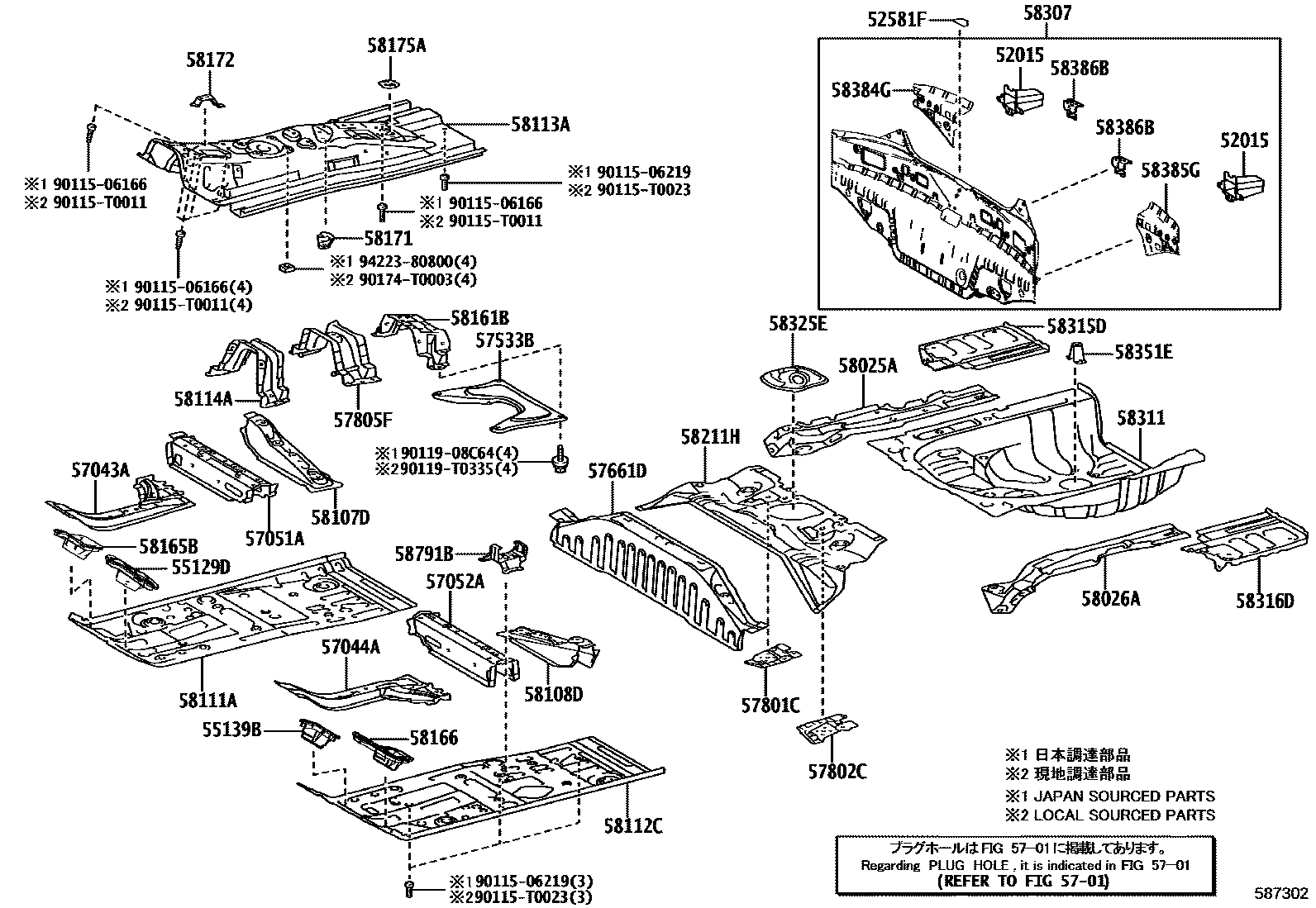

FLOOR PAN & LOWER BACK PANEL

0001 1 0002 1 0003 1 0004 1

52015ARM SUB-ASSY, REAR BUMPER

main52015-0D240iNSP151..5D..BZ..D201911-202501

main52015-0D250iNSP151..4D..CVT..GEN..(D,G);NSP151..4D..6F..(BZ,GEN)..(D,G)201911-202501

52581FPROTECTOR, REAR BUMPER

main52581-0D090iNSP151..4D..CVT..BZ..D201911-202501

55129DCOVER, DASH PANEL HOLE, RH

main55129-0D150iNSP15#..6F..BZ..R201911-202501

55139BCOVER, DASH PANEL HOLE, LH

main55139-0D070iNSP15#..6F..BZ..R201911-202501

5701

57043AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR RH

main57043-0D100iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

57044AREINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, REAR LH

main57044-0D130iNSP15#..6F..BZ..R201911-202501

57051AMEMBER SUB-ASSY, FRONT FLOOR CROSS, RH

main57051-0D110iNSP15#..6F..BZ..R201911-202501

57052AMEMBER SUB-ASSY, FRONT FLOOR CROSS, LH

main57052-0D110iNSP15#..6F..BZ..R201911-202501

57533BBRACE, FRONT FLOOR, CENTER

main57533-0D110iNSP151..AGT;NSP151..5D..6F..GEN..G201911-202501

PARAGUAY SPEC

main57533-0D110iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201

57661DMEMBER, REAR FLOOR CROSS, FRONT

main57661-0D150iNSP15#..6F..BZ..R201911-202501

57801CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 RH

main57801-0D170iNSP15#..6F..BZ..R201911-202501

57802CREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1 LH

main57802-0D160iNSP15#..6F..BZ..R201911-202501

57805FREINFORCEMENT SUB-ASSY, BELT ANCHOR, NO.1

main57805-0D140iNSP15#..6F..BZ..R201911-202501

58025APANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH

main58025-0D140iNSP15#..6F..BZ..R201911-202501

58026APANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH

main58026-0D120iNSP15#..6F..BZ..R201911-202501

58107DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-0D140iNSP15#..6F..BZ..R201911-202501

58108DREINFORCE SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-0D110iNSP15#..6F..BZ..R201911-202501

58111APAN, FRONT FLOOR, RH

main58111-0D280iNSP15#..6F..BZ..R201911-202501

58112CPAN, FRONT FLOOR, LH

main58112-0D916iNSP15#..6F..BZ..R201911-202501

58113APANEL, FRONT FLOOR, CENTER

main58113-0D924iNSP15#..6F..BZ..R201911-202501

58114AREINFORCEMENT, FRONT FLOOR PANEL

main58114-0D151iNSP15#..6F..BZ..R201911-202501

58161BREINFORCEMENT, BELT ANCHOR TO FLOOR PAN

main58161-0D180iNSP151..CVT..BZ..D201911-202501

58165BCOVER, FRONT FLOOR, RH

main58165-0D090iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

58166COVER, FRONT FLOOR, LH

main58166-0D080iNSP15#..6F..BZ..R201911-202501

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-0D110iNSP15#..6F..BZ..R201911-202501

58172BRACKET, COMPUTER MOUNTING, NO.3

main58172-0D050iNSP15#..6F..BZ..R201911-202501

58175AREINFORCEMENT, PARKING BRAKE BASE, NO.1

main58175-0D060iNSP15#..6F..BZ..R201911-202501

58211HPAN, CENTER FLOOR

main58211-0D210iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-0D440iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202501

main58307-0D530iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)201911-202501

58311PAN, REAR FLOOR

main58311-0D260iNSP151..5D..CVT..(AGT,BZ);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202201

main58311-0D270iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)201911-202501

main58311-0D300iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202201-202501

58315DEXTENSION, REAR FLOOR PAN, RH

main58315-0D160iNSP15#..5D..6F..BZ..R201911-202501

main58315-0D170iNSP151..4D..6F..BZ..R201911-202501

58316DEXTENSION, REAR FLOOR PAN, LH

main58316-0D160iNSP151..5D..CVT..BZ..(G,R,V);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202501

main58316-0D170iNSP151..4D..6F..BZ..R201911-202501

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-0D160iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

58351EBRACKET, SPARE WHEEL CLAMP

main58351-0D060iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202201

58384GGUSSET, LOWER BACK, UPPER RH

main58384-0D290iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202501

main58384-0D350iNSP151..4D..CVT..BZ..D201911-202501

58385GGUSSET, LOWER BACK, UPPER LH

main58385-0D220iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202501

main58385-0D280iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)201911-202501

58386BBRACKET, REAR BUMPER COVER, NO.2

main58386-0D190iNSP15#..6F..BZ..R201911-202501

58791BCARRIER, JACK

main58791-0D160iNSP15#..6F..BZ..R201911-202501

9011506166

main90115-06166

9011506219

main90115-06219

90115T0011

main90115-T0011

90115T0023

main90115-T0023

9011908C64

main90119-08C64

90119T0335

main90119-T0335

90174T0003

main90174-T0003

9422380800

main94223-80800

47 parts on this diagram · 4 diagrams in section
