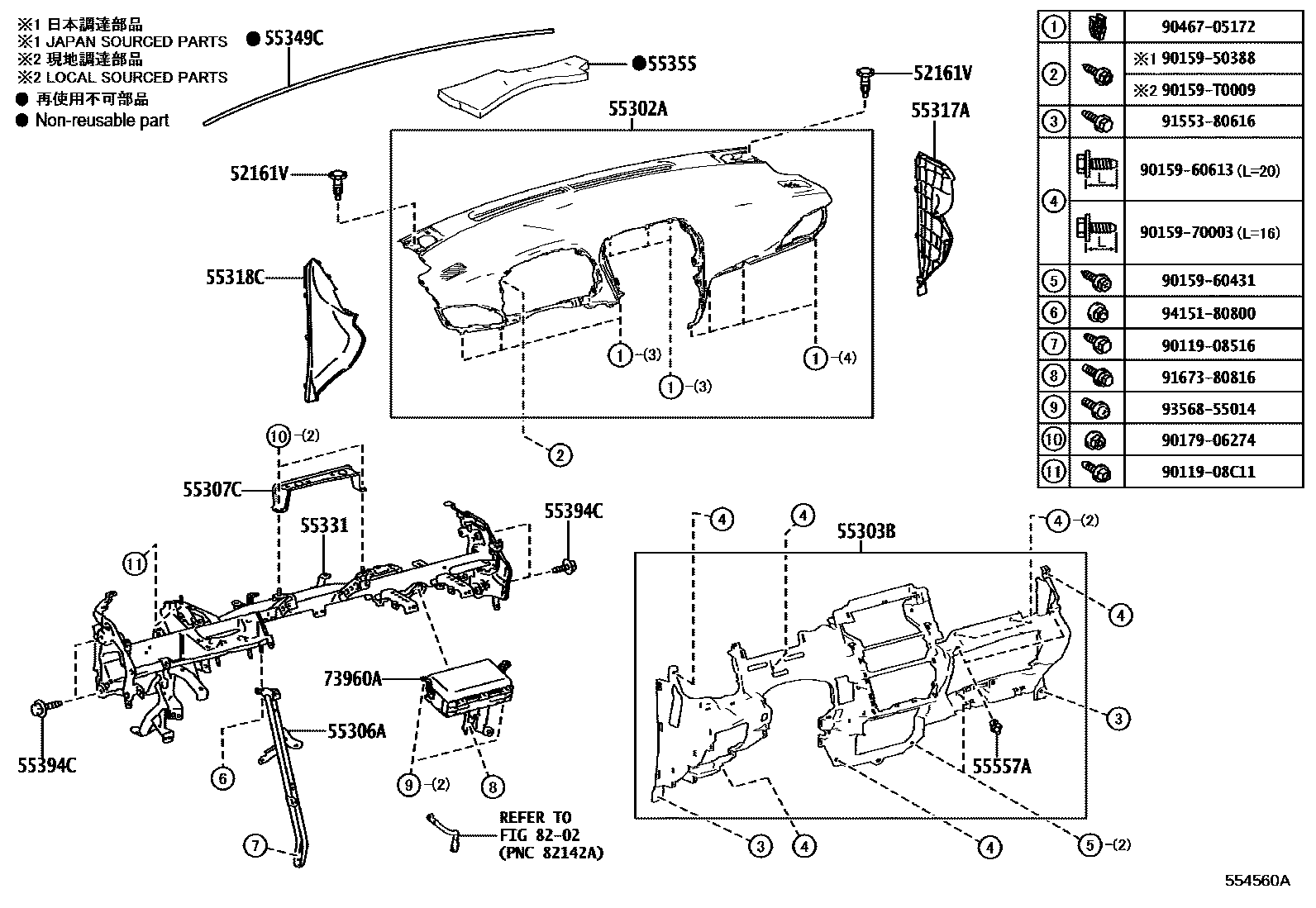

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE

52161VPIECE, INSTRUMENT PANEL

main52161-16010iNSP15#..6F..BZ..R¥120201911-202501

sub52161-0K040¥120

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-0D311-C0iNSP15#..6F..BZ..R201911-202501

BLACK,TRIM2#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-0D271-C0iNSP15#..6F..BZ..R201911-202501

BLACK,TRIM2#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D440iNSP15#..6F..BZ..R201911-202501

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55308-0D160iNSP15#..6F..BZ..R201911-202501

55317APANEL, INSTRUMENT SIDE, RH

main55318-0D301-C0iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55317-0D310-C0iNSP15#..6F..BZ..R201911-202501

BLACK,TRIM2#

55331REINFORCEMENT, INSTRUMENT PANEL

main55330-0D830iNSP15#..6F..BZ..R201911-202201

main55330-0D870iNSP151..CVT..BZ..D202201-202501

55349CCUSHION, INSTRUMENT PANEL

main55349-0D300iNSP15#..6F..BZ..R201911-202501

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-0D460iNSP15#..6F..BZ..R201911-202501

55394CBOLT, INSTRUMENT PANEL

main55394-52010iNSP15#..6F..BZ..R¥100201911-202501

55557ACUSHION, GLOVE COMPARTMENT DOOR CHECK

main55557-52030iNSP15#..6F..BZ..R¥200201911-202501

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-0D230iNSP15#..6F..BZ..R201911-202501

8202

9011908516

main90119-08516¥120

9011908C11

main90119-08C11¥80

9015950388

main90159-50388¥50

9015960431

main90159-60431¥70

9015960613

main90159-60613¥60

9015970003

main90159-70003¥60

90159T0009

main90159-T0009

9017906274

main90179-06274¥70

9046705172

main90467-05172¥60

9155380616

main91553-80616¥70

9167380816

main91673-80816¥80

9356855014

main93568-55014¥70

9415180800

main94151-80800¥80

27 parts on this diagram · 4 diagrams in section
