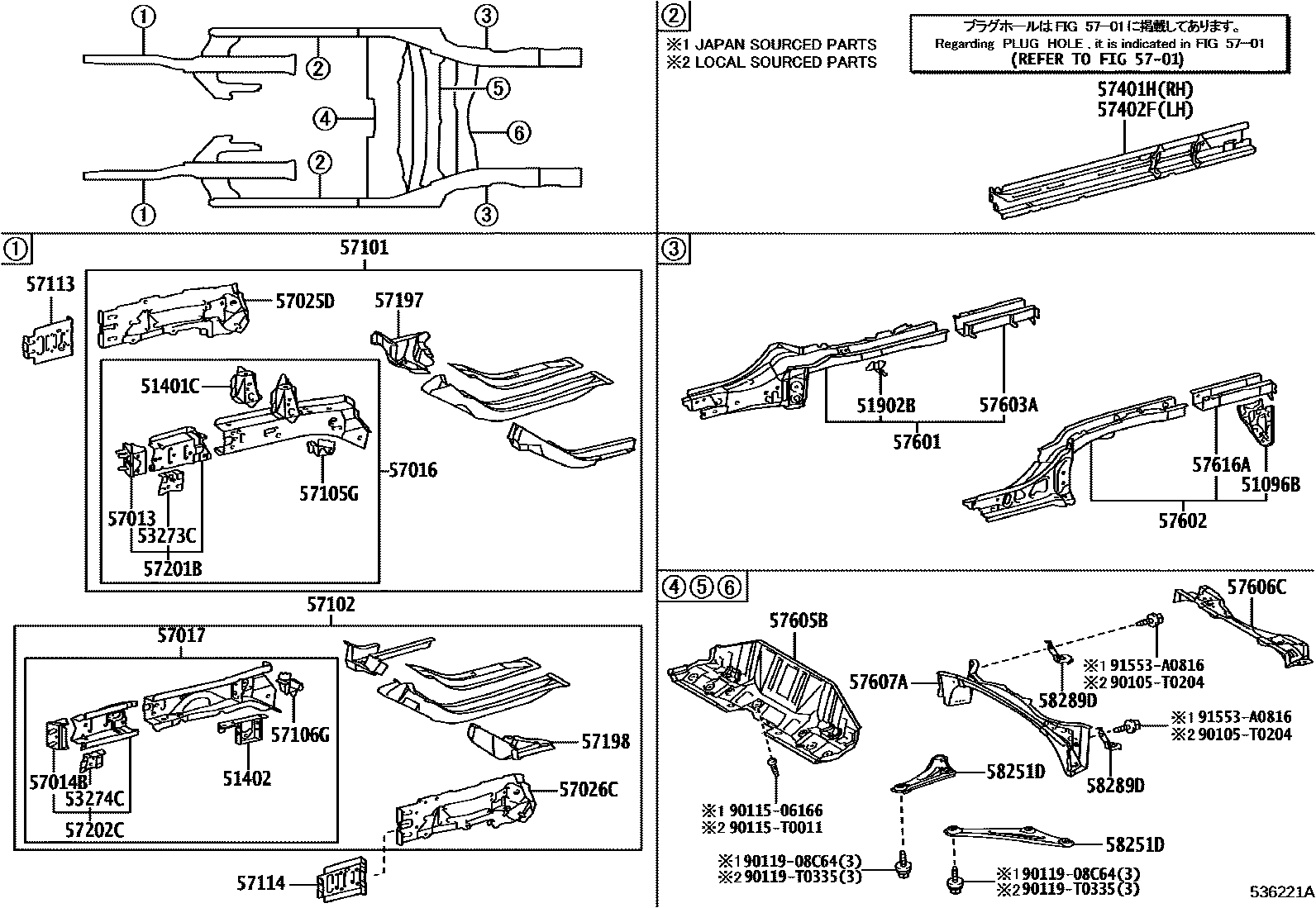

FLOOR SIDE MEMBER

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-0D090iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

51401CBRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH

main51401-0D060iNSP15#..6F..BZ..R201911-202501

51402BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH

main51402-0D050iNSP15#..6F..BZ..R201911-202501

51902BHANGER SUB-ASSY, EXHAUST PIPE, NO.2

main51902-0D070iNSP15#..6F..BZ..R201911-202501

53273CREINFORCEMENT, RADIATOR SUPPORT, RH

main53273-0D150iNSP15#..6F..BZ..R201911-202501

53274CREINFORCEMENT, RADIATOR SUPPORT, LH

main53274-0D100iNSP15#..6F..BZ..R201911-202501

5701

57013BRACKET SUB-ASSY, FRONT SIDE MEMBER, RH

main57013-0D110iNSP15#..6F..BZ..R201911-202501

57014BBRACKET SUB-ASSY, FRONT SIDE MEMBER, LH

main57014-0D100iNSP15#..6F..BZ..R201911-202501

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-0D180iNSP15#..6F..BZ..R201911-202501

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-0D280iNSP15#..6F..BZ..R201911-202501

57025DMEMBER SUB-ASSY, FRONT SIDE, OUTER RH

main57025-0D140iNSP15#..6F..BZ..R201911-202501

57026CMEMBER SUB-ASSY, FRONT SIDE, OUTER LH

main57026-0D150iNSP15#..6F..BZ..R201911-202501

57101MEMBER SUB-ASSY, FRONT SIDE, RH

main57101-0D260iNSP15#..6F..BZ..R201911-202501

57102MEMBER SUB-ASSY, FRONT SIDE, LH

main57102-0D330iNSP15#..6F..BZ..R201911-202501

57105GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT RH

main57105-0D080iNSP15#..6F..BZ..R201911-202501

57106GSPACER SUB-ASSY, SUSPENSION MEMBER, FRONT LH

main57106-0D060iNSP15#..6F..BZ..R201911-202501

57113EXTENSION, FRONT SIDE MEMBER, RH

main57113-0D130iNSP15#..6F..BZ..R201911-202501

57114EXTENSION, FRONT SIDE MEMBER, LH

main57114-0D130iNSP15#..6F..BZ..R201911-202501

57197BOX, TORQUE, FRONT RH

main57197-0D080iNSP150;NSP151..4D..D;NSP151..4D..GEN..G;NSP151..5D..GEN..(D,G);NSP151..(AGT,BZ)..(G,R,V)201911-202501

57198BOX, TORQUE, FRONT LH

main57198-0D080iNSP151..CVT..BZ..D201911-202501

57201BEXTENSION SUB-ASSY, FRONT SIDE MEMBER, RH

main57201-0D070iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

57202CEXTENSION SUB-ASSY, FRONT SIDE MEMBER, LH

main57202-0D080iNSP15#..6F..BZ..R201911-202501

57401HMEMBER SUB-ASSY, FLOOR SIDE, INNER RH

main57401-0D340iNSP15#..6F..BZ..R201911-202501

57402FMEMBER SUB-ASSY, FLOOR SIDE, INNER LH

main57402-0D360iNSP15#..6F..BZ..R201911-202501

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-0D420iNSP151..5D..CVT..BZ..(G,R,V);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202501

main57601-0D430iNSP151..4D..CVT..BZ..D201911-202501

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-0D370iNSP151..5D..BZ..D201911-202501

main57602-0D380iNSP151..4D..6F..BZ..R201911-202501

57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH

main57603-0D210iNSP151..5D..CVT..BZ..(G,R,V);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202501

main57603-0D220iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)201911-202501

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-0D240iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-0D140iNSP15#..6F..BZ..R201911-202501

57607AMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3

main57607-0D090iNSP15#..6F..BZ..R201911-202501

57616AMEMBER, REAR FLOOR SIDE, REAR LH

main57616-0D170iNSP151..5D..CVT..(AGT,BZ);NSP151..5D..6F..(AGT,GEN)..(G,R,V)201911-202501

main57616-0D180iNSP151..4D..CVT..BZ..D201911-202501

58251DBRACE, FLOOR PANEL, FRONT

main58251-0D150iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

RH

main58252-0D140iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

LH

58289DBRACKET, FLOOR BRAKE HOSE, REAR

main58289-0D090iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

RH

main58299-0D090iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

LH

90105T0204

main90105-T0204

9011506166

main90115-06166

90115T0011

main90115-T0011

9011908C64

main90119-08C64

90119T0335

main90119-T0335

91553A0816

main91553-A0816

40 parts on this diagram · 1 diagram in section
