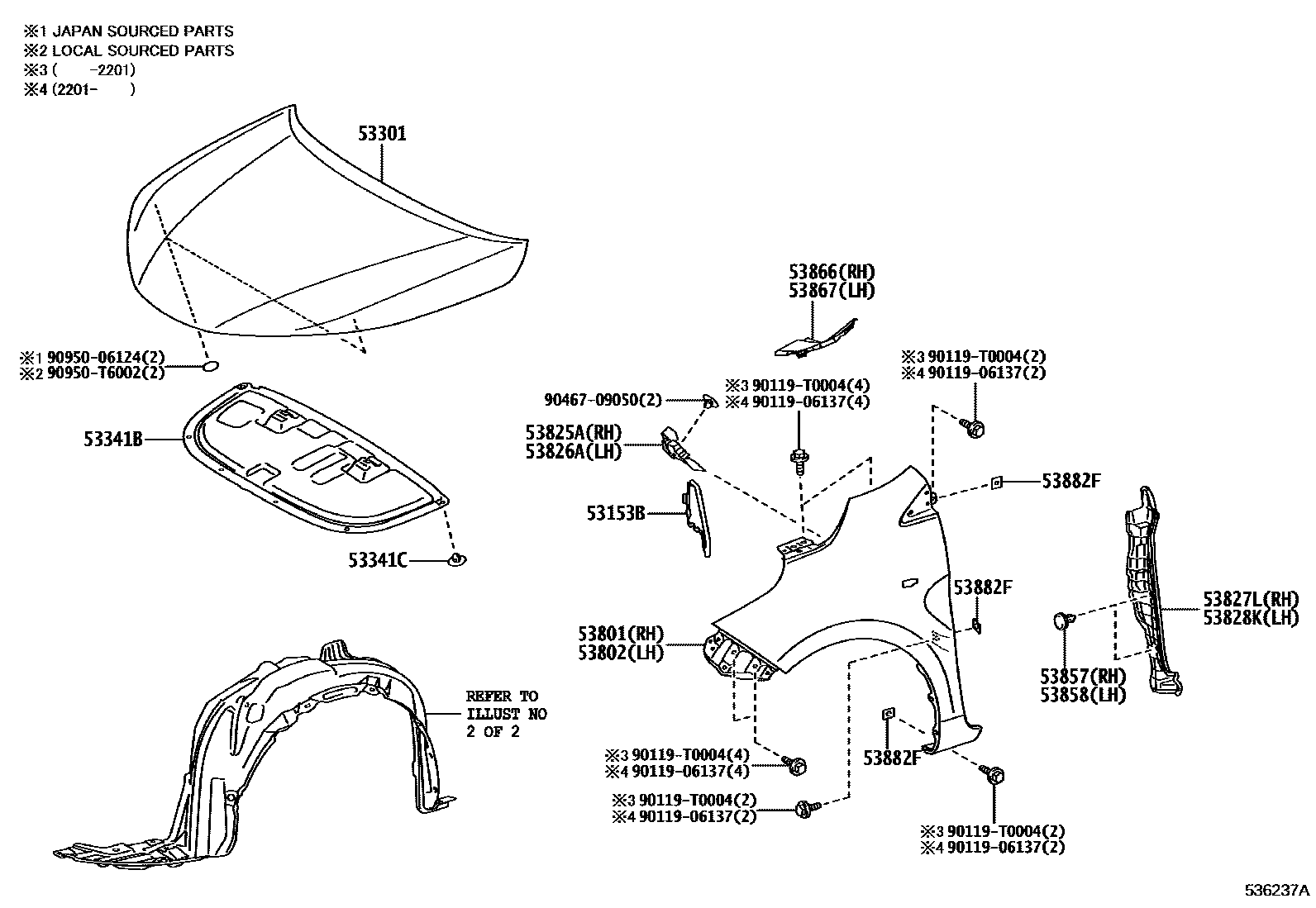

HOOD & FRONT FENDER

0001 1 0002 1

53153BGUIDE, FRONT SIDE AIR

main53153-0D070iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

53301HOOD SUB-ASSY

main53301-0D330iNSP15#..6F..BZ..R201911-202501

53341BINSULATOR, HOOD

main53341-0D360iNSP15#..BZ..D201911-202501

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iNSP15#..BZ..D201911-202501

53801FENDER SUB-ASSY, FRONT RH

main53801-0D240iNSP15#..6F..BZ..R201911-202501

53802FENDER SUB-ASSY, FRONT LH

main53802-0D240iNSP15#..6F..BZ..R201911-202501

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-0D090iNSP15#..6F..BZ..R201911-202501

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-0D090iNSP15#..6F..BZ..R201911-202501

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-0D260iNSP15#..6F..BZ..R201911-202501

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-0D260iNSP15#..6F..BZ..R201911-202501

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iNSP15#..6F..BZ..R201911-202501

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-0D270iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-0D270iNSP15#..6F..BZ..R201911-202501

53882FSEAL, FRONT FENDER

main53882-33060iNSP15#..6F..BZ..R201911-202501

9011906137

main90119-06137

90119T0004

main90119-T0004

9046709050

main90467-09050

9095006124

main90950-06124

90950T6002

main90950-T6002

20 parts on this diagram · 2 diagrams in section
