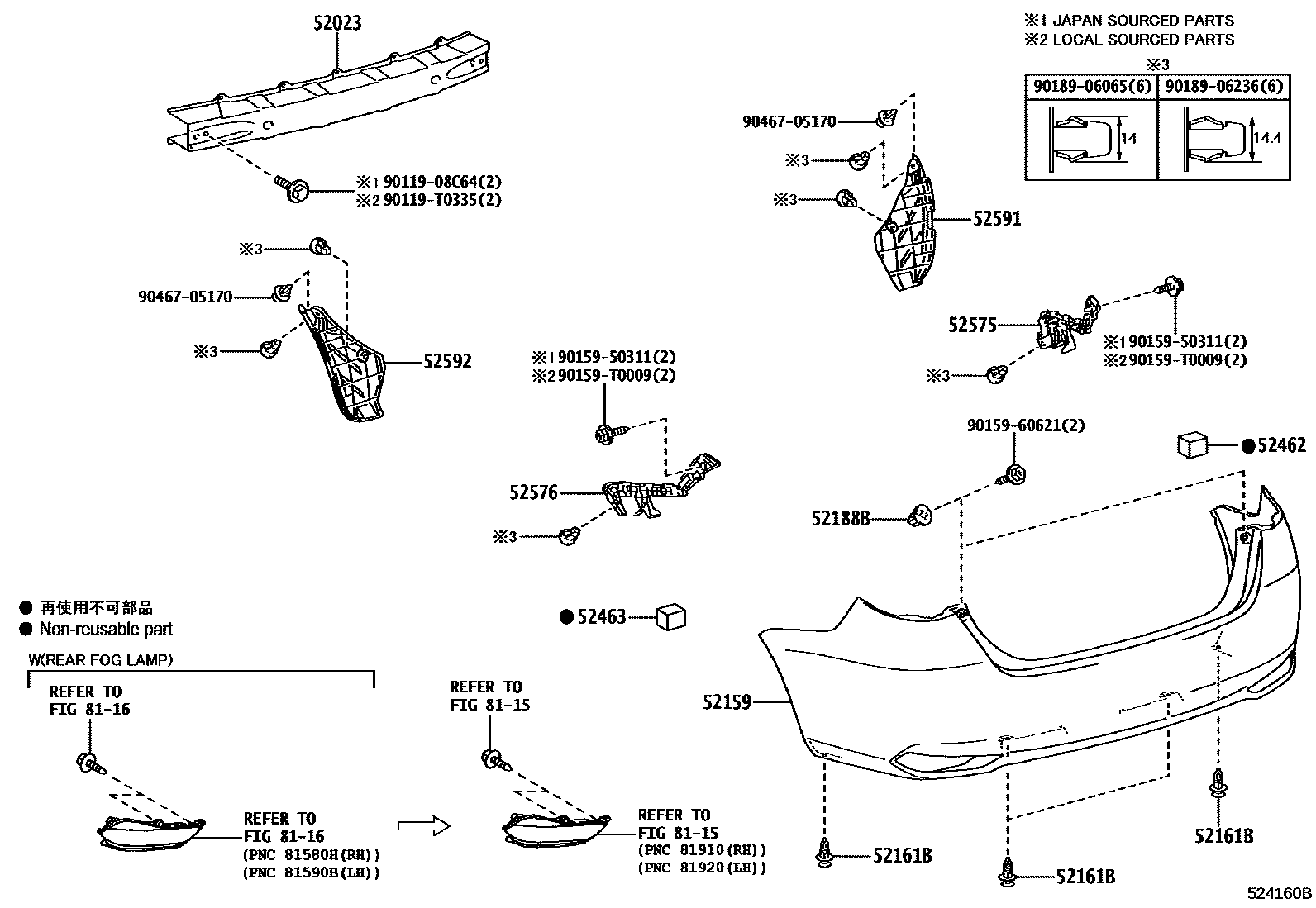

REAR BUMPER & BUMPER STAY
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.
52161BPIECE, REAR BUMPER
main52161-0K040iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)201911-202501
(L)
(J)
sub52161-0K040
52188BSPACER, REAR BUMPER MOUNTING
52462PAD, REAR BUMPER, RH
NO PAINT REQ.
52463PAD, REAR BUMPER, LH
NO PAINT REQ.
52575RETAINER, REAR BUMPER SIDE, RH
main52575-0D380iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)201911-202501
main52575-0D430iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202501
52576RETAINER, REAR BUMPER SIDE, LH
main52576-0D420iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202501
52591SEAL, REAR BUMPER SIDE, RH
main52591-0D490iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202501
52592SEAL, REAR BUMPER SIDE, LH
main52592-0D440iNSP151..4D..6F..AGT..G;NSP151..4D..(AGT,GEN)..(R,V);NSP151..4D..CVT..(AGT,BZ)..(G,R,V)201911-202501
main52592-0D490iNSP150..CVT;NSP151..5D..6F..D;NSP15#..5D..6F..BZ..(D,G);NSP151..5D..CVT..GEN..(D,G)201911-202501
8115
8116
9011908C64
main90119-08C64
90119T0335
main90119-T0335
9015950311
main90159-50311
9015960621
main90159-60621
90159T0009
main90159-T0009
9018906065
main90189-06065
9018906236
main90189-06236
9046705170
main90467-05170
20 parts on this diagram · 2 diagrams in section
