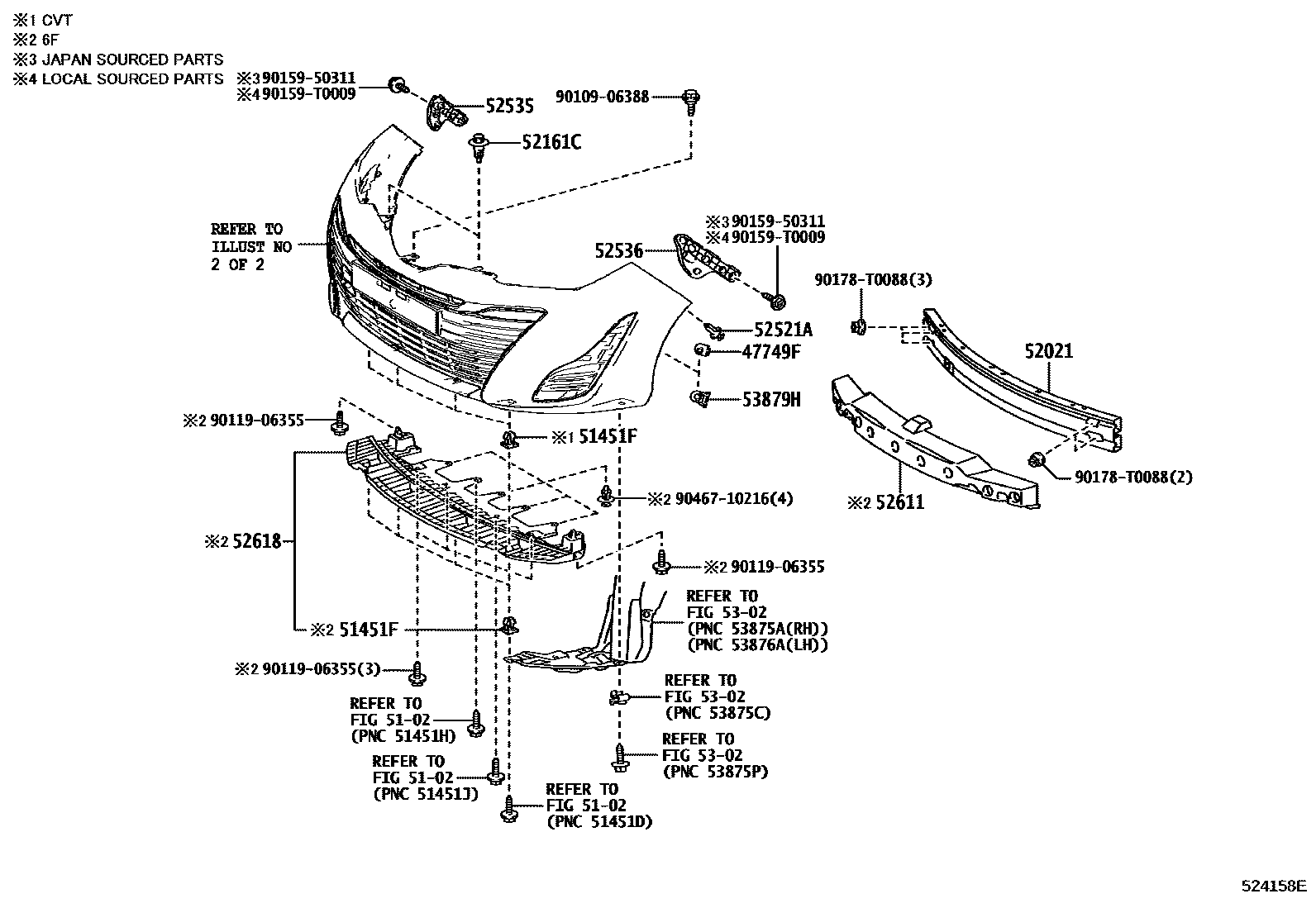

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1 0005 1MLM PACKAGE 0006 1MLM PACKAGE

47749FCLIP, PIN HOLD

main47749-33030iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

5102

51451FGROMMET, NO.1

main90189-06237iNSP15#..6F..BZ..R201911-202501

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-0D190iNSP15#..6F..BZ..R201911-202201

main52021-0D200iNSP151..CVT..BZ..D202201-202501

52161CPIECE, FRONT BUMPER

main52161-0K040iNSP15#..6F..BZ..R201911-202501

(L)

main52161-16010iNSP151..CVT..BZ..D201911-202501

(J)

sub52161-0K040

52521ACLIP(FOR FRONT BUMPER RETAINER)

main90467-05170iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-0D270iNSP15#..6F..BZ..R201911-202501

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-0D270iNSP15#..6F..BZ..R201911-202501

52611ABSORBER, FRONT BUMPER ENERGY

main52611-0D130iNSP15#..6F..BZ..R201911-202110

sub52611-0D200

main52611-0D200iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)202111-202501

52618ABSORBER, FRONT BUMPER, LOWER

main52618-0D140iNSP151..6F..AGT;NSP151..5D..6F..GEN..G201911-202501

5302

53879HRETAINER, FRONT FENDER LINER

main53879-33030iNSP151..CVT..BZ..D201911-202501

9010906388

main90109-06388

9011906355

main90119-06355

9015950311

main90159-50311

90159T0009

main90159-T0009

90178T0088

main90178-T0088

9046710216

main90467-10216

18 parts on this diagram · 6 diagrams in section
