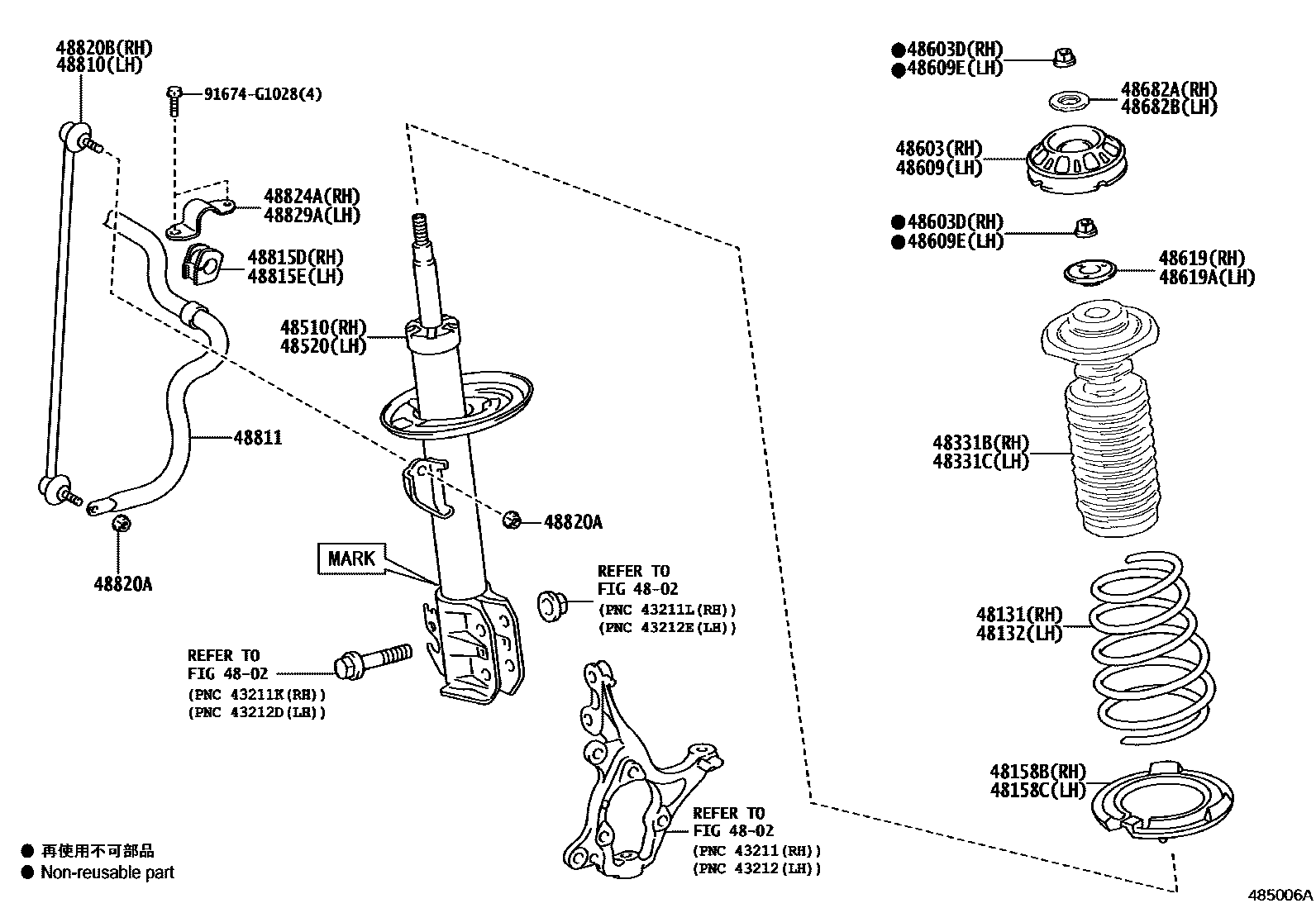

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4802

48131SPRING, FRONT COIL, RH

main48131-0DE90iNSP151..4D..6F..AGT201911-202501

main48131-0DF00iNSP151..5D..AGT;NSP151..4D..CVT..AGT201911-202501

main48131-0DF10iNSP151..5D..6F..GEN..G201911-202501

main48131-0DF20iNSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

48132SPRING, FRONT COIL, LH

main48131-0DE90iNSP151..4D..6F..AGT201911-202501

main48131-0DF00iNSP151..5D..CVT..AGT201911-202501

main48131-0DF10iNSP151..6F..GEN..(R,V)201911-202501

main48131-0DF20iNSP150..CVT;NSP151..CVT..GEN..(D,G);NSP15#..5D..6F..BZ..(D,G)201911-202501

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-0D110iNSP15#..6F..BZ..R201911-202501

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-0D110iNSP15#..6F..BZ..R201911-202501

48331BBUMPER, FRONT SPRING, RH

main48304-0D270iNSP15#..6F..BZ..R201911-202501

48331CBUMPER, FRONT SPRING, LH

main48304-0D270iNSP15#..6F..BZ..R201911-202501

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-0DE30iNSP151..CVT..BZ..D201911-202501

MARK 48510-0DE30

main48510-0DF10iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

MARK 48510-0DF10

48520ABSORBER ASSY, SHOCK, FRONT LH

main48510-0DE30iNSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

MARK 48510-0DE30

main48520-0D460iNSP151..6F..(R,V);NSP151..6F..AGT..G201911-202501

MARK 48520-0D460

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0D230iNSP15#..6F..BZ..R201911-202501

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-T0064iNSP151..4D..BZ..R202107-202201

XL-PLUS PACKAGE(BRAZIL),(L)

main90178-T0064iNSP15#..6F..BZ..R201911-202201

main90178-T0064iNSP151..5D..BZ..R;NSP151..CVT..BZ..(G,V)202107-202501

(L)

main90179-12145iNSP151..CVT..BZ..(G,V)202107-202501

(J)

main90179-12145iNSP151..CVT..BZ..(G,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),(J)

main90179-12145iNSP151..5D..BZ..R;NSP151..CVT..BZ..(G,V)202107-202201

XL-PLUS PACKAGE(BRAZIL),(J)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0D230iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-T0064iNSP151..4D..6F..BZ..G202107-202501

(L)

main90178-T0064iNSP150..CVT;NSP151..6F..D;NSP151..4D..6F..GEN..G;NSP151..CVT..GEN..(D,G);NSP15#..5D..6F..BZ..(D,G)201911-202201

main90178-T0064iNSP151..5D..BZ..R;NSP151..CVT..BZ..(G,V)202107-202201

XL-PLUS PACKAGE(BRAZIL),(L)

main90179-12145iNSP151..4D..6F..BZ..G202107-202501

(J)

main90179-12145iNSP151..5D..BZ..R;NSP151..CVT..BZ..(G,V)202107-202201

XL-PLUS PACKAGE(BRAZIL),(J)

main90179-12145iNSP151..CVT..BZ..(G,V)202201-202501

XL-SPORT PACKAGE(BRAZIL),(J)

48619BEARING, STRUT MOUNTING, RH

main48619-52030iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G201911-202501

48619ABEARING, STRUT MOUNTING, LH

main48619-52030iNSP15#..6F..BZ..R201911-202501

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-0D190iNSP15#..6F..BZ..R201911-202501

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-0D190iNSP15#..6F..BZ..R201911-202501

48810LINK ASSY, FRONT STABILIZER, LH

main48820-0D070iNSP151..6F..(R,V);NSP151..6F..AGT..G201911-202501

48811BAR, STABILIZER, FRONT

main48811-0D250iNSP151..CVT..BZ..D201911-202501

main48811-0D270iNSP15#..6F..BZ..R201911-202501

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-0D240iNSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

main48815-0D260iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-0D240iNSP151..CVT..BZ..D201911-202501

main48815-0D260iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iNSP15#..6F..BZ..R201911-202501

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-0D070iNSP15#..6F..BZ..R201911-202501

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-0D110iNSP15#..6F..BZ..R201911-202501

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-0D110iNSP15#..6F..BZ..R201911-202501

91674G1028

main91674-G1028

26 parts on this diagram · 2 diagrams in section
