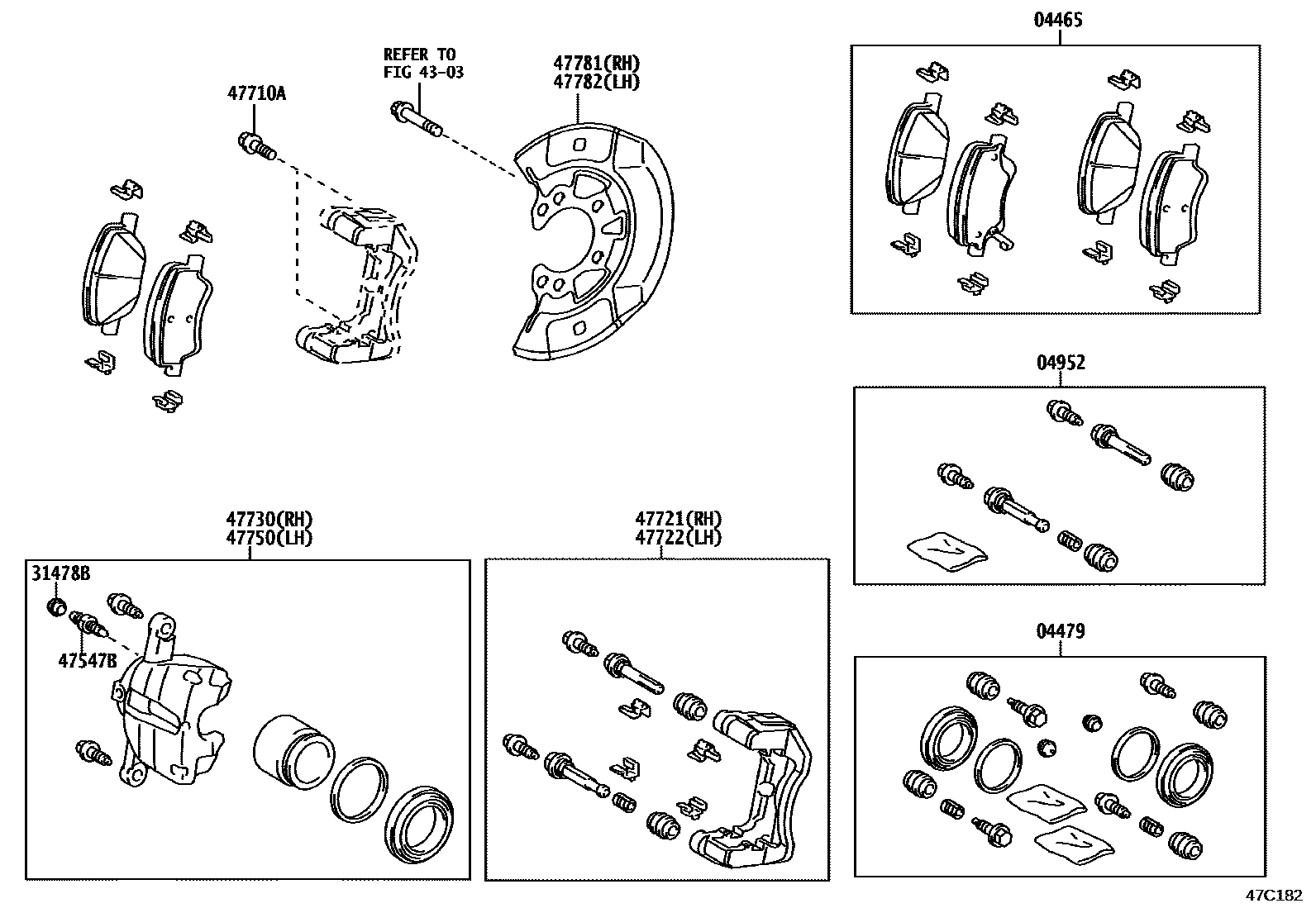

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D101iNSP15#..6F..BZ..R201911-202501

MARK AK PA563H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D170iNSP15#..6F..BZ..R201911-202501

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04952-0D050iNSP15#..6F..BZ..R201911-202501

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-0D030iNSP15#..6F..BZ..R201911-202501

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main90069-39000iNSP15#..6F..BZ..R201911-202501

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12208iNSP15#..6F..BZ..R201911-202501

*12-1.25PX29.5-23

main90105-12208iNSP151..BZ..R202201-202501

*12-1.25PX29.5-23,XL-SPORT PACKAGE(BRAZIL)

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-09530iNSP15#..6F..BZ..R201911-202501

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-09230iNSP15#..6F..BZ..R201911-202501

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D170iNSP15#..6F..BZ..R201911-202501

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D170iNSP15#..6F..BZ..R201911-202501

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D210iNSP15#..6F..BZ..R201911-202501

47782COVER, DISC BRAKE DUST, FRONT LH

main47781-0D210iNSP15#..6F..BZ..R201911-202501

13 parts on this diagram · 1 diagram in section
