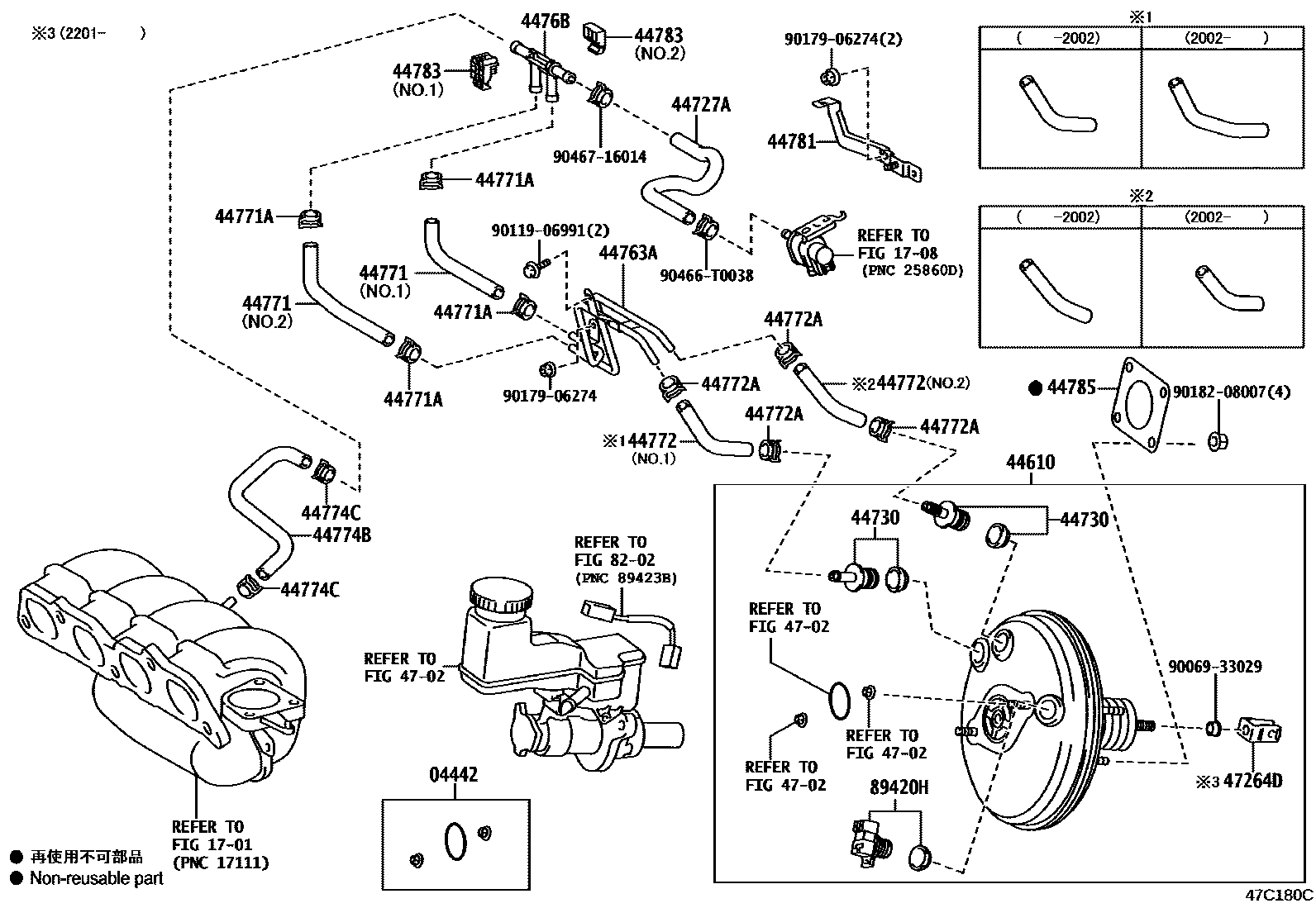

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

04442FITTING KIT, BRAKE BOOSTER

main04442-0D030iNSP151..6F..(R,V);NSP151..6F..AGT..G;NSP151..CVT..(AGT,BZ);NSP151..CVT..GEN..(R,V)201911-202206

1701

1708

44610BOOSTER ASSY, BRAKE

main44610-09F50iNSP15#..CVT201911-202002

main44610-09F60iNSP15#..6F201911-202002

main44610-09H30iNSP150..CVT;NSP151..CVT..GEN..(D,G)202002-202206

sub44610-09J40

main44610-09H40iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)202002-202206

sub44610-09J50

main44610-09J40iNSP151..CVT..GEN..(R,V);NSP151..CVT..(AGT,BZ)..(G,R,V)202206

main44610-09J50iNSP151..6F..(R,V);NSP151..6F..AGT..G202206

44727AHOSE, AIR, NO.2

main17342-0Y090iNSP151..CVT..(AGT,BZ)201911-202501

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-09080iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202206

main44730-F9030iNSP151..6F..(R,V);NSP151..6F..AGT..G202206

44763ATUBE, HOSE TO HOSE, NO.1

main44763-0D350iNSP15#..6F..BZ..R201911-202501

main44763-0D360iNSP151..CVT..(AGT,BZ)201911-202501

4476BEJECTOR, BRAKE BOOSTER VACUUM

main4476B-48010iNSP151..CVT..(AGT,BZ)¥1,250201911-202501

44771HOSE, VACUUM TUBE CONNECTOR

main44771-0D260iNSP150..CVT;NSP151..CVT..GEN..(D,G)201911-202501

NO.2:REFER ILLUST.

main44771-0D270iNSP151..CVT..BZ..D201911-202501

NO.1:REFER ILLUST.

44771ACLIP(FOR VACUUM TUBE CONNECTOR HOSE)

main90467-16014iNSP150..CVT;NSP151..CVT..GEN..(D,G)¥230201911-202501

44772HOSE, CHECK VALVE TO CONNECTOR TUBE

main44772-0D360iNSP15#..CVT201911-202002

NO.1:REFER ILLUST.

main44772-0D361iNSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)202002-202501

NO.1:REFER ILLUST.

main44772-0D370iNSP15#..CVT201911-202002

NO.2:REFER ILLUST.

main44772-0D371iNSP151..CVT..(AGT,BZ)202002-202501

NO.2:REFER ILLUST.

main44772-0D380iNSP15#..6F201911-202002

main44772-0D381iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)202002-202501

44772ACLIP(FOR CHECK VALVE TO CONNECTOR TUBE)

main90467-16014iNSP15#..6F..BZ..R¥230201911-202501

44774HOSE, UNION TO CONNECTOR TUBE

main44774-0D170iNSP15#..6F..BZ..R201911-202501

44774BHOSE, UNION TO CONNECTOR TUBE

main44774-0D160iNSP151..CVT..(AGT,BZ)201911-202501

44774CCLIP(FOR UNION TO CONNECTOR TUBE HOSE)

main90467-16014iNSP151..CVT..(AGT,BZ)¥230201911-202501

44781BRACKET, HOSE

main44781-0D190iNSP151..CVT..(AGT,BZ)201911-202501

44783CLAMP, VACUUM HOSE

main44783-0D020iNSP151..CVT..BZ..D201911-202501

NO.1:REFER ILLUST.

main44783-0D030iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)201911-202501

NO.2:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-12040iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)¥200201911-202501

4702

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-02090iNSP151..CVT..BZ..D202201-202206

8202

89420HSENSOR ASSY, VACUUM

main89421-09030iNSP15#201911-202002

main89421-09060iNSP151..6F..(R,V);NSP151..6F..AGT..G;NSP151..CVT..GEN..(R,V);NSP151..CVT..(AGT,BZ)..(G,R,V)202206

main89421-52020iNSP151..6F..AGT;NSP151..CVT..(AGT,BZ);NSP151..5D..6F..GEN..G¥5,900202002-202501

9006933029

main90069-33029

9011906991

main90119-06991¥60

9017906274

main90179-06274¥70

9018208007

main90182-08007¥100

90466T0038

main90466-T0038

9046716014

main90467-16014¥230

28 parts on this diagram · 2 diagrams in section
