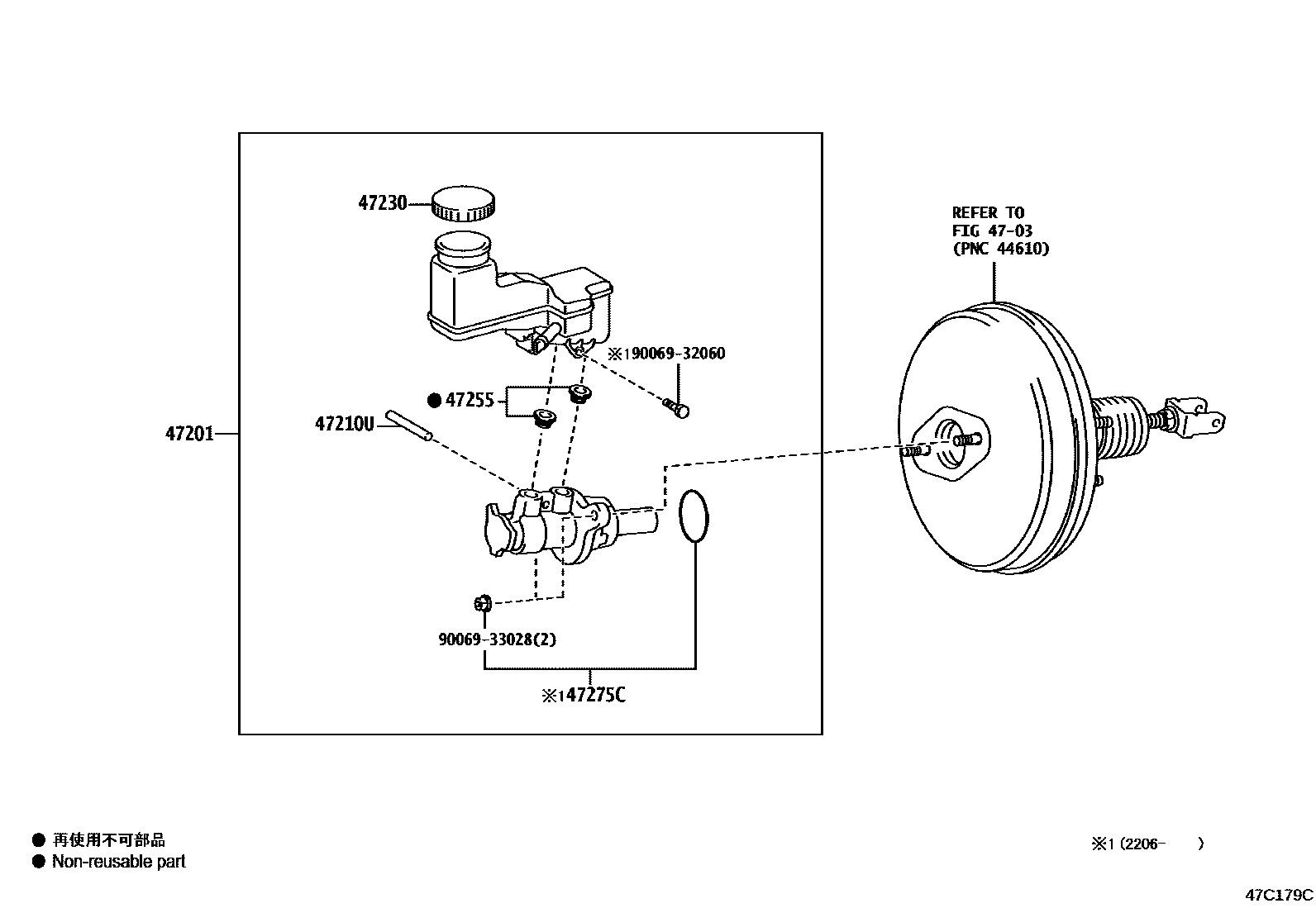

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-09870iNSP151..CVT..(AGT,BZ)201911-202206

sub47201-09B50

main47201-09880iNSP151..6F..(R,V);NSP151..6F..AGT..G201911-202206

sub47201-09B60

main47201-09B50iNSP151..CVT..GEN..(R,V);NSP151..CVT..(AGT,BZ)..(G,R,V)202206

main47201-09B60iNSP151..6F..(R,V);NSP151..6F..AGT..G202206

47210UPIN, STRAIGHT(FOR BRAKE MASTER CYLINDER)

main90015-AE401iNSP15#201911-202112

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-0D160iNSP151..6F..(R,V);NSP151..6F..AGT..G;NSP151..CVT..GEN..(R,V);NSP151..CVT..(AGT,BZ)..(G,R,V)201911-202112

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-09040iNSP151..6F..(R,V);NSP151..6F..AGT..G;NSP151..CVT..GEN..(R,V);NSP151..CVT..(AGT,BZ)..(G,R,V)202206

main47255-09050iNSP150..CVT;NSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..CVT..GEN..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202206

9006932060

main90069-32060

9006933028

main90069-33028

7 parts on this diagram · 2 diagrams in section
