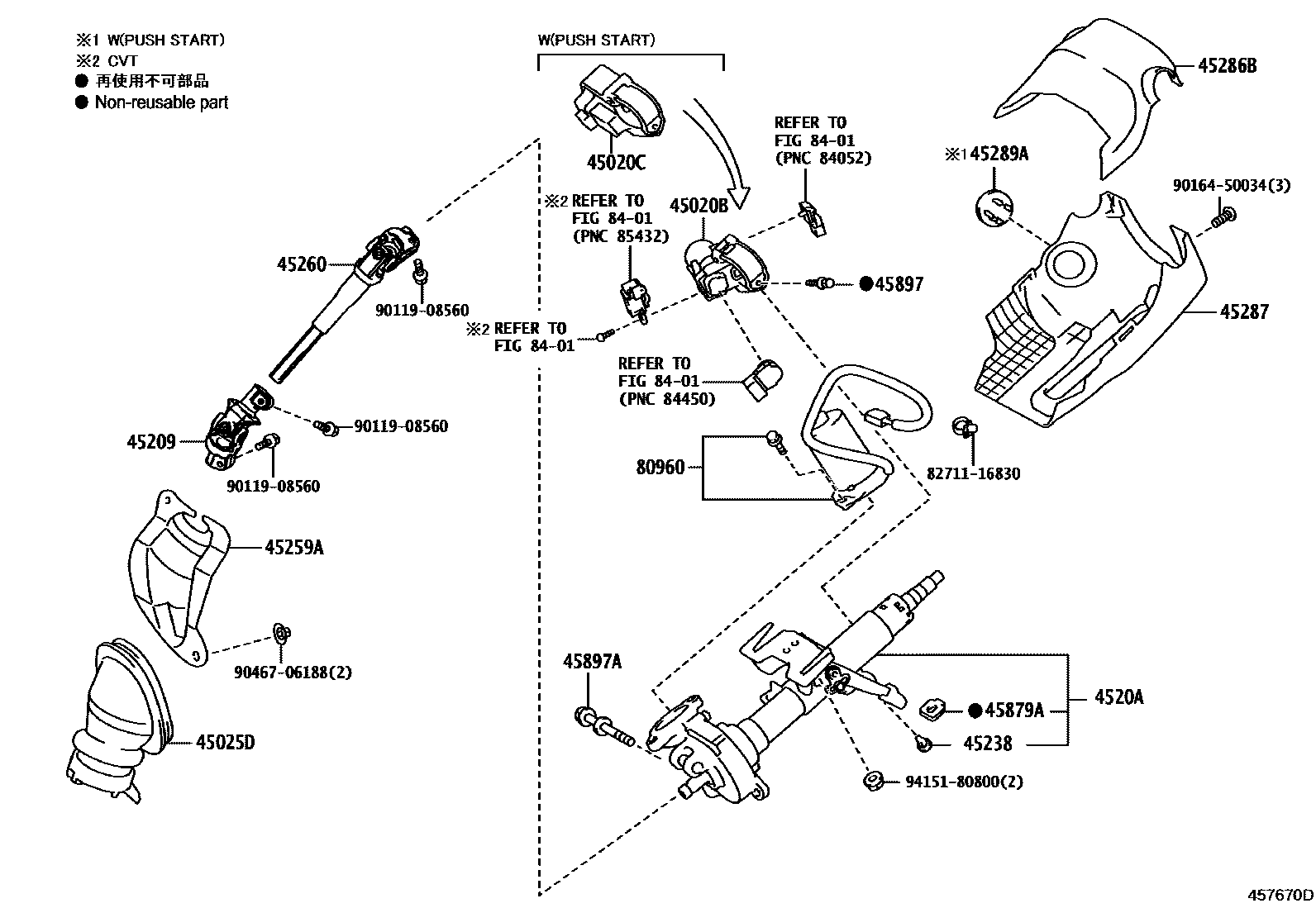

STEERING COLUMN & SHAFT

45020BACTUATOR OR UPPER BRACKET ASSY, STEERING LOCK

main45280-0D270iNSP151..BZ..R;NSP151..4D..CVT..AGT201911-202501

main45280-0D280iNSP150..6F;NSP151..4D..6F..AGT..G;NSP151..5D..6F..AGT..(G,R);NSP151..4D..6F..(AGT,BZ)..(D,R)201911-202501

45020CACTUATOR ASSY, STEERING LOCK(W/ECU)

main45020-30B20iNSP151..AGT..V;NSP151..5D..BZ..R;NSP151..BZ..(G,V);NSP151..4D..GEN..G;NSP151..5D..GEN..(D,G)201911

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-0D230iNSP151..6F..(R,V);NSP151..4D..AGT..G;NSP151..5D..6F..AGT..G;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)201911-202501

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-0D130iNSP15#..6F..BZ..R201911-202501

4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING

main4520A-0D500iNSP151..4D..GEN..D201911-202501

main4520A-0D510iNSP151..4D..GEN..D201911

main4520A-0D510iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL)

main4520A-0D720iNSP151..BZ..R202201-202501

XL-SPORT PACKAGE(BRAZIL)

main4520A-0D720iNSP151..5D..CVT..(AGT,GEN)..(R,V)202201

45238CLAMP, BOLT(FOR STEERING FLEXIBLE COUPLING)

main45238-52010iNSP15#..6F..BZ..R201911-202501

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-0D240iNSP15#..6F..BZ..R201911-202501

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-0D270iNSP151..CVT..BZ..D201911-202501

45286BCOVER, STEERING COLUMN, UPR

main45286-0D311-C0iNSP15#..6F..BZ..R201911-202501

BLACK,TRIM2#

45287COVER, STEERING COLUMN, LWR

main45287-0D281-C0iNSP15#..6F..BZ..R201911-202501

BLACK,TRIM2#

45289ASUPPORT, STEERING COLUMN COVER

main45289-0D120-C0iNSP151..5D..6F..BZ..R201911-202501

BLACK,TRIM2#

main45289-0D120-C0iNSP151..5D..6F..BZ..R201911-202201

XL-PLUS PACKAGE(BRAZIL),BLACK,TRIM2#

main45289-0D120-C0iNSP151..6F..V;NSP151..4D..GEN..R;NSP151..CVT..BZ..(G,V);NSP151..5D..6F..GEN..R;NSP151..4D..CVT..GEN..V202201-202501

XL-SPORT PACKAGE(BRAZIL),BLACK,TRIM2#

45879ACAPSULE, BREAK AWAY

main45879-52010iNSP15#..6F..BZ..R201911-202501

45897BOLT, STEERING LOCK SET

main45897-12020iNSP15#..6F..BZ..R201911-202501

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iNSP15#..6F..BZ..R201911-202501

80960MOTOR ASSY, POWER STEERING

main80960-0D300iNSP15#..6F..BZ..R201911-202501

8401

8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16830

9011908560

main90119-08560

9016450034

main90164-50034

9046706188

main90467-06188

9415180800

main94151-80800

21 parts on this diagram · 1 diagram in section
