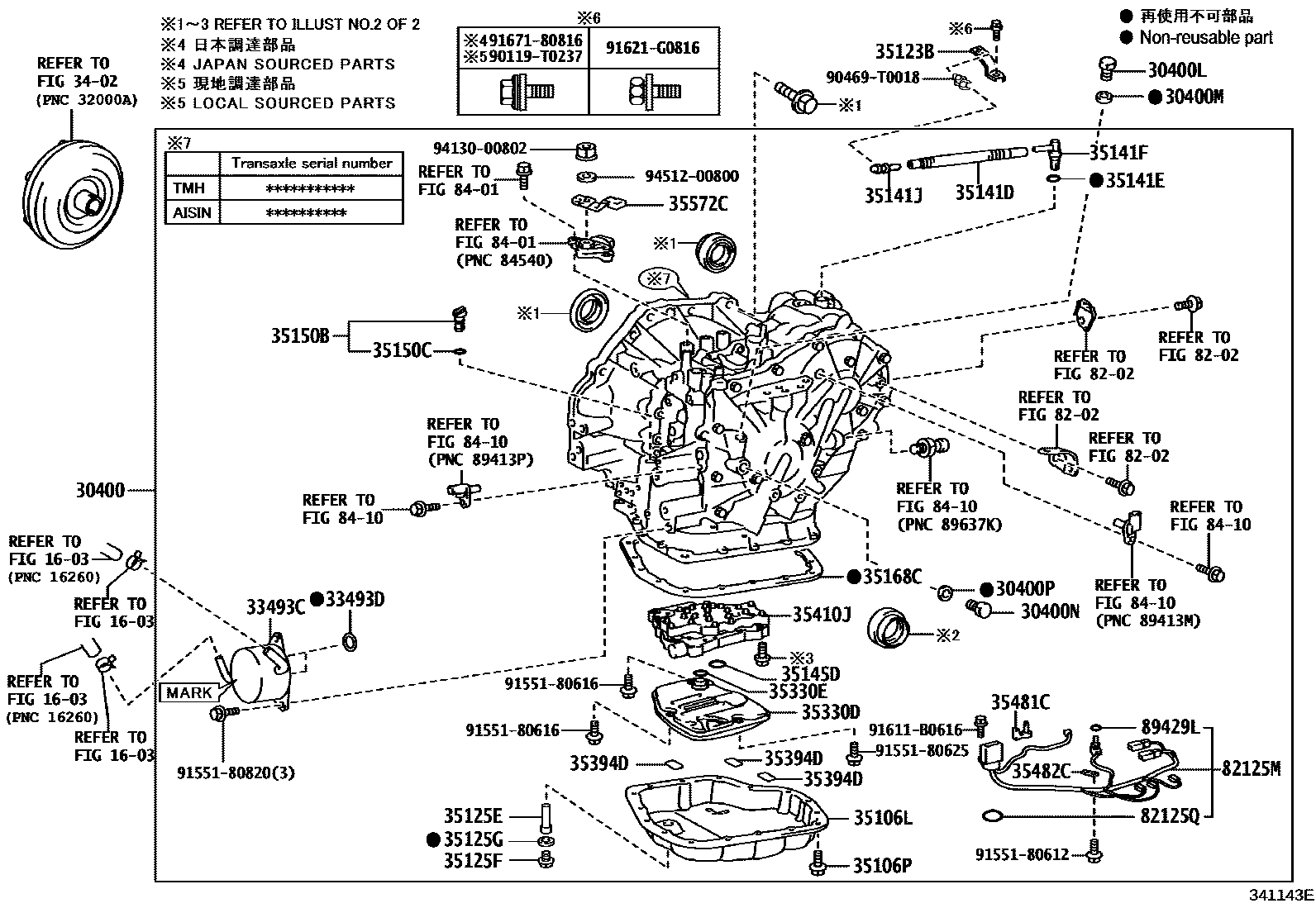

TRANSAXLE ASSY(CVT)

0001 1K312 0002 1K312

1603

30400TRANSAXLE ASSY, CONTINUOUSLY VARIABLE

main30400-52450iNSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,R,V)201911-202501

K312,TMH:REFER TO ILLUST.

main30400-52490iNSP151..CVT..BZ..D201911-202404

K312,AISIN AW:REF.ILLUST

sub30400-52491

main30400-52491iNSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,R,V)202404-202501

K312,AISIN AW:REF.ILLUST

main30400-52550iNSP150..CVT201911

K312

sub30400-52551

main30400-52630iNSP151..5D..CVT..GEN..(R,V)201912-202501

K312

30400LPLUG , FILLER(CVT)

main90341-12025iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥190201911-202501

30400MGASKET, FILLER PLUG(CVT)

main90430-12221iNSP151..CVT..BZ..D¥200201911-202501

30400NPLUG, REFILL(CVT)

main90341-18077iNSP151..5D..CVT..GEN..G¥190201911-202501

30400PGASKET, REFILL PLUG(CVT)

main90430-18008iNSP151..5D..CVT..GEN..G¥110201911-202501

33493CCOOLER, TRANSMISSION OIL

main33493-20100iNSP151..CVT..BZ..D¥11,900201911-202501

MARK = TOYOTA

main33493-20100iNSP151..CVT..GEN..(D,G)¥11,900201912

main33493-52030iNSP151..CVT..BZ..D¥11,900201911-202501

MARK=DENSO

main33493-52030iNSP150..CVT¥11,900201911

33493DRING, O (FOR TRANSMISSION OIL COOLER)

main90301-20012iNSP151..CVT..(AGT,BZ)¥170201911-202501

3402

35106LPAN SUB-ASSY, TRANSAXLE OIL(CVT)

main35106-12200iNSP151..CVT..(AGT,BZ)¥3,590201911-202501

TMH:REFER TO ILLUST.

main35106-12210iNSP150..CVT201911

main35106-12210iNSP151..CVT..BZ..D201911-202501

AISIN AW:REF.ILLUST

35106PBOLT(FOR TRANSAXLE OIL PAN)

main90119-06173iNSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)¥80201911-202501

35123BSKIRT,TRANSMISSION BREATHER

main35123-0D100iNSP150..CVT201911-202501

35125ETUBE, OVERFLOW(CVT)

main35125-12440iNSP151..CVT..(AGT,BZ)¥130201911-202501

TMH:REFER TO ILLUST.

main35125-12440iNSP151..CVT..GEN..(D,G)¥130201912

main35125-12480iNSP151..5D..CVT..GEN..G¥130201911-202501

AISIN AW:REF.ILLUST

main35125-12480iNSP150..CVT¥130201911

35125FPLUG, OVERFLOW(CVT)

main90341-12034iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥190201911-202501

35125GGASKET, OVERFLOW PLUG(CVT)

main90430-12008iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥90201911-202501

35141DHOSE(FOR BREATHER PLUG)

main35121-52020iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥590201911-202501

35141ERING, O(FOR BREATHER PLUG)

main90301-06021iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥140201911-202501

35141FPLUG, BREATHER, NO.1(CVT)

main90930-03191iNSP151..CVT..BZ..D¥260201911-202501

35141JPLUG, BREATHER, NO.2(CVT)

main90930-03149iNSP151..CVT..BZ..D¥220201911-202501

35145DGASKET, TRANSAXLE CASE

main35145-33010iNSP151..CVT..BZ..D¥360201911-202501

35150BPLUG ASSY, TRANSMISSION CASE

main35150-48010iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥280201911-202501

35150CRING, O (FOR TRANSMISSION CASE PLUG)

main90301-09173iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥140201911-202501

35168CGASKET, TRANSAXLE OIL PAN(CVT)

main35168-12091iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥370201911-202501

35330DSTRAINER ASSY, OIL

main35330-12050iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥4,480201911-202501

35330ERING, O (FOR OIL STRAINER)

main90301-22019iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥130201911-202501

35394DMAGNET, OIL CLEANER(CVT)

main35394-30011iNSP151..CVT..GEN¥360201911-202101

TMH:REFER TO ILLUST.

main35394-30011iNSP151..5D..CVT..GEN..G¥360201911-202501

AISIN AW:REF.ILLUST

main35394-30011iNSP150..CVT¥360201911

main35394-48010iNSP151..CVT..GEN..(D,G)¥280202102

main35394-48010iNSP151..4D..CVT..AGT;NSP151..CVT..BZ..(G,R,V);NSP151..4D..CVT..GEN..(R,V)¥280202102-202501

TMH:REFER TO ILLUST.

35410JBODY ASSY, TRANSMISSION VALVE

main35410-12862iNSP151..5D..CVT..AGT¥72,700201911-202501

AISIN AW:REF.ILLUST

main35410-12862iNSP150..CVT¥72,700201911

main35410-12871iNSP151..4D..CVT..GEN..(R,V)¥53,700201911-202501

TMH:REFER TO ILLUST.

main35410-12871iNSP151..CVT..GEN..(D,G)¥53,700201912

35481CCLAMP, VALVE BODY WIRE HARNESS

main35481-12020iNSP151..5D..CVT..AGT¥130201911-202501

AISIN AW:REF.ILLUST

main35481-12020iNSP150..CVT¥130201911

main35481-12030iNSP151..CVT..BZ..D¥140201911-202501

TMH:REFER TO ILLUST.

main35481-12030iNSP151..CVT..GEN..(D,G)¥140201912

35482CCLAMP, TEMPERATURE SENSOR

main35482-73010iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥170201911-202501

35572CLEVER, TRANSMISSION CONTROL SHAFT

main35572-12160iNSP151..CVT..(AGT,BZ)¥390201911-202501

TMH:REFER TO ILLUST.

main35572-12160iNSP151..CVT..GEN..(D,G)¥390201912

main35572-12170iNSP151..5D..CVT..GEN..G¥370201911-202501

AISIN AW:REF.ILLUST

main35572-12170iNSP150..CVT¥370201911

8202

82125MWIRE, TRANSMISSION

main82125-12642iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥1,790201911-202501

82125QRING, O(FOR TRANSMISSION WIRE)

main90301-21009iNSP150..CVT;NSP151..4D..CVT..D;NSP151..4D..CVT..GEN..G;NSP151..5D..CVT..GEN..(D,G);NSP151..CVT..(AGT,BZ)..(G,R,V)¥170201911-202501

8401

8410

89429LRING, O(FOR OIL TEMPERATURE SENSOR)

main90301-06004iNSP151..5D..CVT..AGT..G;NSP151..5D..CVT..(AGT,GEN)..(R,V)¥120201911-202501

90119T0237

main90119-T0237

90469T0018

main90469-T0018

9155180612

main91551-80612¥60

9155180616

main91551-80616¥60

9155180625

main91551-80625¥60

9155180820

main91551-80820¥80

91611B0616

main91611-B0616¥110

91621G0816

main91621-G0816¥140

9167180816

main91671-80816¥80

9413000802

main94130-00802¥90

9451200800

main94512-00800¥80

47 parts on this diagram · 2 diagrams in section
