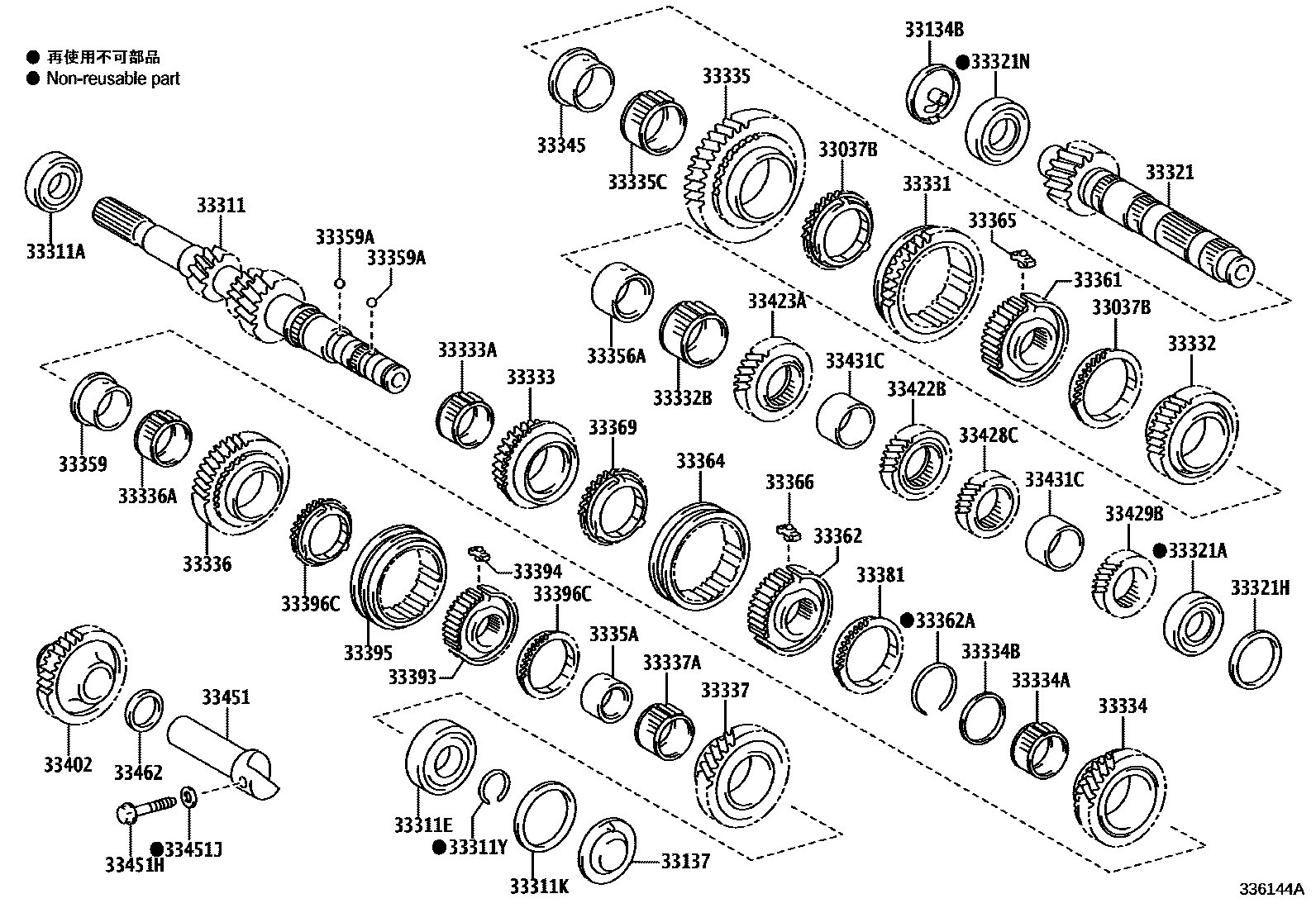

TRANSMISSION GEAR (MTM)

33037BRING SET, SYNCHRONIZER, NO.1

main33037-0D090iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

33134BCOVER, OUTPUT SHAFT(MTM)

main33134-0D080iNSP15#..6F..BZ..R201911-202501

33137COVER, INPUT SHAFT(MTM)

main33137-0D030iNSP15#..6F..BZ..R201911-202501

33311SHAFT, INPUT

main33311-0D110iNSP15#..6F..BZ..R201911-202501

33311ABEARING (FOR INPUT SHAFT FRONT)

main90363-S0002iNSP15#..6F..BZ..R201911-202501

33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)

main90363-S0003iNSP15#..6F..BZ..R201911-202501

33311KSHIM (FOR INPUT SHAFT REAR BEARING)

main90564-54103iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥120201911-202501

T=1.30,MARK 08

main90564-54104iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=1.35,MARK 09

main90564-54105iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=1.40,MARK 10

main90564-54106iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=1.45,MARK 11

main90564-54107iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=1.50,MARK 12

main90564-54108iNSP15#..6F..BZ..R¥120201911-202501

T=1.55,MARK 13

main90564-54109iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥120201911-202501

T=1.60,MARK 14

main90564-54110iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥120201911-202501

T=1.65,MARK 15

main90564-54111iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥120201911-202501

T=1.70,MARK 16

main90564-54112iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥120201911-202501

T=1.75,MARK 17

main90564-54113iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥120201911-202501

T=1.80,MARK 18

main90564-54114iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥120201911-202501

T=1.85,MARK 19

33311YRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)

main90520-25059iNSP15#..6F..BZ..R¥90201911-202501

T=1.65,MARK A

main90520-25062iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥90201911-202501

T=1.70,MARK B

main90520-25063iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥90201911-202501

T=1.75,MARK C

main90520-25064iNSP151..6F..(R,V);NSP151..6F..AGT..G¥90201911-202501

T=1.80,MARK D

main90520-25065iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥90201911-202501

T=1.85,MARK E

main90520-25066iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥90201911-202501

T=1.90,MARK F

main90520-25067iNSP15#..6F..BZ..R¥90201911-202501

T=1.95,MARK G

main90520-25068iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥90201911-202501

T=2.00,MARK H

main90520-25069iNSP151..6F..(R,V);NSP151..6F..AGT..G¥90201911-202501

T=2.05,MARK J

main90520-25070iNSP151..6F..(R,V);NSP151..6F..AGT..G¥90201911-202501

T=2.10,MARK K

main90520-25071iNSP151..6F..(R,V);NSP151..6F..AGT..G¥90201911-202501

T=2.15,MARK L

main90520-25072iNSP15#..6F..BZ..R¥90201911-202501

T=2.20,MARK M

main90520-25074iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥90201911-202501

T=2.25,MARK N

main90520-25075iNSP15#..6F..BZ..R¥90201911-202501

T=2.30,MARK P

33321SHAFT, OUTPUT

main33321-02210iNSP151..6F..GEN..(R,V)202002-202501

main33321-0D280iNSP151..6F..AGT201911-202501

33321ABEARING (FOR OUTPUT SHAFT REAR)

main90366-30096iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥1,850201911-202501

33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)

main90564-45153iNSP15#..6F..BZ..R¥120201911-202501

T=1.750,MARK 50

main90564-45154iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥120201911-202501

T=1.755,MARK 51

main90564-45155iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥120201911-202501

T=1.800,MARK 52

main90564-45156iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=1.825,MARK 53

main90564-45157iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=1.850,MARK 54

main90564-45158iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥120201911-202501

T=1.875,MARK 55

main90564-45159iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=1.900,MARK 56

main90564-45160iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥120201911-202501

T=1.925,MARK 57

main90564-45161iNSP15#..6F..BZ..R¥120201911-202501

T=1.950,MARK 58

main90564-45162iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=1.975,MARK 59

main90564-45163iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=2.000,MARK 60

main90564-45164iNSP15#..6F..BZ..R¥120201911-202501

T=2.025,MARK 61

main90564-45165iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=2.050,MARK 62

main90564-45166iNSP15#..6F..BZ..R¥120201911-202501

T=2.075,MARK 63

main90564-45167iNSP15#..6F..BZ..R¥120201911-202501

T=2.100,MARK 64

main90564-45168iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=2.125,MARK 65

main90564-45169iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=2.150,MARK 66

main90564-45170iNSP151..6F..(R,V);NSP151..6F..AGT..G¥120201911-202501

T=2.175,MARK 67

main90564-45171iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥120201911-202501

T=2.200,MARK 68

main90564-45172iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥190201911-202501

T=2.225,MARK 69

main90564-45173iNSP15#..6F..BZ..R¥190201911-202501

T=2.250,MARK 70

main90564-45174iNSP151..6F..(R,V);NSP151..6F..AGT..G¥190201911-202501

T=2.275,MARK 71

main90564-45175iNSP151..6F..(R,V);NSP151..6F..AGT..G¥190201911-202501

T=2.300,MARK 72

main90564-45176iNSP15#..6F..BZ..R¥190201911-202501

T=2.325,MARK 73

main90564-45177iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥190201911-202501

T=2.350,MARK 74

main90564-45178iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥190201911-202501

T=2.375,MARK 75

main90564-45179iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥190201911-202501

T=2.400,MARK 76

main90564-45180iNSP15#..6F..BZ..R¥190201911-202501

T=2.425,MARK 77

main90564-45181iNSP151..6F..(R,V);NSP151..6F..AGT..G¥190201911-202501

T=2.450,MARK 78

main90564-45182iNSP151..6F..(R,V);NSP151..6F..AGT..G¥190201911-202501

T=2.475,MARK 79

main90564-45183iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥190201911-202501

T=2.500,MARK 80

main90564-45184iNSP15#..6F..BZ..R¥190201911-202501

T=2.525,MARK 81

main90564-45185iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥190201911-202501

T=2.550,MARK 82

main90564-45186iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥190201911-202501

T=2.575,MARK 83

main90564-45187iNSP15#..6F..BZ..R¥190201911-202501

T=2.600,MARK 84

main90564-45188iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥190201911-202501

T=2.625,MARK 85

main90564-45189iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥190201911-202501

T=2.650,MARK 86

main90564-45190iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥190201911-202501

T=2.675,MARK 87

main90564-45191iNSP15#..6F..BZ..R¥190201911-202501

T=2.700,MARK 88

main90564-45192iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥190201911-202501

T=2.725,MARK 89

main90564-45193iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥190201911-202501

T=2.750,MARK 90

main90564-45194iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥190201911-202501

T=2.775,MARK 91

main90564-45195iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥190201911-202501

T=2.800,MARK 92

33321NBEARING (FOR OUTPUT SHAFT FRONT)

main90366-28019iNSP15#..6F..BZ..R¥1,890201911-202501

33331GEAR, REVERSE

main33331-20090iNSP15#..6F..BZ..R¥8,000201911-202501

33332GEAR, 2ND

main33332-0D090iNSP15#..6F..BZ..R201911-202501

33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)

main90364-S0004iNSP15#..6F..BZ..R201911-202501

33333GEAR, 3RD

main33034-0D100iNSP15#..6F..BZ..R201911-202501

33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)

main90364-S0001iNSP15#..6F..BZ..R201911-202501

33334GEAR, 4TH

main33035-0D090iNSP15#..6F..BZ..R201911-202501

33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)

main90364-S0001iNSP15#..6F..BZ..R201911-202501

33334BSPACER (FOR 4TH GEAR BEARING)

main90560-37004iNSP15#..6F..BZ..R¥70201911-202501

33335GEAR, 1ST

main33335-0D100iNSP15#..6F..BZ..R201911-202501

33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)

main90364-S0003iNSP15#..6F..BZ..R201911-202501

33336GEAR, 5TH

main33036-0D160iNSP15#..6F..BZ..R201911-202501

33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)

main90364-S0001iNSP15#..6F..BZ..R201911-202501

33337GEAR SUB-ASSY, 6TH

main33037-0D080iNSP15#..6F..BZ..R201911-202501

33337ABEARING, NEEDLE ROLLER (FOR 6TH GEAR)

main90364-35011iNSP15#..6F..BZ..R¥1,950201911-202501

33345BUSH, 1ST GEAR

main33345-0D020iNSP15#..6F..BZ..R201911-202501

33356ARACE, 2ND GEAR BEARING INNER

main33356-0D010iNSP15#..6F..BZ..R201911-202501

33359RACE, 5TH GEAR BEARING INNER

main33359-0D010iNSP15#..6F..BZ..R201911-202501

33359ABALL, 5TH GEAR BEARING INNER RACE LOCK

main90360-05012iNSP15#..6F..BZ..R¥100201911-202501

3335ARACE, 6TH GEAR BEARING, INNER(MTM)

main3335A-20010iNSP15#..6F..BZ..R¥620201911-202501

33361HUB, TRANSMISSION CLUTCH, NO.1

main33361-0D100iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

33362HUB, TRANSMISSION CLUTCH, NO.2

main33362-0D080iNSP15#..6F..BZ..R201911-202501

33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)

main90520-35034iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥90201911-202501

T=2.27,MARK 0

main90520-35035iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥90201911-202501

T=2.32,MARK 1

main90520-35036iNSP151..6F..(R,V);NSP151..6F..AGT..G¥90201911-202501

T=2.37,MARK 2

main90520-35037iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥90201911-202501

T=2.42,MARK 3

main90520-35038iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥90201911-202501

T=2.47,MARK 4

main90520-35039iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥90201911-202501

T=2.52,MARK 5

main90520-35040iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥90201911-202501

T=2.57,MARK 6

main90520-35041iNSP151..6F..AGT;NSP151..5D..6F..GEN..G¥90201911-202501

T=2.62,MARK 7

33364SLEEVE, TRANSMISSION HUB, NO.2

main33364-0D070iNSP15#..6F..BZ..R201911-202501

33365KEY, SYNCHROMESH SHIFTING, NO.1

main33365-20080iNSP15#..6F..BZ..R¥180201911-202501

33366KEY, SYNCHROMESH SHIFTING, NO.2

main33365-20080iNSP15#..6F..BZ..R¥180201911-202501

33369RING, SYNCHRONIZER, NO.3

main33369-0D080iNSP15#..6F..BZ..R201911-202501

(L)

main33369-20050iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥2,200201911-202501

(J)

33381RING, 2ND SYNCHRONIZER OUTER

main33381-20020iNSP15#..6F..BZ..R¥2,200201911-202501

33393HUB, TRANSMISSION CLUTCH, NO.3

main33393-0D080iNSP15#..6F..BZ..R201911-202501

33394KEY, SYNCHROMESH SHIFTING, NO.3

main33365-20080iNSP15#..6F..BZ..R¥180201911-202501

33395SLEEVE, TRANSMISSION HUB, NO.3

main33395-0D090iNSP15#..6F..BZ..R201911-202501

33396CRING, SYNCHRONIZER, NO.5(MTM)

main33396-0D020iNSP15#..6F..BZ..R201911-202501

33402GEAR SUB-ASSY, REVERSE IDLER

main33402-0D100iNSP15#..6F..BZ..R201911-202501

33422BGEAR, 4TH DRIVEN

main33422-0D090iNSP15#..6F..BZ..R201911-202501

33423AGEAR, 3RD DRIVEN

main33423-0D100iNSP15#..6F..BZ..R201911-202501

33428CGEAR, 5TH DRIVEN

main33428-0D160iNSP15#..6F..BZ..R201911-202501

33429BGEAR, 6TH DRIVEN

main33429-0D060iNSP15#..6F..BZ..R201911-202501

33431CSPACER, OUTPUT GEAR

main33431-0D050iNSP15#..6F..BZ..R201911-202107

main33431-0D050iNSP151..6F..AGT;NSP151..5D..6F..GEN..G202107-202501

(L)

main33431-20090iNSP151..6F..(R,V);NSP151..6F..AGT..G¥940202107-202501

(J)

33451SHAFT, REVERSE IDLER GEAR

main33451-20060iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)¥1,750201911-202501

33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)

main90105-08150iNSP15#..6F..BZ..R¥110201911-202501

33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)

main90430-08010iNSP15#..6F..BZ..R¥70201911-202501

33462WASHER, REVERSE IDLER THRUST

main33462-20090iNSP15#..6F..BZ..R¥70201911-202501

53 parts on this diagram · 1 diagram in section
