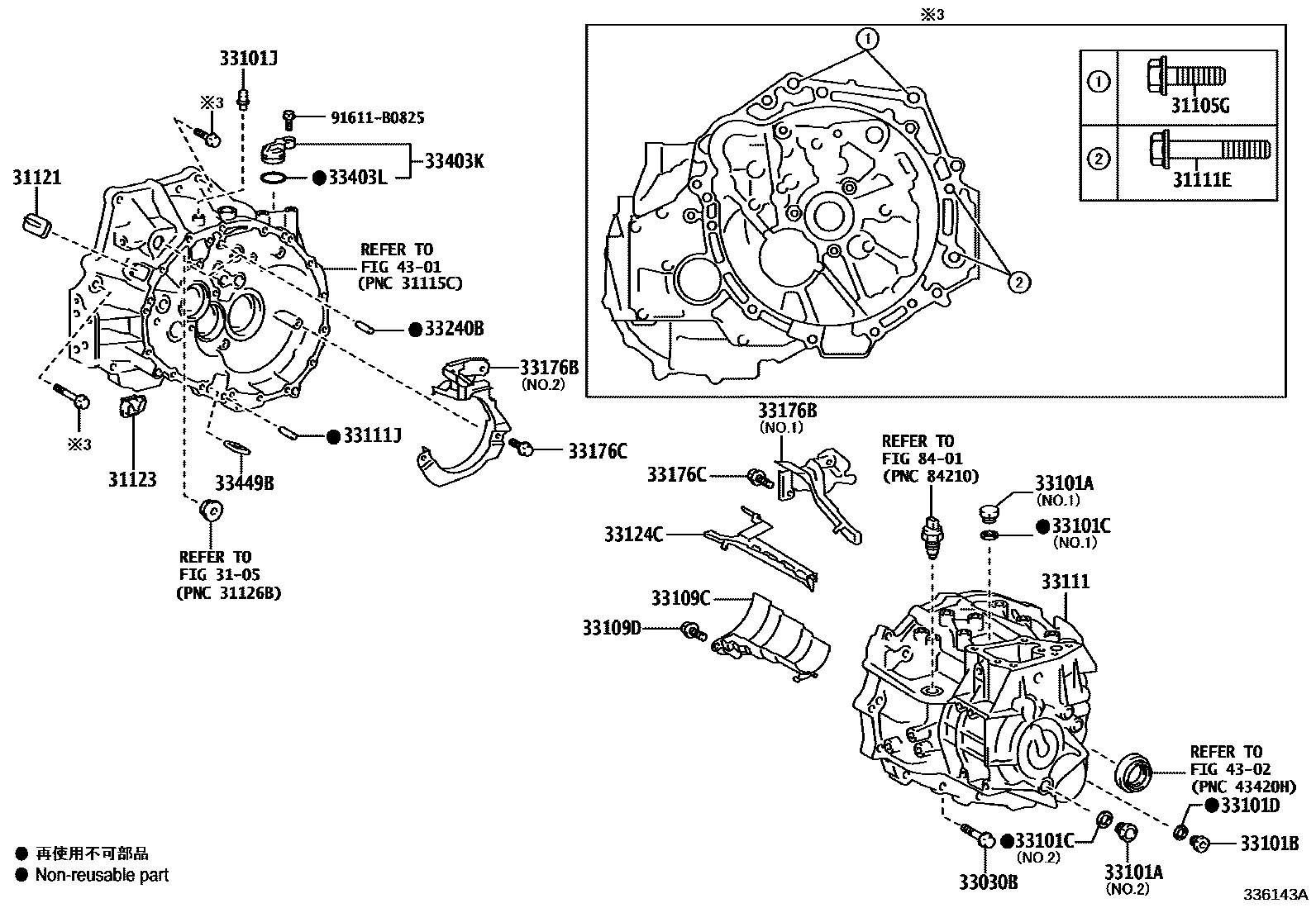

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

3105

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main91552-81245iNSP151..6F..AGT;NSP151..5D..6F..GEN..G201911-202501

*12-1.25PX45-30

31111EBOLT(FOR TRANSAXLE & ENGINE SETTING)

main91552-81280iNSP15#..6F..BZ..R201911-202501

*12-1.25PX80-30

31121COVER, CLUTCH HOUSING, NO.1

main31121-0D060iNSP15#..6F..BZ..R201911-202501

31123COVER, CLUTCH HOUSING, NO.2

main31121-52120iNSP15#..6F..BZ..R201911-202501

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main91551-10840iNSP15#..6F..BZ..R201911-202501

*8-1.25PX40-22

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-14032iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

NO.1

main90341-18033iNSP15#..6F..BZ..R201911-202501

NO.2

33101BPLUG(FOR MANUAL TRANSMISSION DRAIN)

main90341-18023iNSP151..6F..AGT;NSP151..5D..6F..GEN..G201911-202501

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-14003iNSP151..6F..(R,V);NSP151..6F..AGT..G201911-202501

NO.1

main90430-18008iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

NO.2

33101DGASKET(FOR MANUAL TRANSMISSION DRAIN PLUG)

main90430-18008iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

33101JPLUG, BREATHER

main90930-03133iNSP15#..6F..BZ..R201911-202501

33109CSEPARATOR SUB-ASSY, MANUAL TRANSMISSION OIL

main33109-0D020iNSP15#..6F..BZ..R201911-202501

33109DBOLT(FOR MANUAL TRANSMISSION OIL SEPARATOR)

main91551-80816iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

33111CASE, MANUAL TRANSMISSION

main33111-0D132iNSP15#..6F..BZ..R201911-202501

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

L=23,OD=8

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-0D080iNSP15#..6F..BZ..R201911-202501

33176BSEPARATOR, TRANSMISSION OIL(MTM)

main33176-0D040iNSP15#..6F..BZ..R201911-202501

NO.1

main33176-0D050iNSP15#..6F..BZ..R201911-202501

NO.2

33176CBOLT(FOR TRANSMISSION OIL SEPARATOR)

main91551-80816iNSP15#..6F..BZ..R201911-202501

33240BPIN, STRAIGHT(FOR REVERSE SHIFT ARM BRACKET)

main90250-08054iNSP15#..6F..BZ..R201911-202501

33403KCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE

main33403-35230iNSP15#..6F..BZ..R201911-202501

33403LRING, O

main96711-24030iNSP15#..6F..BZ..R201911-202501

33449BMAGNET, TRANSMISSION

main33449-20010iNSP15#..6F..BZ..R201911-202501

4301

4302

8401

91611B0825

main91611-B0825

26 parts on this diagram · 1 diagram in section
