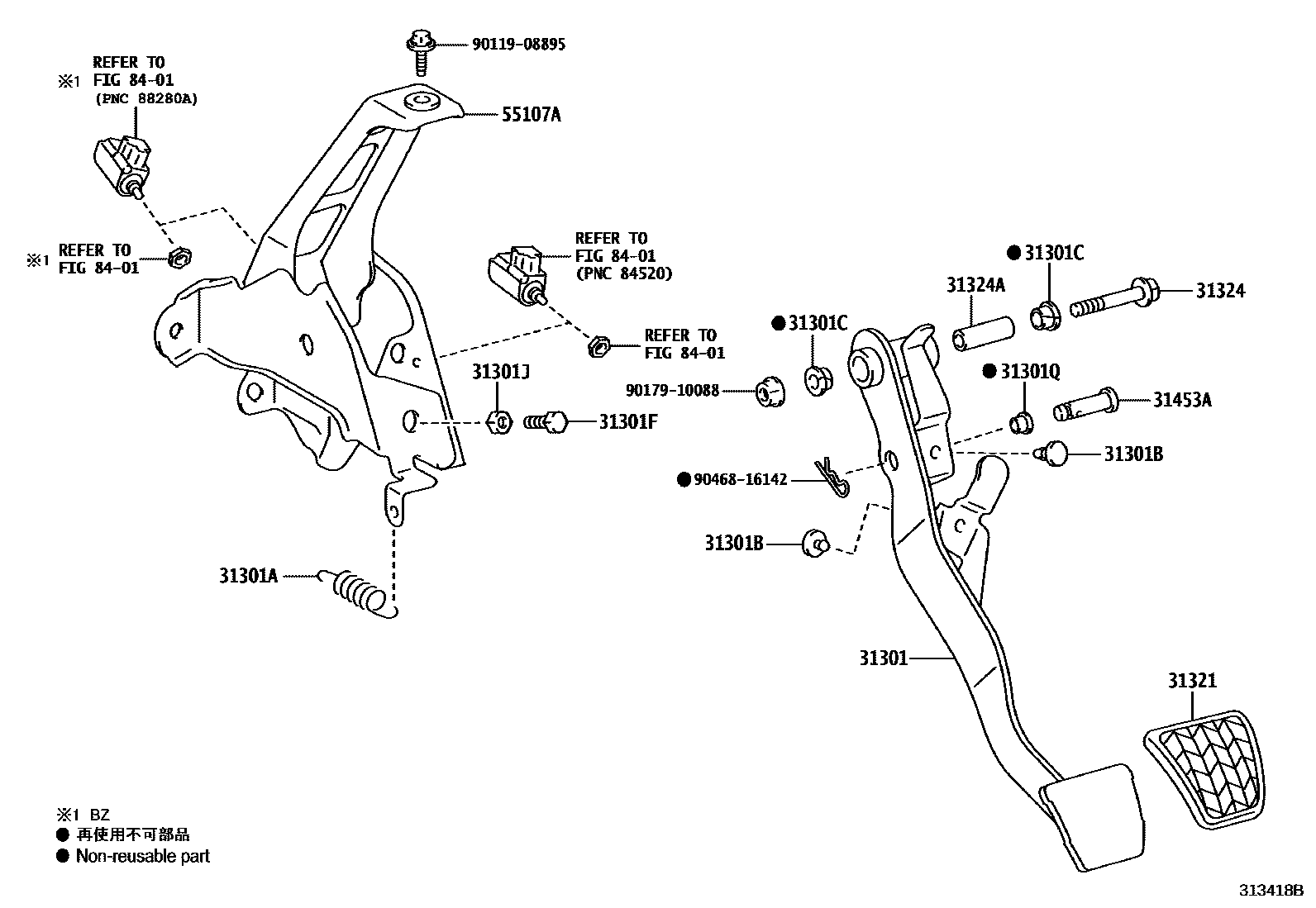

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-0D320iNSP151..6F..AGT;NSP151..5D..6F..GEN..G201911-202501

31301ASPRING(FOR CLUTCH PEDAL)

main90507-14018iNSP15#..6F..BZ..R201911-202501

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iNSP15#..6F..BZ..R201911-202501

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iNSP15#..6F..BZ..R201911-202501

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iNSP15#..6F..BZ..R201911-202501

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iNSP15#..6F..BZ..R201911-202501

31301QBUSH(FOR CLUTCH PEDAL SPRING)

main90386-08002iNSP15#..6F..BZ..R201911-202501

31321PAD, CLUTCH PEDAL

main31321-02010iNSP15#..6F..BZ..R201911-202501

31324SHAFT, CLUTCH PEDAL

main90101-10081iNSP15#..6F..BZ..R201911-202501

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10004iNSP151..5D..6F..D;NSP15#..6F..BZ..(D,G);NSP151..4D..6F..GEN..(D,G)201911-202501

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90249-08051iNSP151..6F..AGT;NSP151..5D..6F..GEN..G201911-202501

L=31.5

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-0D310iNSP15#..6F..BZ..R201911-202104

main55107-0D420iNSP151..6F..AGT;NSP151..5D..6F..GEN..G201911-202501

8401

9011908895

main90119-08895

9017910088

main90179-10088

9046816142

main90468-16142

16 parts on this diagram · 2 diagrams in section
