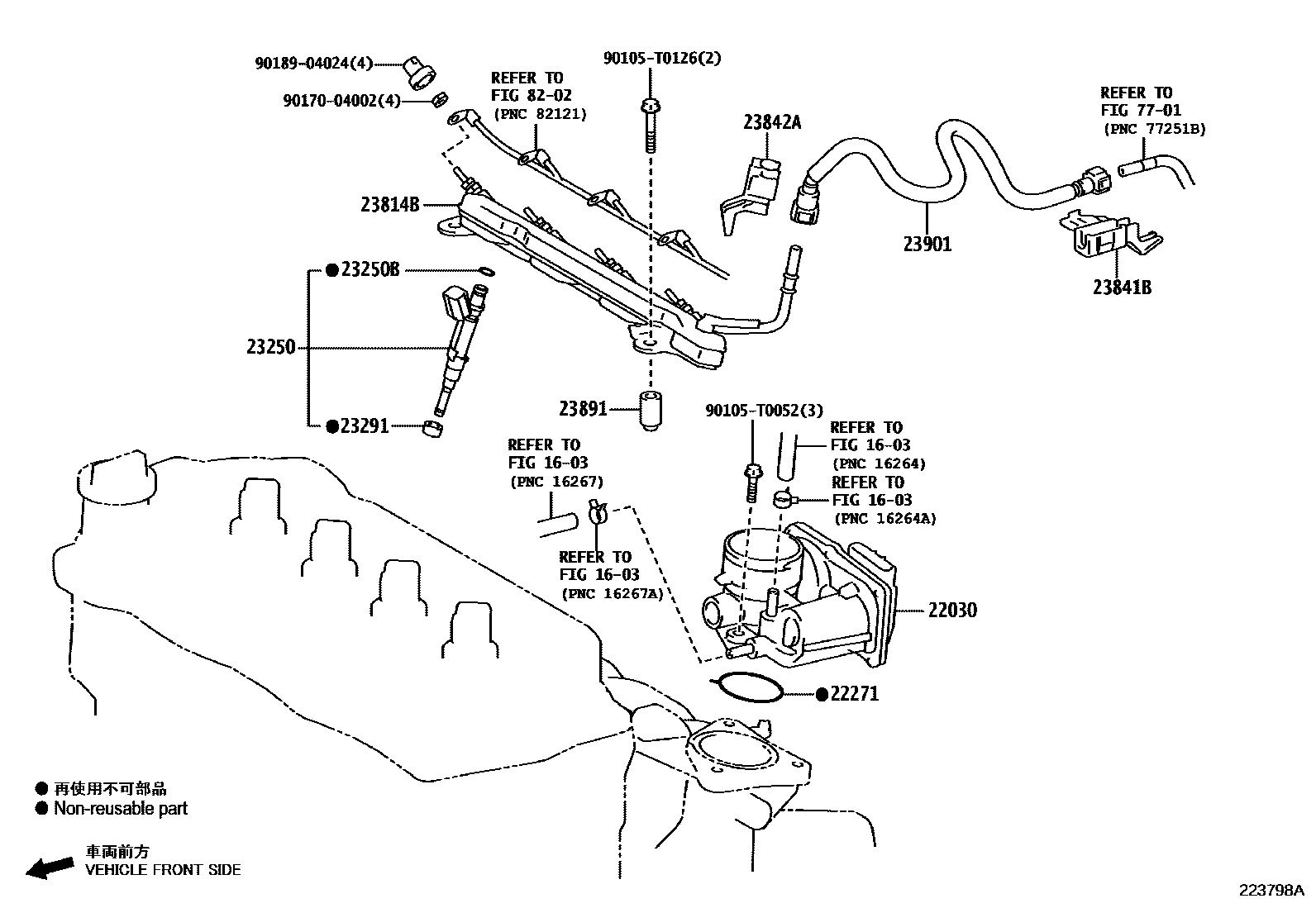

FUEL INJECTION SYSTEM

0001 1 0002 1

1603

22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR

main22030-0Y020i2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

22271GASKET, THROTTLE BODY

main22271-0Y030i2NRFE..NSP151..AGT;2NRFBE..NSP151..CVT;2NRFE..NSP151..5D..6F..GEN..G201911-202501

23250INJECTOR ASSY, FUEL

main23209-49245i2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

main23209-49265i2NRFBE..NSP151..CVT201911-202501

23250BRING, O(FOR FUEL INJECTOR)

main90301-07037i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

23291INSULATOR, INJECTOR VIBRATION

main23291-0Y020i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)201911-202501

23814BPIPE, FUEL DELIVERY

main23807-0Y010i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

main23814-0Y010i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFE..NSP151..4D..CVT..(R,V)201911-202501

23841BCLAMP, FUEL PIPE, NO.1(FOR EFI)

main23841-36020i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)

main23841-36010i1NRFBE..NSP150..CVT;2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);1NRFBE,2NRFBE..NSP15#..6F..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

23891SPACER, FUEL DELIVERY

main23891-47040i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

23901TUBE SUB-ASSY, FUEL

main23901-0Y200i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

7701

8202

90105T0052

main90105-T0052

90105T0126

main90105-T0126

9017004002

main90170-04002

9018904024

main90189-04024

17 parts on this diagram · 2 diagrams in section
