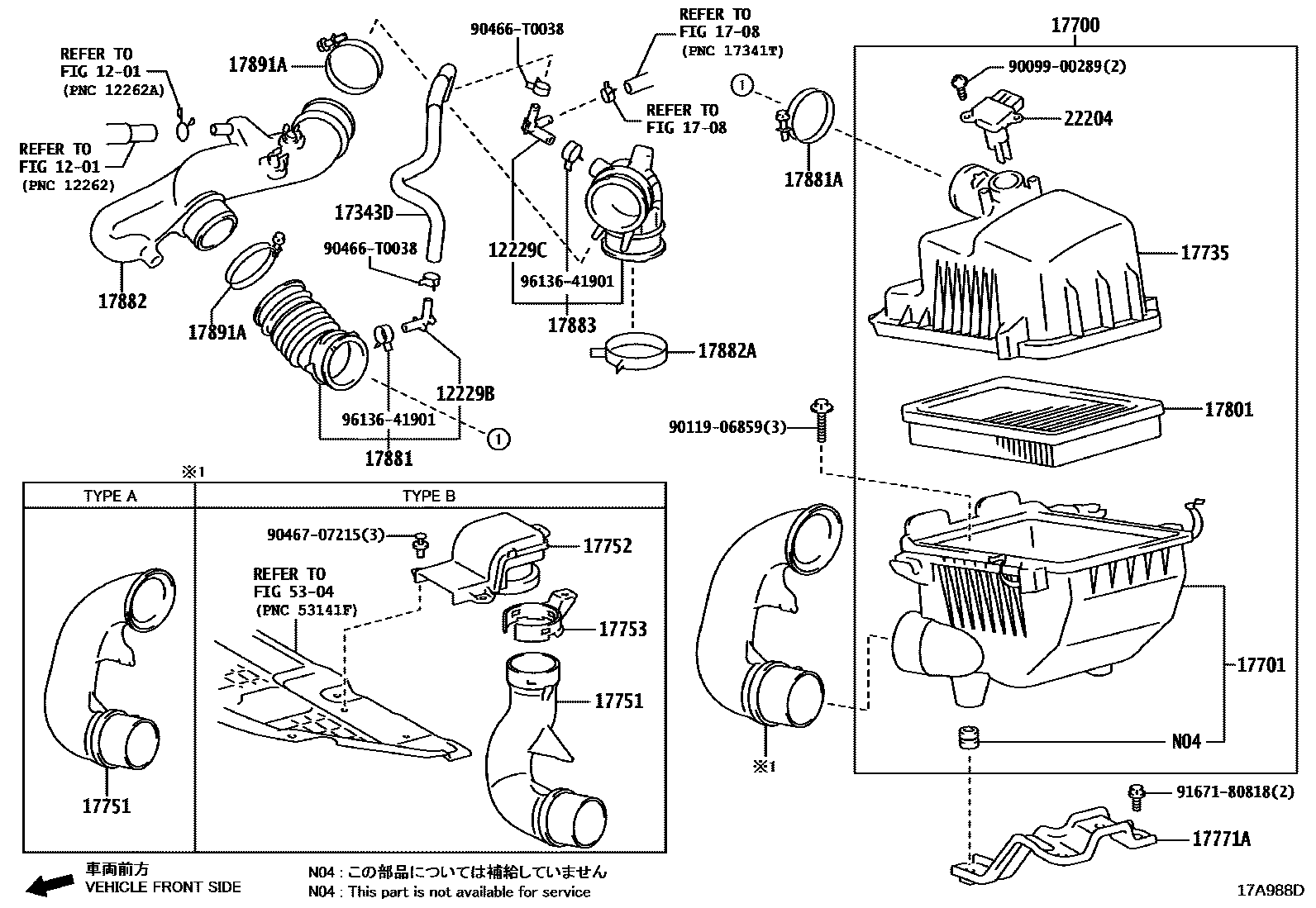

AIR CLEANER

0001 1 0002 1

1201

12229BPIPE, VENTILATION, NO.1

main12229-0Y100i2NRFE..NSP151..CVT..GEN201911-202501

12229CPIPE, VENTILATION, NO.2

main12229-0Y150i2NR#..NSP151..CVT..(AGT,BZ)201911-202501

1708

17343DHOSE, AIR, NO.3

main17343-0Y011i2NR#..NSP151..CVT..(AGT,BZ)201911-202501

17700CLEANER ASSY, AIR

main17700-0Y260i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

17701CASE SUB-ASSY, AIR CLEANER

main17701-0Y190i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

17735CAP, AIR CLEANER

main17735-0Y210i2NRFE..NSP151..5D..CVT..(R,V);2NRFE..NSP151..5D..CVT..AGT..G201911-202501

17751INLET, AIR CLEANER, NO.1

main17751-0Y240i1NRFBE,2NRFBE..NSP15#201911-202501

TYPE A:REFER ILLUST.

main17751-0Y340i2NRFBE..NSP151..CVT;2NRFE..NSP151..5D..6F..GEN..G202012-202501

TYPE B:REFER ILLUST.

main17751-0Y340i2NRFE..NSP151..GEN201912-202012

(L),TYPE B:REF ILL.

main17751-47130i1NRFBE,2NRFBE..NSP15#201912-202012

(J),TYPE B:REF ILL.

sub17751-0Y340

17752INLET, AIR CLEANER, NO.2

main17752-0Y050i2NRFBE..NSP151..CVT..D202012-202501

TYPE B:REFER ILLUST.

main17752-0Y050i2NRFE..NSP151..GEN201912-202012

(L),TYPE B:REF ILL.

main17752-47040i1NRFBE,2NRFBE..NSP15#201912-202012

(J),TYPE B:REF ILL.

sub17752-0Y050

17753INLET, AIR CLEANER, NO.3

main17753-0Y050i2NRFE..NSP151..5D..CVT..GEN..(R,V)202012-202501

TYPE B:REFER ILLUST.

main17753-0Y050i2NRFE..NSP151..GEN201912-202012

(L),TYPE B:REF ILL.

main17753-47030i2NRFE..NSP151..GEN201912-202012

(J),TYPE B:REF ILL.

sub17753-0Y050

17771ABRACKET, AIR CLEANER

main17771-0Y041i1NRFBE..NSP150..CVT;2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);1NRFBE,2NRFBE..NSP15#..6F..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-0Y040i2NRFBE..NSP151..CVT..D201911-202501

17881HOSE, AIR CLEANER, NO.1

main17881-0Y160i2NRFE..NSP151..6F..AGT;2NRFE..NSP151..5D..6F..GEN..G201911-202501

main17881-0Y240i1NRFBE..NSP150..CVT;2NRFE..NSP151..CVT..GEN..(D,G)201911-202501

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main90460-T0017i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

(L)

main96111-10690i1NRFBE..NSP150..CVT;2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);1NRFBE,2NRFBE..NSP15#..6F..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

(J)

17882HOSE, AIR CLEANER, NO.2

main17882-0Y130i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..6F..AGT..G201911-202501

main17882-0Y140i2NRFE..NSP151..4D..CVT..AGT;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)201911-202501

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

17883HOSE, AIR CLEANER, NO.3

main17883-0Y031i2NRFE..NSP151..6F..AGT;2NRFE..NSP151..5D..6F..GEN..G201911-202501

main17883-0Y041i1NRFBE..NSP150..CVT;2NRFE..NSP151..CVT..GEN..(D,G)201911-202501

17891ACLAMP, AIR CLEANER HOSE

main96111-10730i2NRFE..NSP151..AGT;2NRFBE..NSP151..CVT;2NRFE..NSP151..5D..6F..GEN..G201911-202501

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0V010i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

(L)

sub22204-0V020

main22204-28010i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)201911-202501

(J)

5304

9009900289

main90099-00289

9011906859

main90119-06859

90466T0038

main90466-T0038

9046707215

main90467-07215

9167180818

main91671-80818

9613641901

main96136-41901

27 parts on this diagram · 2 diagrams in section
