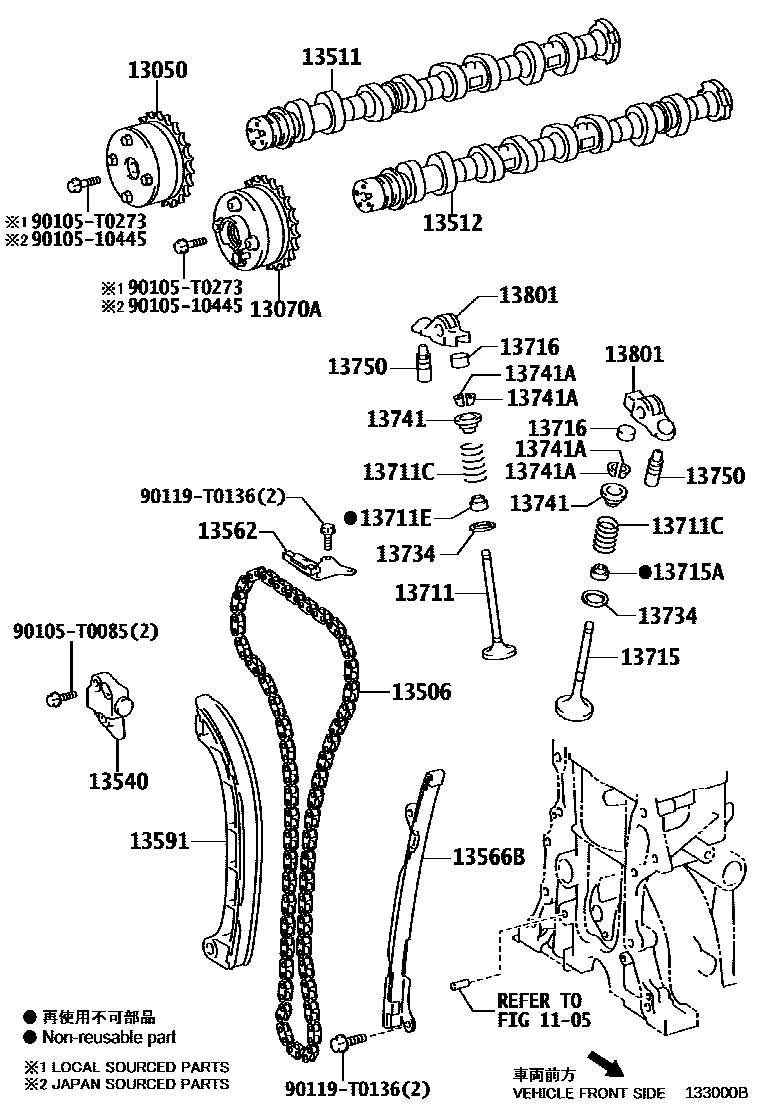

CAMSHAFT & VALVE

1105

13050GEAR ASSY, CAMSHAFT TIMING

main13050-0Y020i2NRFE..NSP151..AGT;2NRFBE..NSP151..CVT¥16,700201911-202501

13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST

main13070-0T011i1NRFBE,2NRFBE..NSP15#..6F..R201911-202406

main13070-0Y020i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)202407-202501

13506CHAIN SUB-ASSY

main13506-0Y040i1NRFBE,2NRFBE..NSP15#..6F..R¥10,400201911-202501

13511CAMSHAFT

main13501-0Y080i2NRFBE..NSP151..CVT201911-202501

main13501-0Y090i2NRFE..NSP151..5D..CVT..(R,V);2NRFE..NSP151..5D..CVT..AGT..G201911-202501

13512CAMSHAFT, NO.2

main13502-0Y070i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)201911-202501

13540TENSIONER ASSY, CHAIN, NO.1

main13540-0Y010i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

13562DAMPER, CHAIN VIBRATION, NO.2

main13562-47020i1NRFBE,2NRFBE..NSP15#..6F..R¥1,060201911-202501

13566BGUIDE, TIMING CHAIN

main13566-0Y010i1NRFBE,2NRFBE..NSP15#..6F..R¥1,120201911-202501

13591ARM, TIMING CHAIN TENSION

main13591-0Y010i1NRFBE,2NRFBE..NSP15#..6F..R¥2,690201911-202501

13711VALVE, INTAKE

main13711-47050i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

13711CSPRING, COMPRESSION(FOR OUTER)

main90501-T0045i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

13711ESEAL, INTAKE VALVE STEM OIL

main90080-31085i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

13715VALVE, EXHAUST

main13715-0Y040i1NRFBE..NSP150;2NRFBE..NSP151..6F;2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)202108-202501

main13715-47050i2NRFE..NSP151;1NRFBE..NSP150..CVT;1NRFBE..NSP150..6F..D;2NRFBE..NSP151..D,G,V;2NRFBE..NSP151..CVT..R201911-202108

13715ASEAL, EXHAUST VALVE STEM OIL

main90080-31084i1NRFBE..NSP150..CVT;1NRFBE,2NRFBE..NSP15#..6F..(D,G)201911-202501

13716CAP, VALVE STEM

main13716-75020i1NRFBE,2NRFBE..NSP15#..6F..R¥70201911-202501

13734SEAT, VALVE SPRING

main13734-0C010i1NRFBE,2NR#..NSP15#¥90201911-202112

main13734-0C010i2NRFE..NSP151..D,G;2NRFBE..NSP151..4D..D;2NRFBE..NSP151..G,R,V;1NRFBE,2NRFE..NSP15#..(AGT,BZ)..(D,R,V)¥90202112-202501

(L)

main13734-62020i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)¥60202112-202501

(J)

13741RETAINER, VALVE SPRING

main13741-0Y010i2NRFE..NSP151..5D..CVT..(R,V);2NRFE..NSP151..5D..CVT..AGT..G¥250202208-202501

(L)

main13741-36010i1NRFBE..NSP150..CVT;1NRFBE,2NRFBE..NSP15#..6F..(D,G)¥160201911-202208

main13741-36010i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)¥160202208-202501

(J)

13741ALOCK, VALVE SPRING RETAINER

main90913-03028i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)¥270201911-202501

13750ADJUSTER ASSY, VALVE LASH

main13750-0Y050i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13801-0Y050i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

9010510445

main90105-10445¥120

90105T0085

main90105-T0085

90105T0273

main90105-T0273

90119T0136

main90119-T0136

25 parts on this diagram · 1 diagram in section
