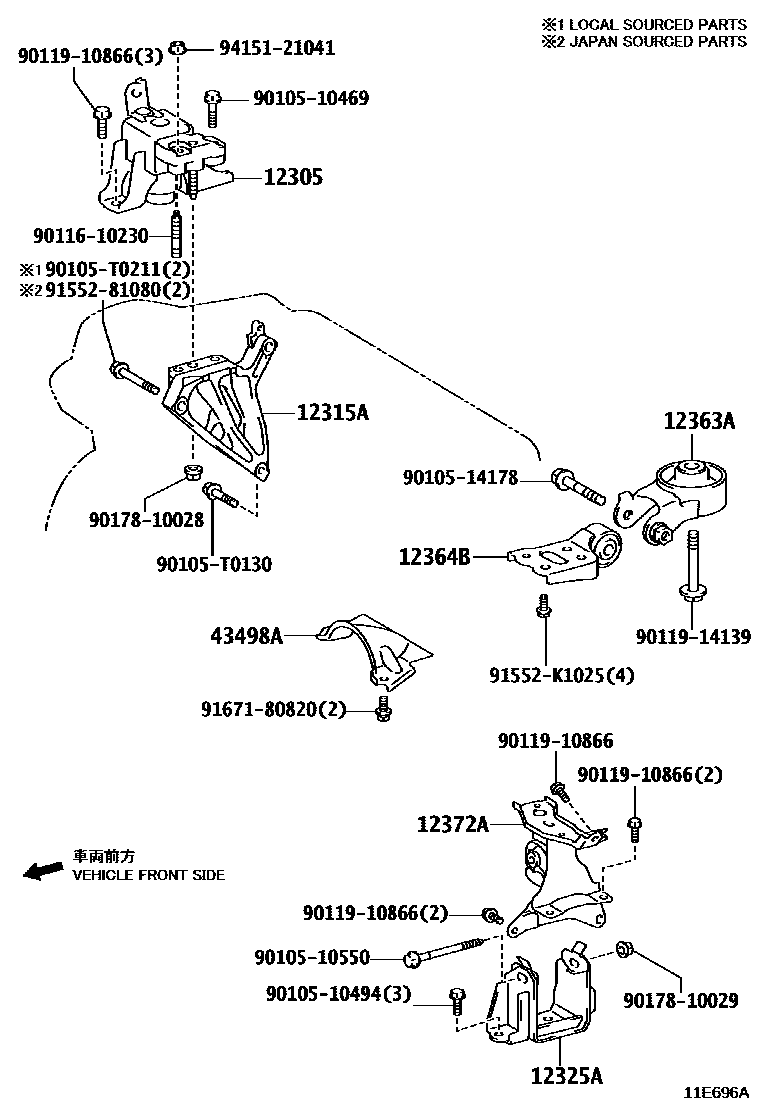

MOUNTING

0001 1 0002 1

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0Y170i2NRFE..NSP151..AGT;2NRFBE..NSP151..CVT;2NRFE..NSP151..5D..6F..GEN..G202111-202501

main12305-0Y190i1NRFBE,2NRFBE..NSP15#..6F..R201911-202111

sub12305-0Y170

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-0Y060i1NRFBE..NSP150..CVT;1NRFBE,2NRFBE..NSP15#..6F..(D,G)201911-202501

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12304-0Y150i2NRFE..NSP151..5D..6F..D;1NRFBE,2NRFBE..NSP15#..6F..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

main12325-0Y350i2NRFE..NSP151..4D..CVT..AGT;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)201911-202501

12363AROD, ENGINE MOVING CONTROL

main12363-0Y230i2NRFE..NSP151..5D..CVT..(R,V);2NRFE..NSP151..5D..CVT..AGT..G201911-202501

main12363-0Y260i2NRFE..NSP151..6F..AGT;2NRFE..NSP151..5D..6F..GEN..G201911-202501

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0Y140i2NRFE..NSP151..5D..CVT..(R,V);2NRFE..NSP151..5D..CVT..AGT..G201911-202501

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0Y290i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

main12372-0Y300i1NRFBE..NSP150..CVT;2NRFE..NSP151..CVT..GEN..(D,G)201911-202501

43498AINSULATOR, DRIVE SHAFT HEAT, NO.1

main43498-0D110iNSP150;NSP151..4D..D;NSP151..4D..GEN..G;NSP151..5D..GEN..(D,G);NSP151..(AGT,BZ)..(G,R,V)201911-202501

9010510469

main90105-10469

9010510494

main90105-10494

9010510550

main90105-10550

9010514178

main90105-14178

90105T0130

main90105-T0130

90105T0211

main90105-T0211

9011610230

main90116-10230

9011910866

main90119-10866

9011914139

main90119-14139

9017810028

main90178-10028

9017810029

main90178-10029

9155281080

main91552-81080

91552K1025

main91552-K1025

9167180820

main91671-80820

9415121041

main94151-21041

22 parts on this diagram · 2 diagrams in section
