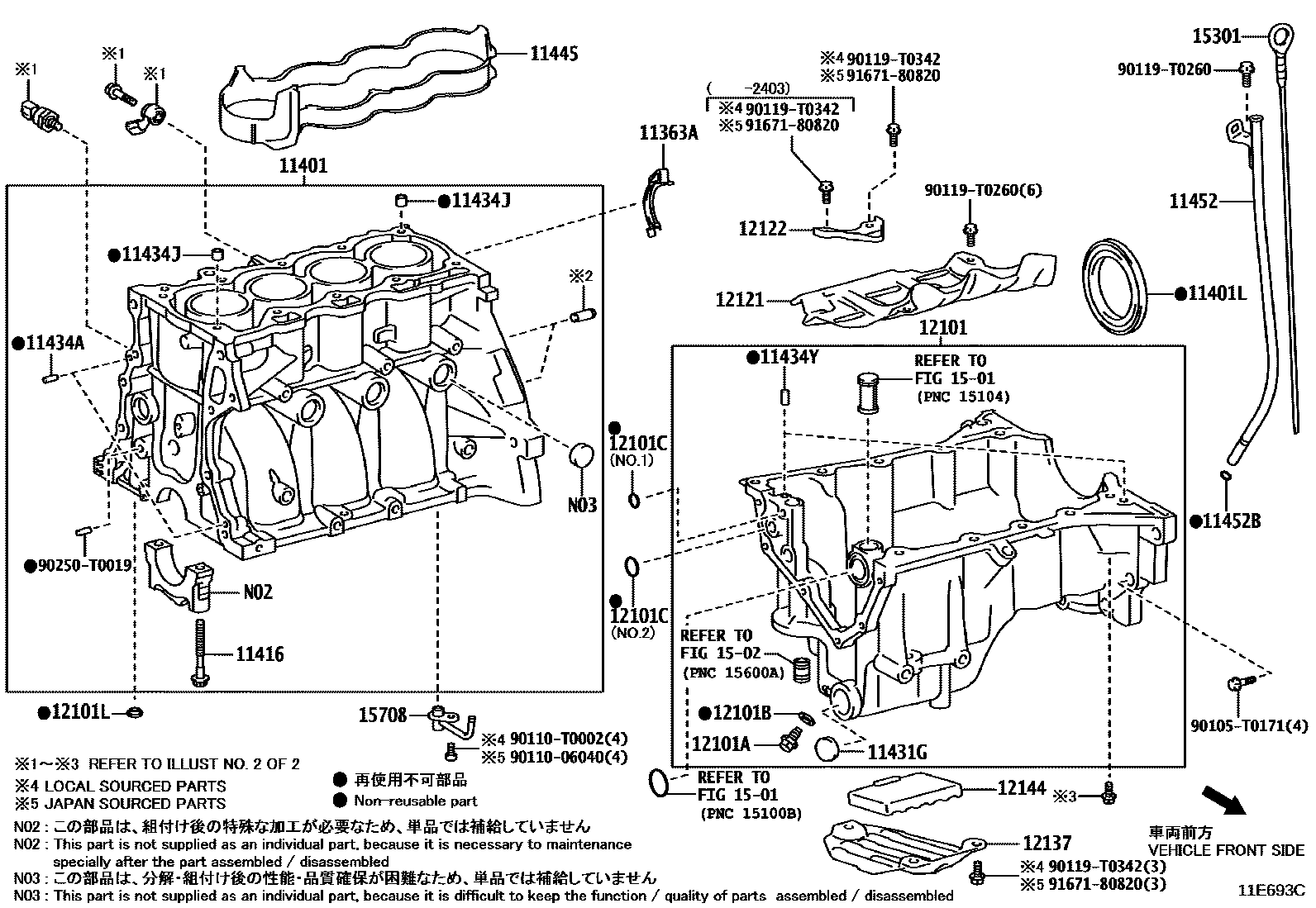

CYLINDER BLOCK

0001 1 0002 1

11363ACOVER, FLYWHEEL HOUSING SIDE

main11363-0Y040i2NRFE..NSP151..AGT;2NRFBE..NSP151..CVT;2NRFE..NSP151..5D..6F..GEN..G201911-202501

11401BLOCK SUB-ASSY, CYLINDER

main11410-09725i2NRFE..NSP151..5D..CVT..(R,V);2NRFE..NSP151..5D..CVT..AGT..G202108-202501

main11410-09725i2NRFBE..NSP151..6F..R201911-202108

(L)

main11410-09735i1NRFBE..NSP150..6F..R201911-202108

(L)

main11410-09735i1NRFBE..NSP150202108

main11410-49057i1NRFBE..NSP150..6F..R201911-202108

(J)

main11410-49085i2NRFBE..NSP151..6F..R202003-202108

(J)

main11410-49095i2NR#..NSP151201911-202002

(J)

sub11410-49085

11401LSEAL, ENGINE REAR OIL

main90311-T0074i1NRFBE..NSP150..CVT;1NRFBE,2NRFBE..NSP15#..6F..(D,G)201911-202501

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02175i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

(J)

main90910-T2013i1NRFBE..NSP150..CVT;2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);1NRFBE,2NRFBE..NSP15#..6F..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

(L)

main90910-T2013i2NRFBE..NSP151..CVT..D202201-202208

11431GPLUG, TIGHT

main96411-42500i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-04097i2NRFE..NSP151..AGT;2NRFBE..NSP151..CVT201911-202501

L=12,OD=4.0

11434JPIN, RING (FOR CYLINDER HEAD SET)

main90253-13017i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

11434YPIN, STRAIGHT(FOR OIL PAN)

main90250-08120i2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

11445SPACER, CYLINDER BLOCK WATER JACKET

main11445-0Y020i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

11452GUIDE, OIL LEVEL GAGE

main11452-0Y020i1NRFBE,2NRFBE..NSP15#..6F..R201911-202409

main11452-0Y080i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)202410-202501

11452BRING, O(FOR OIL LEVEL GAGE GUIDE)

main90301-T0060i1NRFBE..NSP150..CVT;1NRFBE,2NRFBE..NSP15#..6F..(D,G)201911-202501

12101PAN SUB-ASSY, OIL

main12101-0Y060i2NRFE..NSP151..AGT;2NRFBE..NSP151..CVT201911-202501

12101APLUG(FOR OIL PAN DRAIN)

main90341-12032i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12031i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

12101CRING, O(FOR OIL PAN)

main90301-T0055i1NRFBE..NSP150..CVT;1NRFBE,2NRFBE..NSP15#..6F..(D,G)201911-202501

NO.1:REFER ILLUST.

main90301-T0057i2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

NO.2:REFER ILLUST.

12101LGASKET NO.1(FOR OIL PAN)

main90430-T0023i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

12121PLATE, OIL PAN BAFFLE, NO.1

main12121-0Y050i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

12122PLATE, OIL PAN BAFFLE, NO.2

main12122-0Y010i1NRFBE,2NRFBE..NSP15#..6F..R201911-202403

main12122-0Y011i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)202403-202501

12137PROTECTOR, OIL PAN

main12137-0Y010i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

12144SILENCER, OIL PAN COVER

main12144-47020i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

1501

1502

15301GAGE SUB-ASSY, OIL LEVEL

main15301-0Y080i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-0Y040i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

90105T0171

main90105-T0171

9011006040

main90110-06040

90110T0002

main90110-T0002

90119T0260

main90119-T0260

90119T0342

main90119-T0342

90250T0019

main90250-T0019

9167180820

main91671-80820

31 parts on this diagram · 2 diagrams in section
