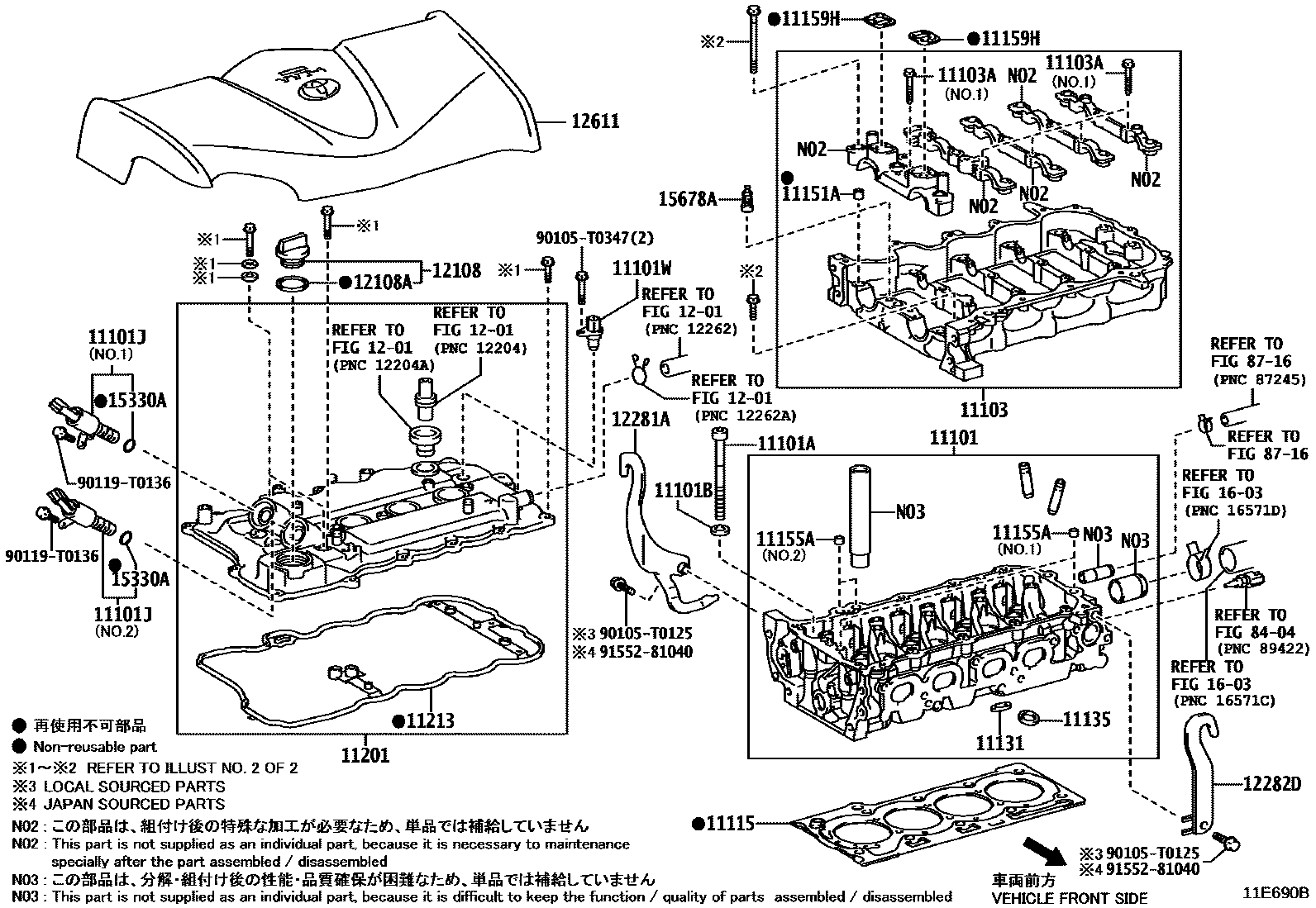

CYLINDER HEAD

0001 1 0002 1

11101HEAD SUB-ASSY, CYLINDER

main11101-09595i2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

11101ABOLT(FOR CYLINDER HEAD SET)

main90910-02174i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)202208-202501

(J)

main90910-T2012i2NRFE..NSP151..5D..CVT..(R,V);2NRFE..NSP151..5D..CVT..AGT..G202208-202501

(L)

main90910-T2012i1NRFBE,2NRFBE..NSP15#..6F..R201911-202208

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-10344i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL

main15330-0Y090i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

NO.1:REFER ILLUST.

main15330-0Y100i2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

NO.2:REFER ILLUST.

11101WSENSOR, CRANK POSITION, NO.1

main90919-T5002i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

11103HOUSING SUB-ASSY, CAMSHAFT

main11103-0Y080i2NRFE..NSP151..5D..6F..GEN..G201911-202501

11103ABOLT(FOR CAMSHAFT HOUSING SET)

main90105-T0271i2NRFBE..NSP151..CVT..D201911-202501

NO.2:REFER ILLUST.

main90119-07009i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

(J),NO.1:SEE ILLUST

main90119-T0443i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

(L),NO.1:SEE ILLUST

11115GASKET, CYLINDER HEAD

main11115-0Y030i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)201911-202501

11131SEAT, INTAKE VALVE

main11131-47050i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

STD

11135SEAT, EXHAUST VALVE

main11135-47020i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

STD

11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)

main90253-13005i2NRFBE..NSP151..CVT..D201911-202501

L=12.5,OD=8

11155APIN, RING W/HEAD

main90253-11004i2NRFE..NSP151..AGT;2NRFBE..NSP151..CVT201911-202501

NO.1:REFER ILLUST.

main90253-12002i2NRFE..NSP151..5D..6F..D;2NRFE..NSP151..CVT..GEN..(D,G);2NRFE..NSP151..4D..6F..GEN..(D,G)201911-202501

NO.2:REFER ILLUST.

11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE

main11159-0Y020i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)201911-202501

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-0Y070i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

11213GASKET, CYLINDER HEAD COVER

main11213-0Y030i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)201911-202501

1201

12108CAP SUB-ASSY, OIL FILLER

main12180-0Y040i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

12108AGASKET(FOR OIL FILLER CAP)

main90430-T0013i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

12281AHANGER, ENGINE, NO.1

main12281-0Y070i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

12282DHANGER, ENGINE, NO.2

main12282-0Y060i1NRFBE,2NRFBE..NSP15#..6F..R201911-202402

main12282-BZ200i2NRFE..NSP151..6F..(R,V);2NRFE..NSP151..5D..6F..G;2NRFE..NSP151..4D..AGT..G;2NRFBE..NSP151..CVT..(G,R,V);2NRFE..NSP151..4D..CVT..(R,V)202402-202501

12611COVER, ENGINE, NO.1

main12611-0Y110i2NRFE..NSP151..AGT;2NRFBE..NSP151..CVT..(G,V)201911-202501

15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)

main90068-14030i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

sub90099-14137

15678AFILTER, OIL CONTROL VALVE

main15678-0Y010i1NRFBE,2NRFBE..NSP15#..6F..R201911-202501

1603

8404

8716

90105T0125

main90105-T0125

90105T0347

main90105-T0347

90119T0136

main90119-T0136

9155281040

main91552-81040
